PT100-S Waterproof 1m 30mm Probe PTFE FTARP05 Stainless Steel Pole Probe Temperature Sensor

Features:

1. Connector Type: K Type
2.  Cable length: 1M
3.  Interface Type: flat plug-in
4. Interface Length: 12.5MM
5. Color: Yellow
6. Accuracy : ±2.5%/0.75%
7. Material: Plastic

• KTY84-130/150 Temperature Element
• Riveting Point :Copper rivet 2*0.2
• Size:3*30mm Shrink Tube
• Cable:UL1332 AWG24 200C Simplex  Red Color
• Cable:UL1332 AWG24 200C Simplex  black Color

Features

• Resistance at 25 degrees C: 10K +- 1%
• B-value (material constant) = 3950+- 1%
• Dissipation factor (loss-rate of energy of a mode of oscillation) δ th = (in air)approx.7.5mW/K
• Thermal cooling time constant <= (in air) 20 seconds
• Thermistor temperature range -55 °C to 125 °C

Features:

• Suitable for narrow space
• Rapid response time
• Elastic and solder easily
• The TJ thermistor possesses ultra thinness of 500μm and superior electrical insulation, it is possible to use with safety in ambiance where might contact with electrodes
• Film-coated, excellent insulation and heat-resistive
  Sensitive to environmental sensing
• Length options: 25, 28, 32 and 50mm
• Compliant with the RoHS Directives

Specifications:

1. Rated Power (W): 1500W
2. Rated Current: 10 Amp Max.
3. Measurement Input: NTC10K
4. Temperature Measuring Range: 50~110°C
5. Temperature Control Range: 50~110°C
6. Control Accuracy: Upto 0.1℃
7. Measuring Accuraccy: ± 0.2 ℃
8. Temp Probe Cable Length: 1 Meter
9. Dimensions (mm) LxWxH: 60 x 45 x 31

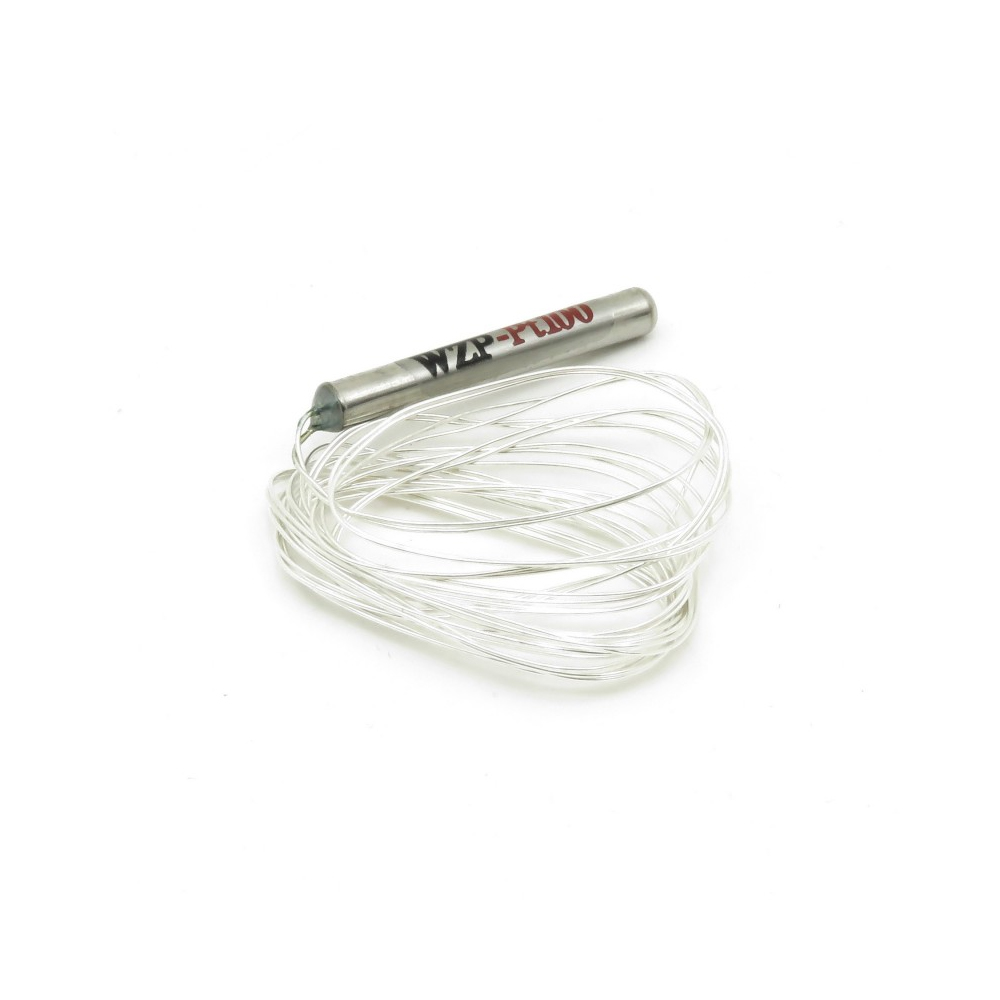

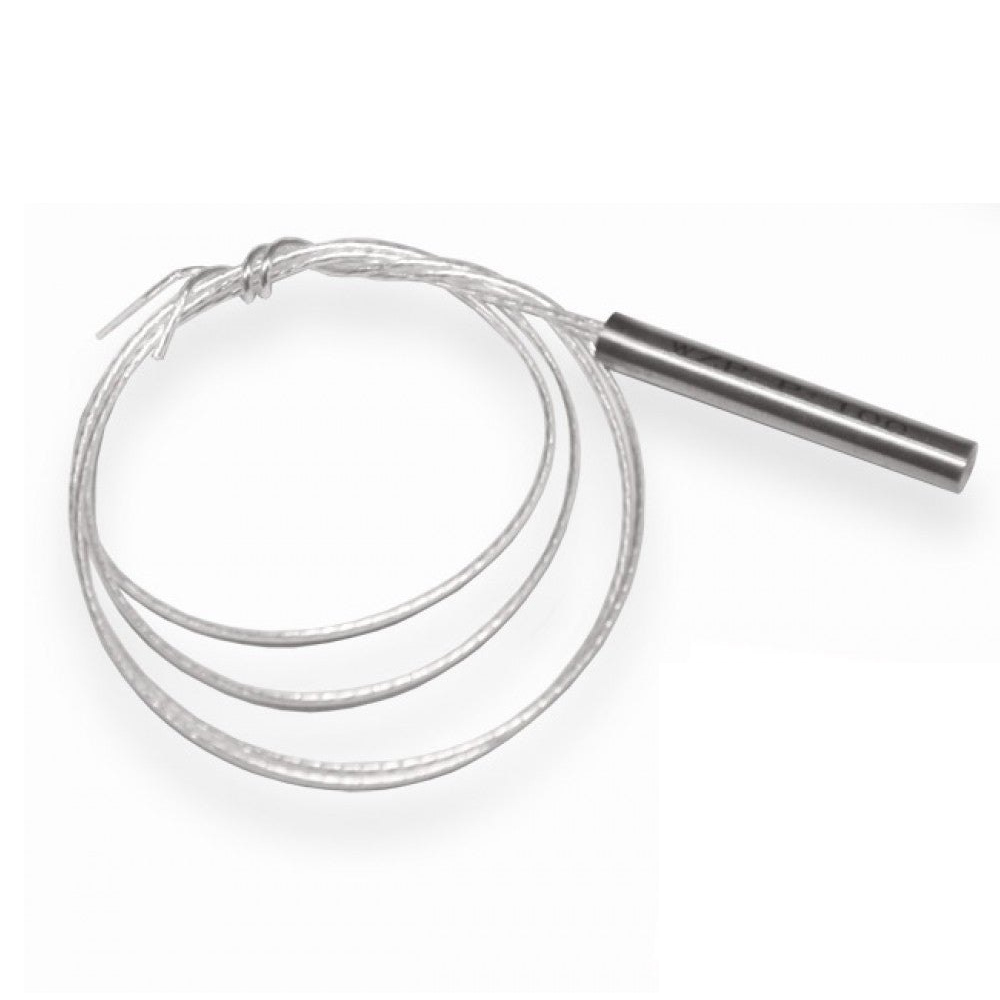

1. Model number: FTARP05 series.
2. Mounting form Polish rod probe
3. The Probe material: Stainless steel.
4. Probe diameter: 4mm.
5. Length of the probe: 30mm.
6. Cabel material Silver plated copper (not insulated), PTFE Silver plated copper (Waterproof, insulated).
7. Accuracy ±(0.3°C+0.5%|t|).
8. Thermal response time: <0.5 sec.
