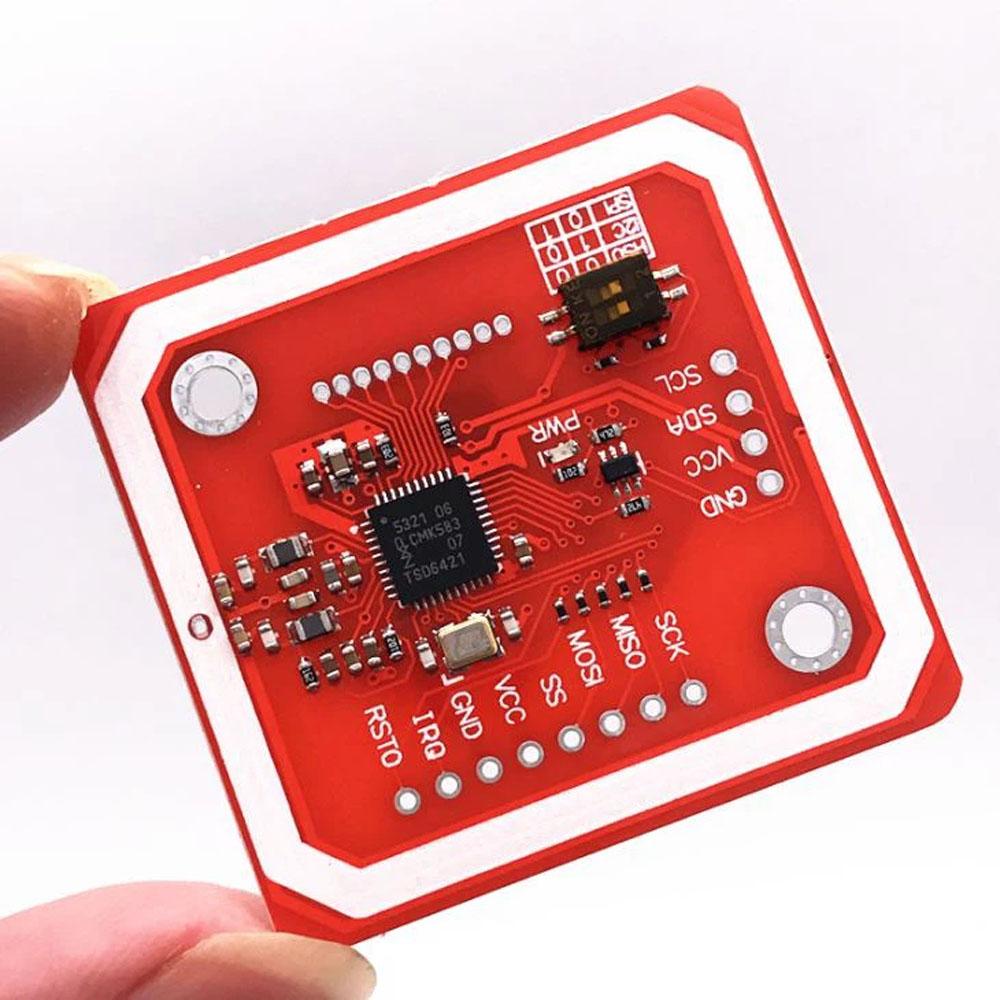

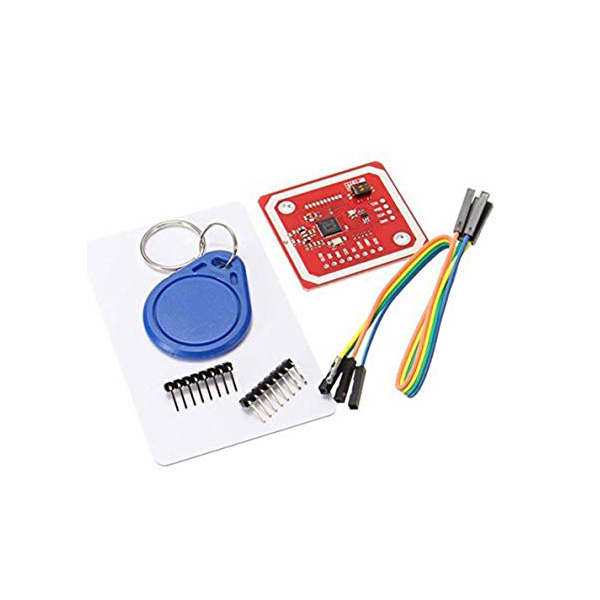

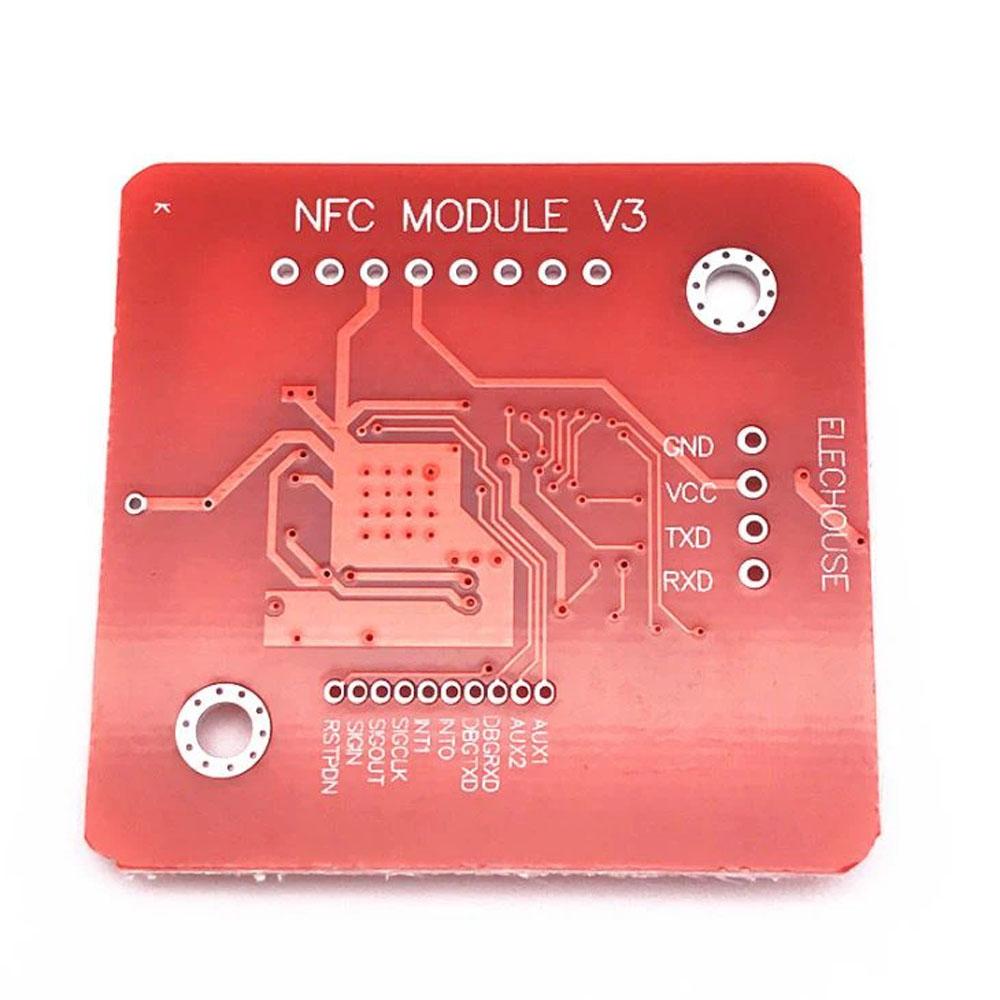

PN532 NFC RFID module V3, NFC with Android phone extension of RFID provide Schematic and library

590.00 (Inc. GST)500.00 (+18% GST Extra)

Specifications:

  1. Easy to change mode: with a small SMD toggle Switch, it becomes very easy to change among IIC, SPI, and HSU modes
  2. Longer distance: the reading distance becomes 5~7cm, compared with 4~6 cm of the last version
  3. Built-in PCB Antenna, with 5cm~7cm communication distance
  4. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  5. Work as an RFID reader/writer
  6. Work as a 1443-A card or a virtual card
  7. Compatiable with Arduino Board.

In stock

Compare
SKU: RDNA-L5.22 Category:

Share this product

Description

The PN532 is a highly integrated transmission module for contactless communication at 13.56 MHz including microcontroller functionality based on an 80C51 core with 40 Kbytes of ROM and 1 Kbytes of RAM. The PN532 combines a modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz with an easy-to-use firmware for the different supported modes and the required host controller interfaces.

It works as an RFID reader/writer,1443-A card, or a virtual card and also supports NFC with Android phones. It is also compatible with Arduino.

Features:

  1. Support II2, SPI and HSU (High-Speed UART)
  2. Module Size: 42.7mm x 40.4mm x 4mm
  3. I2C / UART: 3.3V ~ 24V TTL
  4. SPI: 3.3V TTL with 100-ohm resistors in series
  5. Communication distance: 5cm~7cm
  6. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  7. Work in NFC Mode or RFID reader/writer Mode
  8. RFID reader/writer supports:
  9. Plug and play, compatible
  10. Built-in PCB Antenna, with 4cm~6cm communication distance
  11. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  12. Work as an RFID reader/writer
  13. Work as a 1443-A card or a virtual card
  14. Exchange data with other NFC devices such as a smartphone

Refer to the Datasheet below for more detail.

Datasheet available here.
