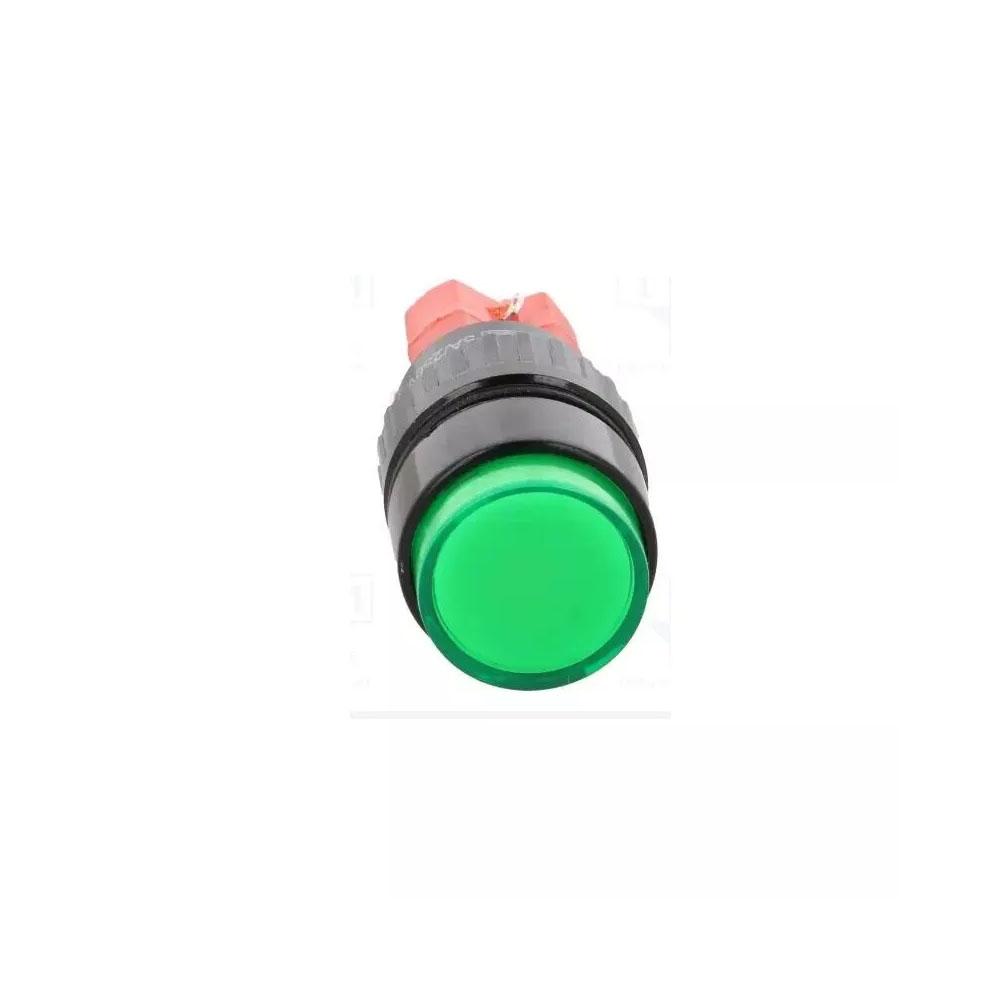

ONPOW 16mm Round Push Button Switch green

ONPOW 16mm Round Push Button Switch (LAS1Y-11/g/24V, CE, CCC, UL, VDE, RoHS, REECH)

Specifications:

Manufacturer ONPOW
Type of switch push-button
Number of positions 2
Contacts configuration SPDT
AC contacts rating @R
(at resistive load) 3A / 220V AC
DC contacts rating (at resistive load) 2A / 24V DC
Switching method: ON-ON
Backlight colour green
IP rating IP40
Illumination LED 24V AC/DC
Leads for soldering
Operating temperature -25…55°C
Button shape prominent, round
Mounting hole diameter Ø16mm
Body colour black
Actuator colour green
Mounting on panel
Stable positions number 2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹413.00 (Inc. GST)
₹350.00 (+18% GST Extra)

Available on backorder

Compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

LAS1 series:
The product has stable property,small contact resistance,strong insulationg resistance,anti-virbration and soon.It meets to standards of IEC60947-5-1,gb14048.5 etc.
The switch have the advantage of fast-break and self-cleaning,and each of them contains 1NO and 1NC terminal.Every pushbutton also can possess from one to four switch units.
