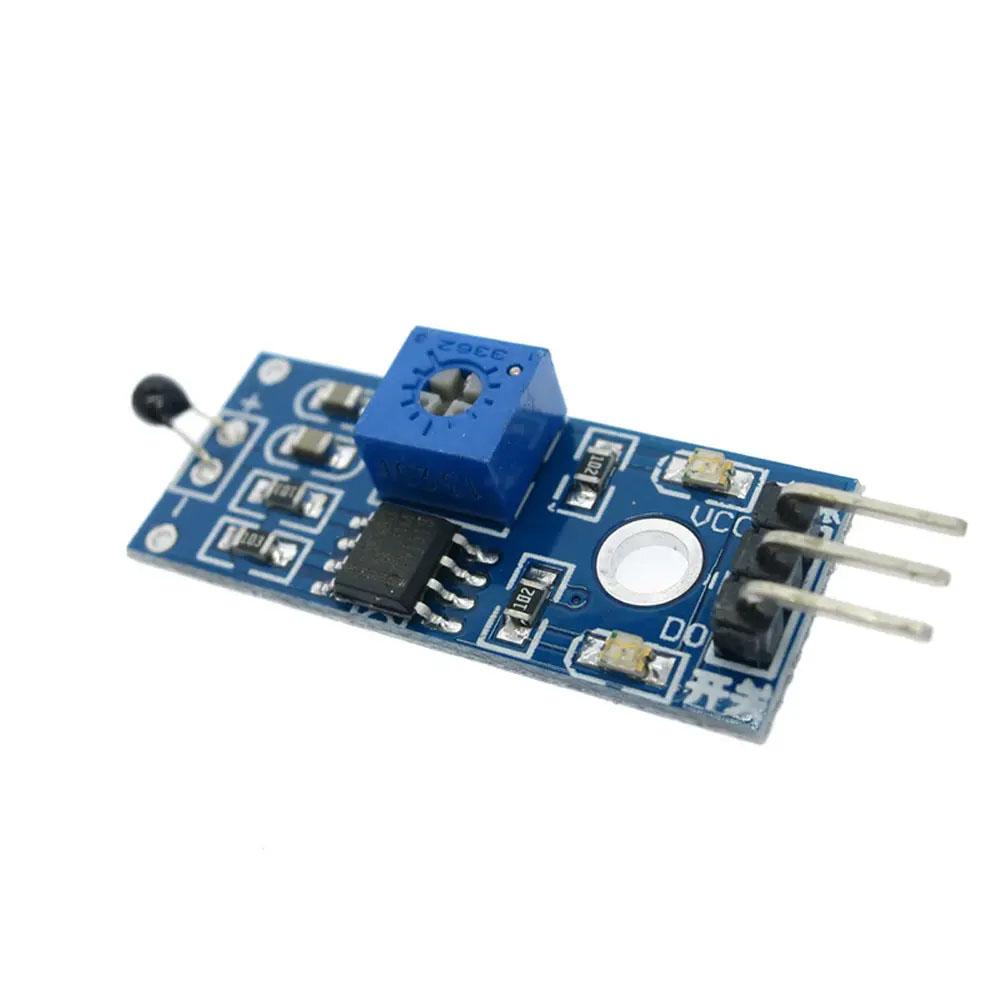

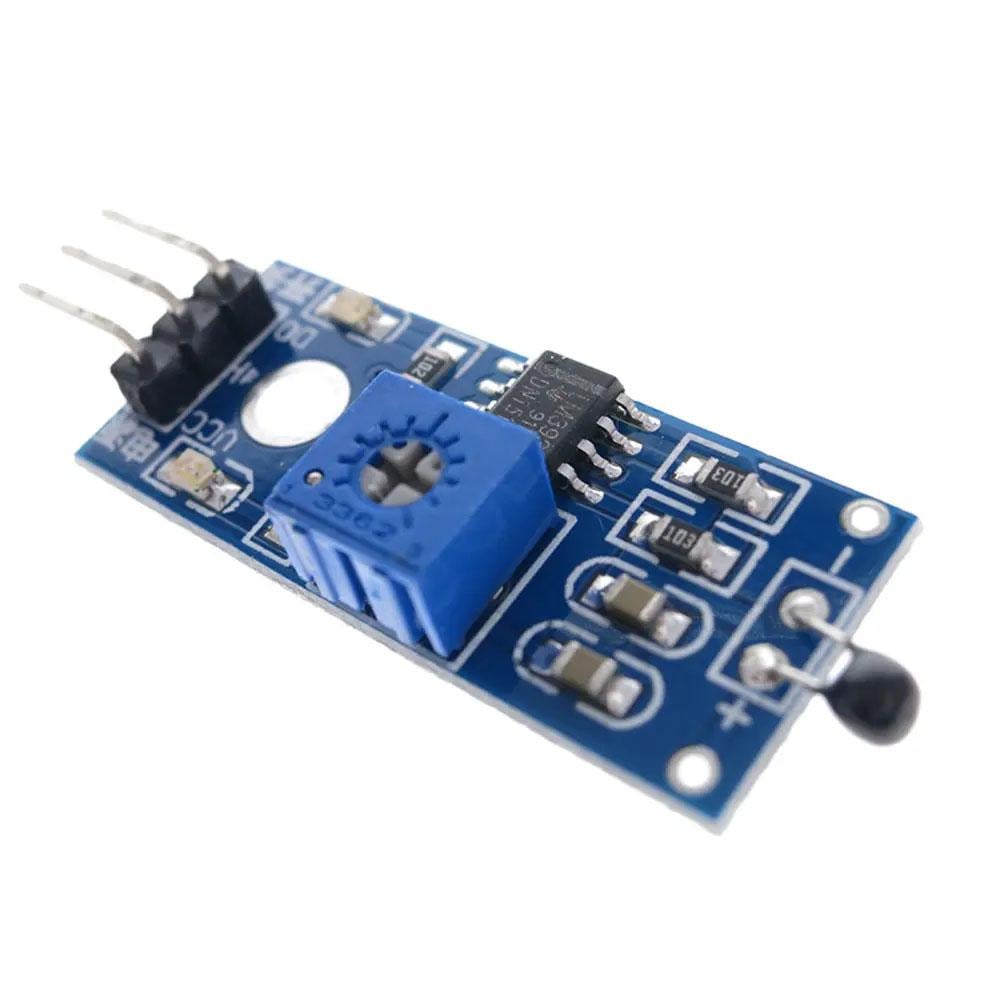

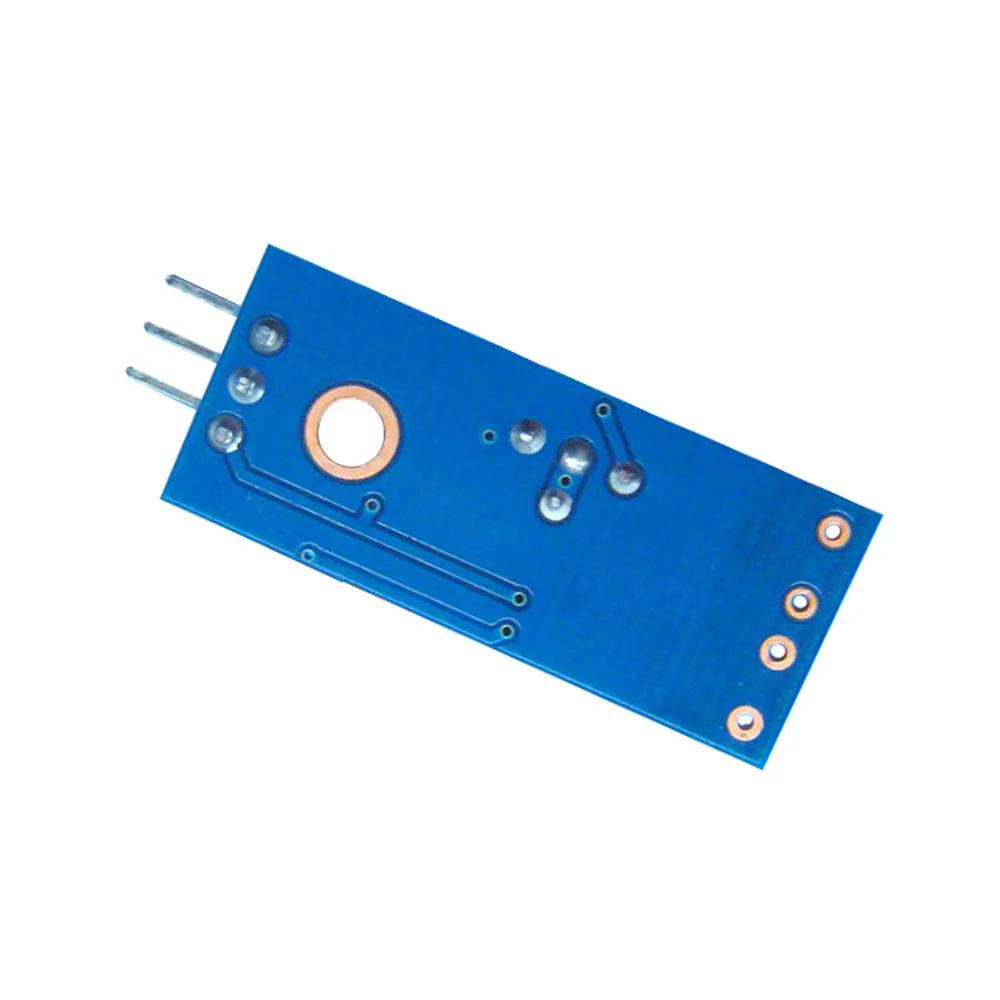

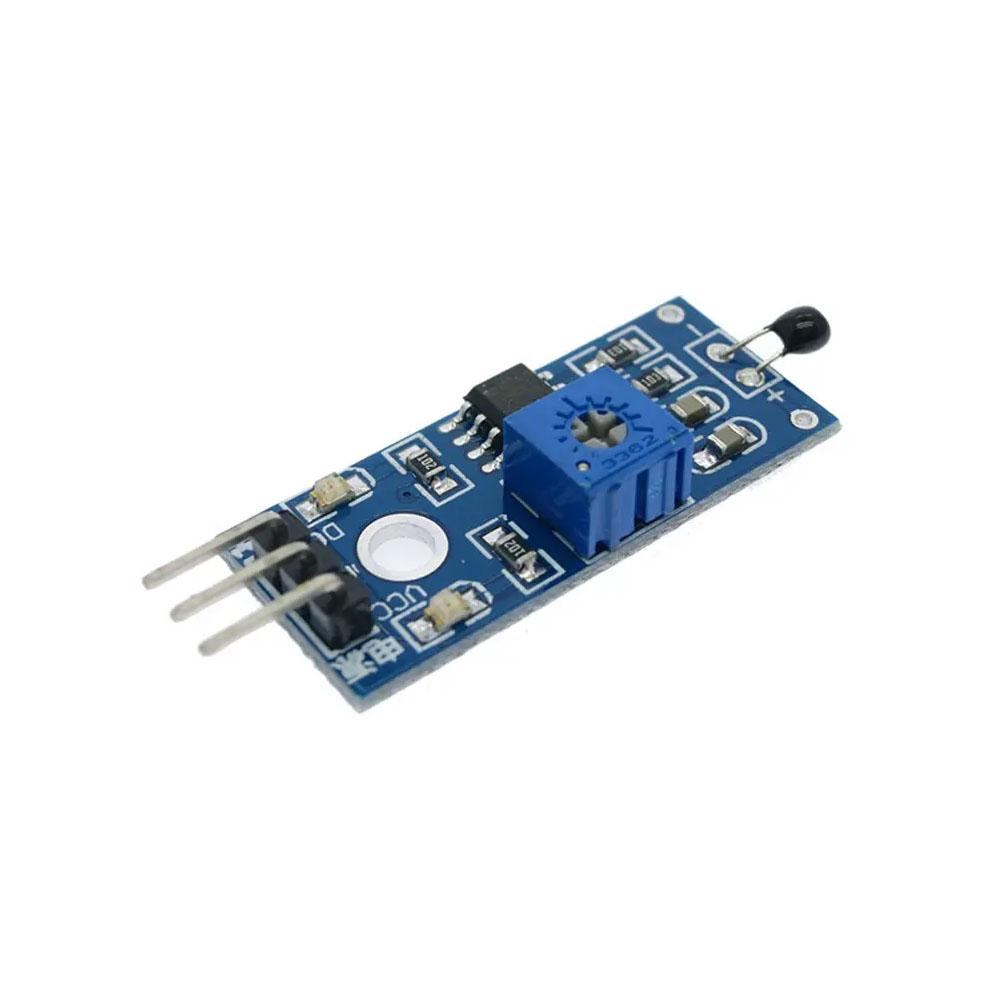

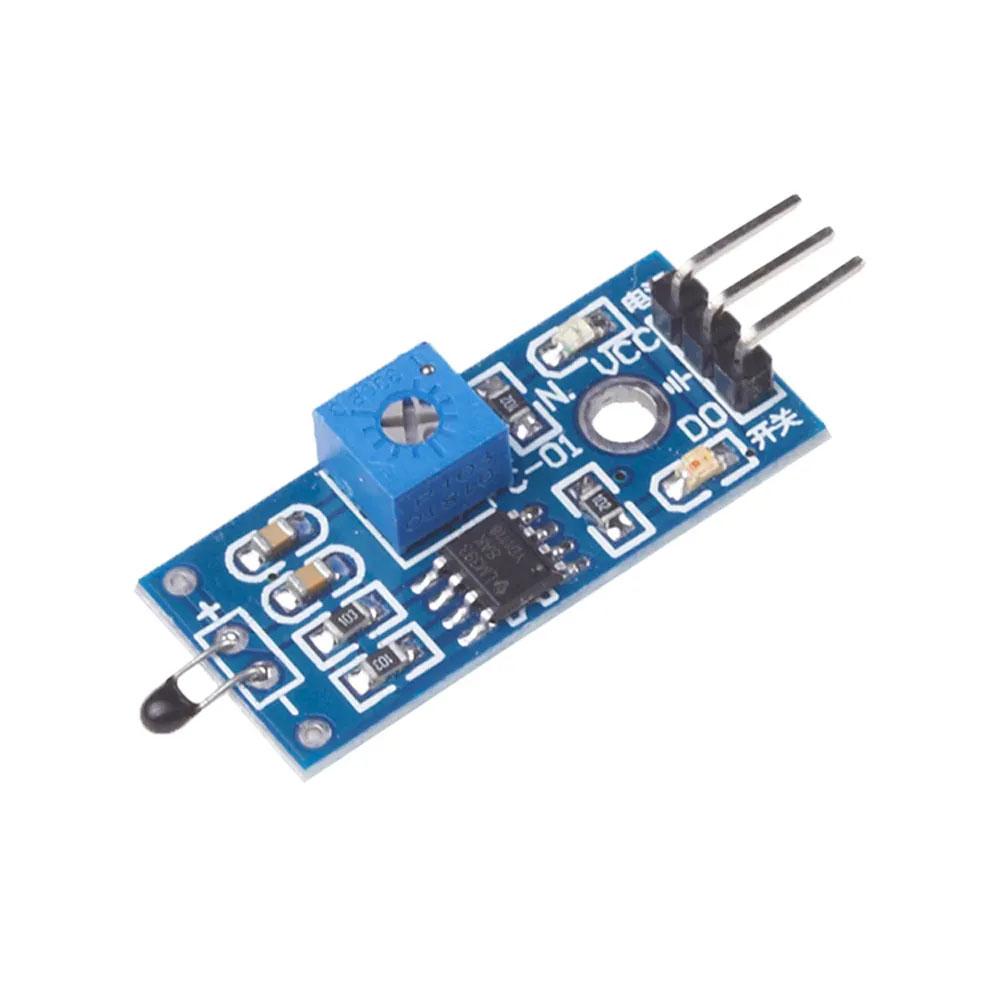

NTC Thermistor Temperature Module

Specifications:

NTC thermistor sensor, good sensitivity
The comparator output signal is more than 15mA.
Possible to adjust the temperature distribution position detection threshold
Working voltage: 3.3V-5V
Output form: DO digital switching outputs (0 and 1) and AO analog voltage output
Fixed bolt hole for easy installation
Small PCB board size: 3.2cm x 1.4cm
uses a wide voltage comparator LM393
Compatible with arduino .

SKU: RDNA-277

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹59.00 (Inc. GST)
₹50.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

NTC Thermistor temperature sensor module is low cost, small size module. It is very sensitive to ambient temperature. It is generally used to detect the temperature of the surrounding environment. Through potentiometer adjustment, it is possible to change the temperature detection threshold. DO output can be directly connected to the micro controller to detect high and low, by detecting temperature changes in the environment.

The temperature detection range of the module is between 20 and 80 degrees Celsius. This module can be replaced with a line temperature sensor for controlling the water temperature, water tank, etc. Generally the 4 wire method of thermistor measurement is the most accurate, because there is effectively no current flowing in either of the measurement cable wires and therefore no added resistance due to the cable wires.

For Tutorial Click here.
