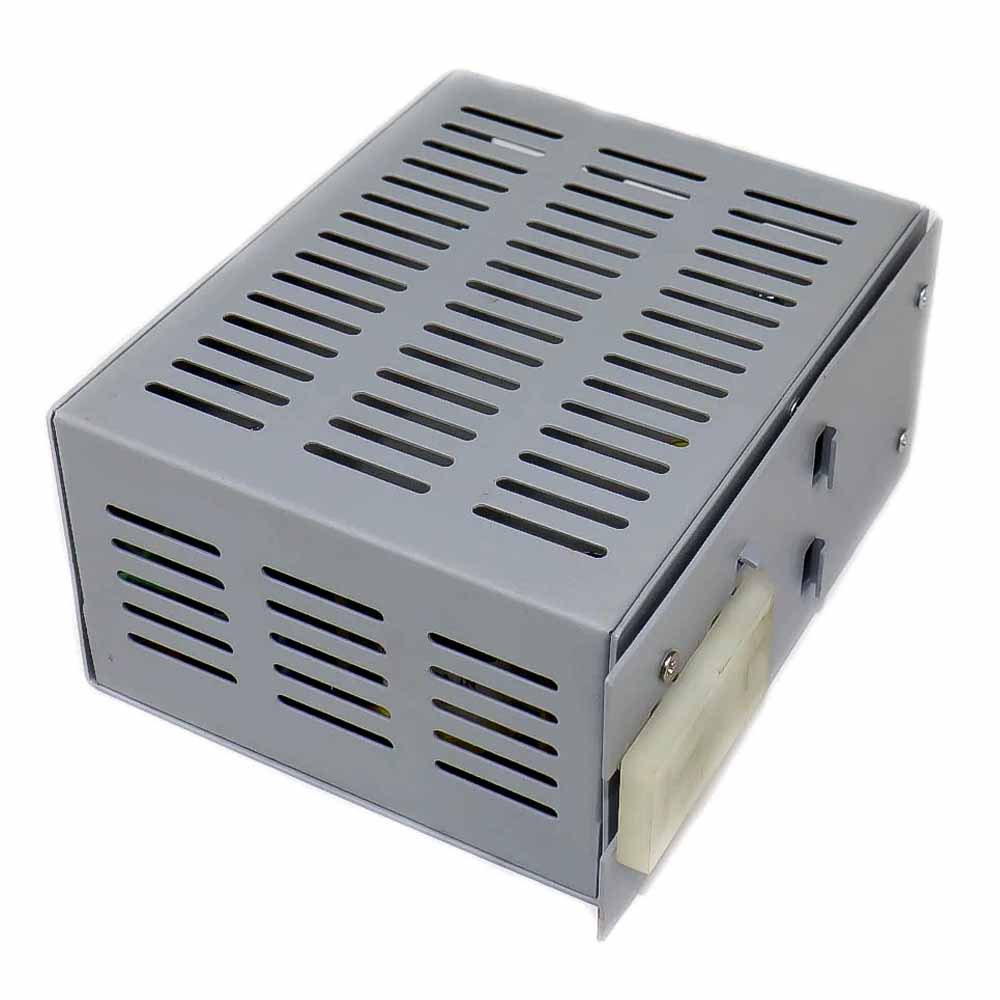

NHP 24V 10A 240W Switch Mode Power Supply (SMPS)

Specifications:

AC Input Voltage: 170 ~ 270 V.
Stable Output Voltage (V DC): 24.
Output Current (Amp): 10.
Output Power (Watt): 240.
Line Regulation: 0.5% (FULL LOAD).
Load Regulation: 1% (230 VAC I/P).
Operating Temperature (°C): -20 ~ +70.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,899.80 (Inc. GST)
₹1,610.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This SMPS is an AC to DC type converter; so as we said it is converting 230 VAC to 24 VDC @ 10A. This SMPS will provide you constant output 24V 10A means we can drive applications that have maximum current rating up to 10A. It includes any type of motor with different RPM, thermoelectric Peltier, etc.

We have been testing this power supply for quite some time and can definitely clarify its durability with its metal casing, short circuit, overload, and overvoltage protection. It comes with a sufficient amount of heat dissipation case.

Features:

High MTBF.
Design as per international standards.
It occupies very less panel footprint.
Wall or Rail mountable.
It can handle very high inrush currents without failure.
All protection features are auto-recovery.
Protection available for:
1. Input under /over voltage.
2. Output overload / short circuit (cvcc type).
3. Output overvoltage.
4. Thermal overload/over temperature.
