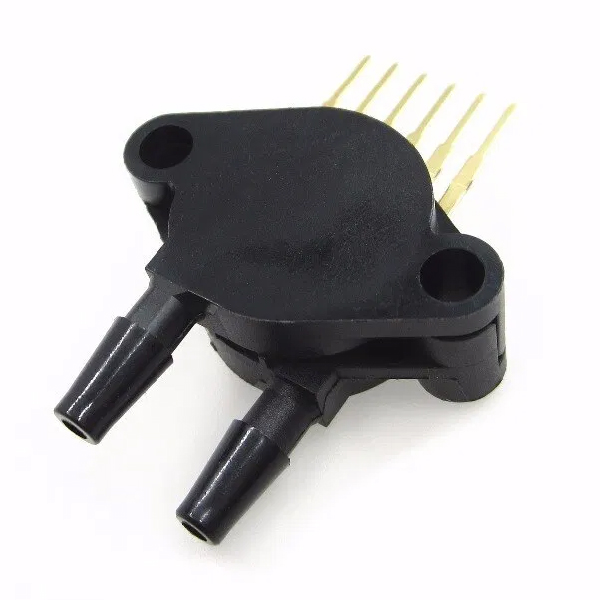

MPX5010DP Pressure Sensor 0-10KPa Transmitter Sensor Module

Specifications:

Category: Sensors, transducer pressure
Series: MPX5010
Pressure type: Differential
Working pressure: 1.45 PSI
Port size: Male, 0.194 “(4.9276mm) tube
Output: 0 ~ 4.7V
Power supply voltage: 4.75 V ~ 5.25 V
Termination Type: PCB
Operating temperature: -40 °C to 125 °C

SKU: RDNA-357.12

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,711.00 (Inc. GST)
₹1,450.00 (+18% GST Extra)

Only 1 left in stock

Compare

Add to wishlist

11 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure. The axial port has been modified to accommodate industrial grade tubing.

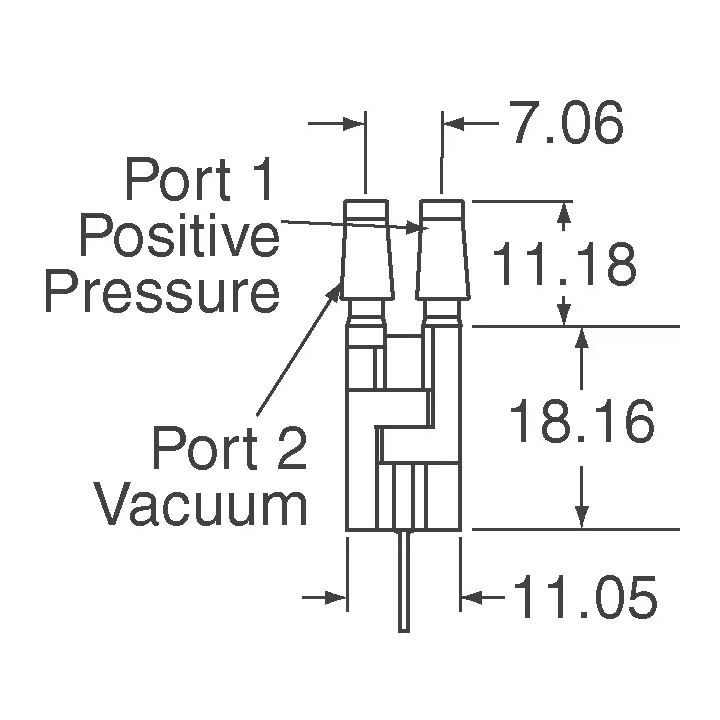

Pinout

Features

• 5.0% Maximum Error over 0 to 85C
• Ideally Suited for Microprocessor or Microcontroller-Based Systems
• Durable Epoxy Unibody and Thermoplastic (PPS) Surface Mount Package
• Temperature Compensated over -40 to +125C
• Patented Silicon Shear Stress Strain Gauge
• Available in Differential and Gauge Configurations
• Available in Surface Mount (SMT) or Through-hole (DIP) Configurations

Application Examples

• Hospital Beds
• HVAC
• Respiratory Systems
• Process Control
• Washing Machine Water Level
Measurement (Reference AN1950)
• Ideally Suited for Microprocessor or
Microcontroller-Based Systems
• Appliance Liquid Level and Pressure
Measurement

Datasheet

MPX5010DP Datasheet

Package included

1x MPX5010DP MPX5010 Pressure Sensor 0-10KPa Transmitter Sensor
