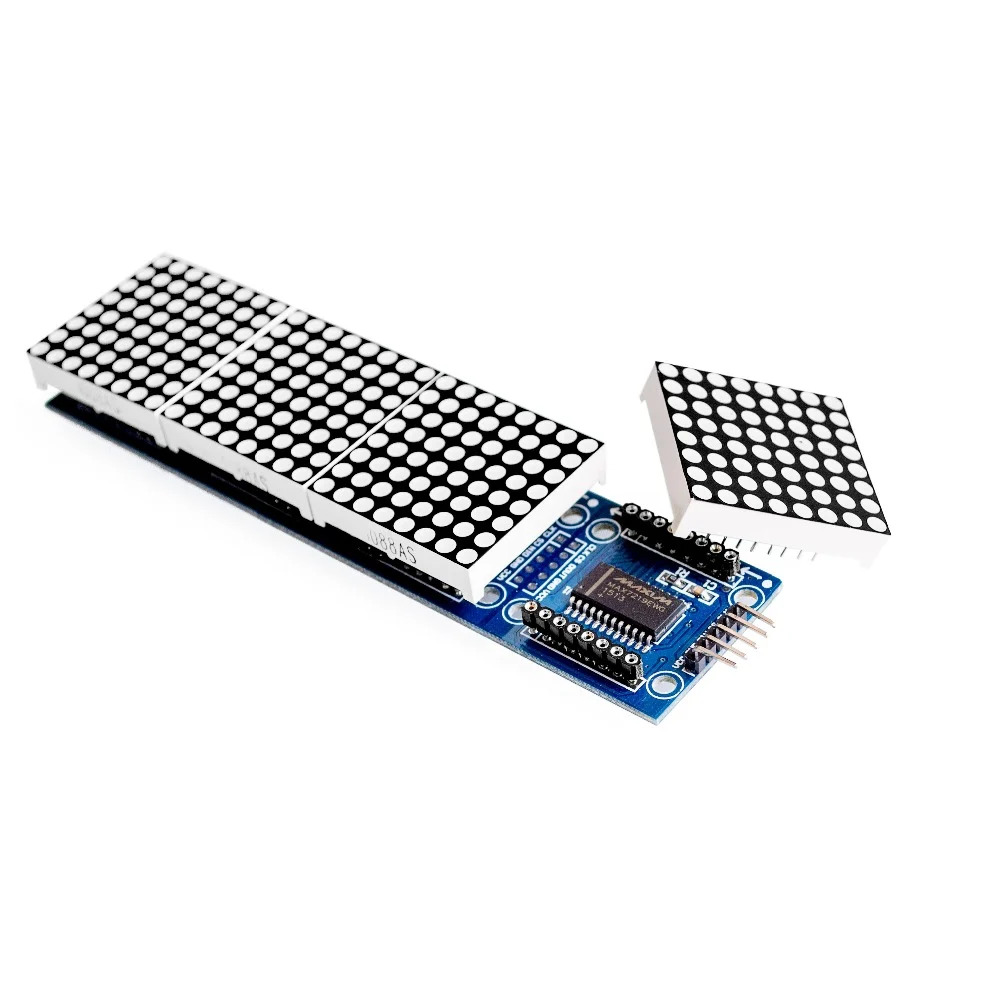

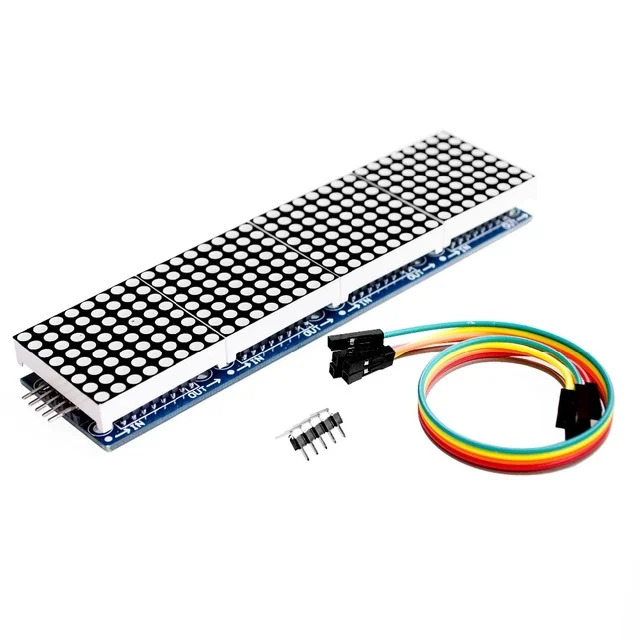

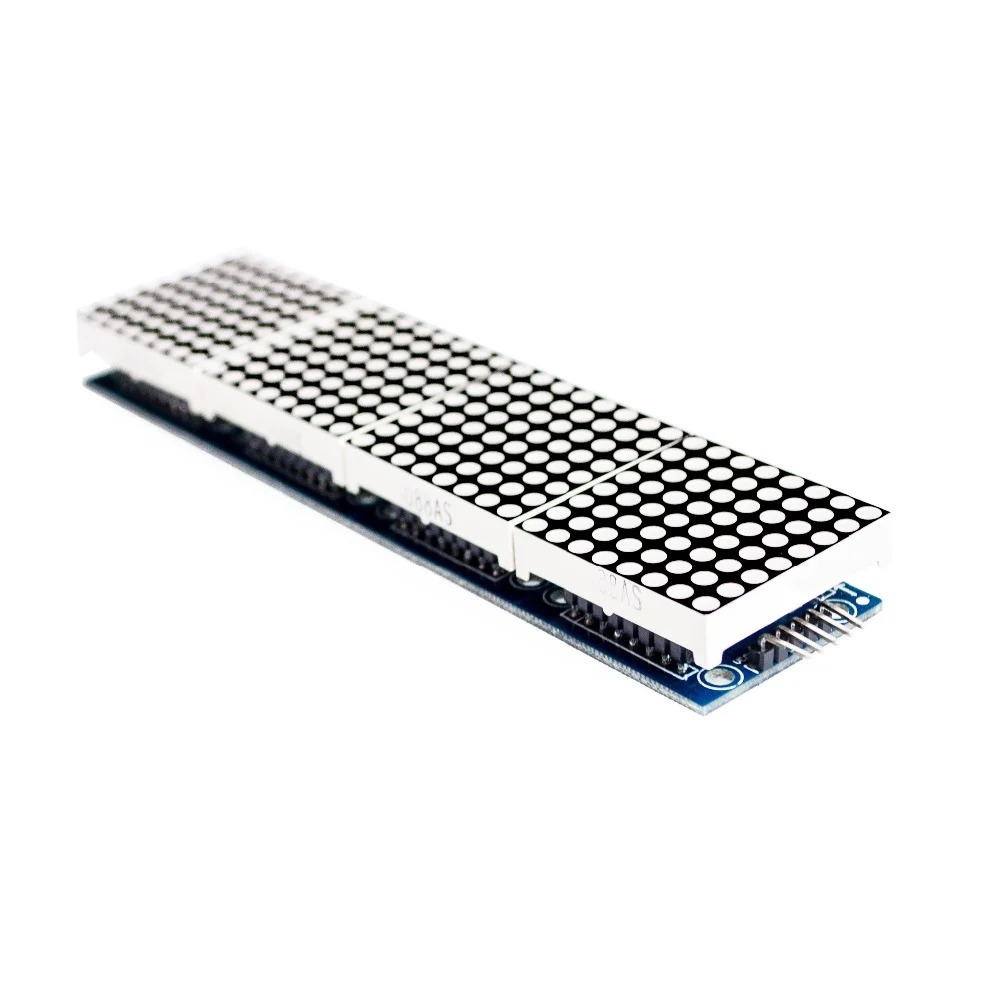

Dot Matrix MAX 7219 DISPLAY 4 in 1

558.14 (Inc. GST)473.00 (+18% GST Extra)

Specifications:

  • Dimensions: 128 x 32  x 1.5 cm(L x W x H)(All 4 in 1)
  • A single module can drive an 8×8 dot matrix common cathode
  • Operating voltage: 5V
  • Weight: 55 gm
  • Fixing screws with 64 holes with a diameter 3mm
  • Module with input and output interfaces
  • Support for cascading multiple modules

In stock

Compare
SKU: RDNA-171 Category: Tags: , ,

Share this product

Description

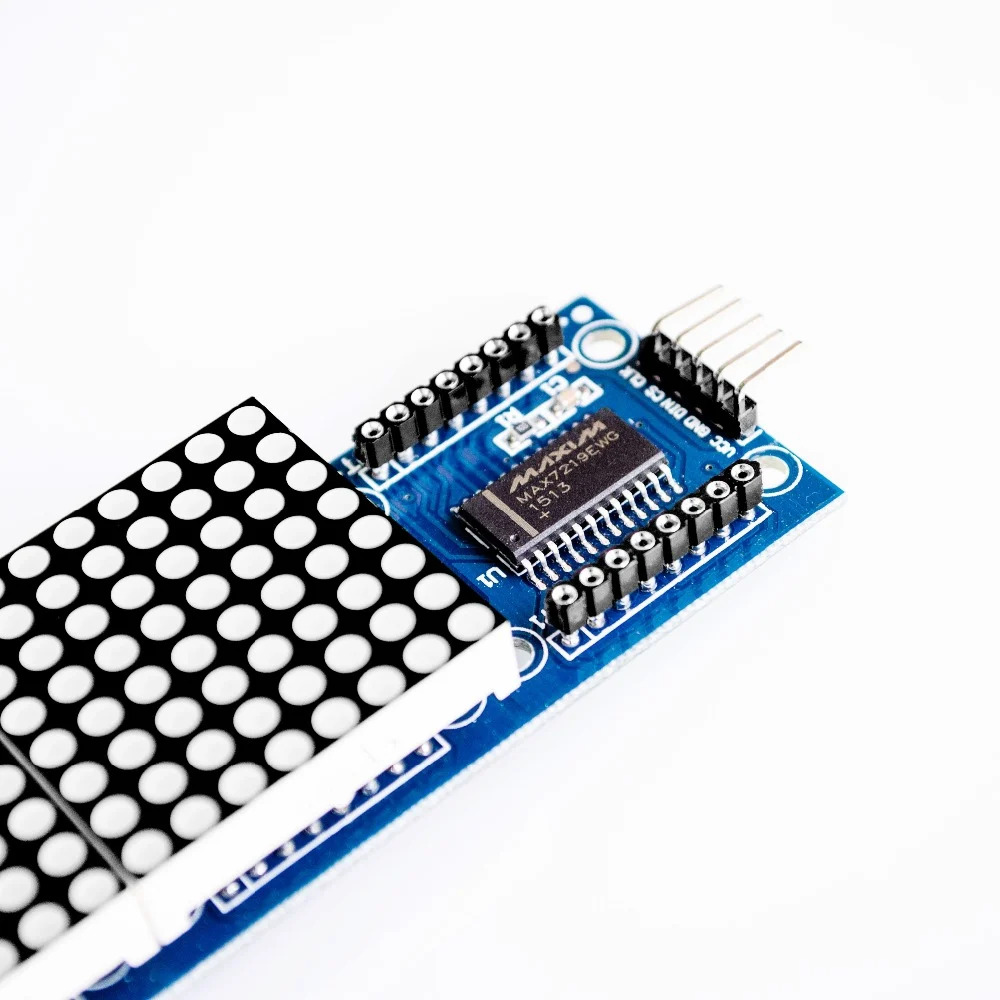

MAX7219 4-in-1 Display Dot Matrix Module is an integrated serial input/output common-cathode display driver, it connects the microprocessor 7-segment digital LED display with 8 digits, you can also connect a bar graph display or 64 independent LED. Thereon including a B-type BCD encoder chip, multi-channel scanning loop segment word driver, but also a static RAM 8 x 8 for storing each data. Only one external register is used to set the segment current of each LED.

Package includes:

1 x MAX 7219 DOT MATRIX DISPLAY 4 in 1

Need Help For Interfacing.Click here.

You may also look for :

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
