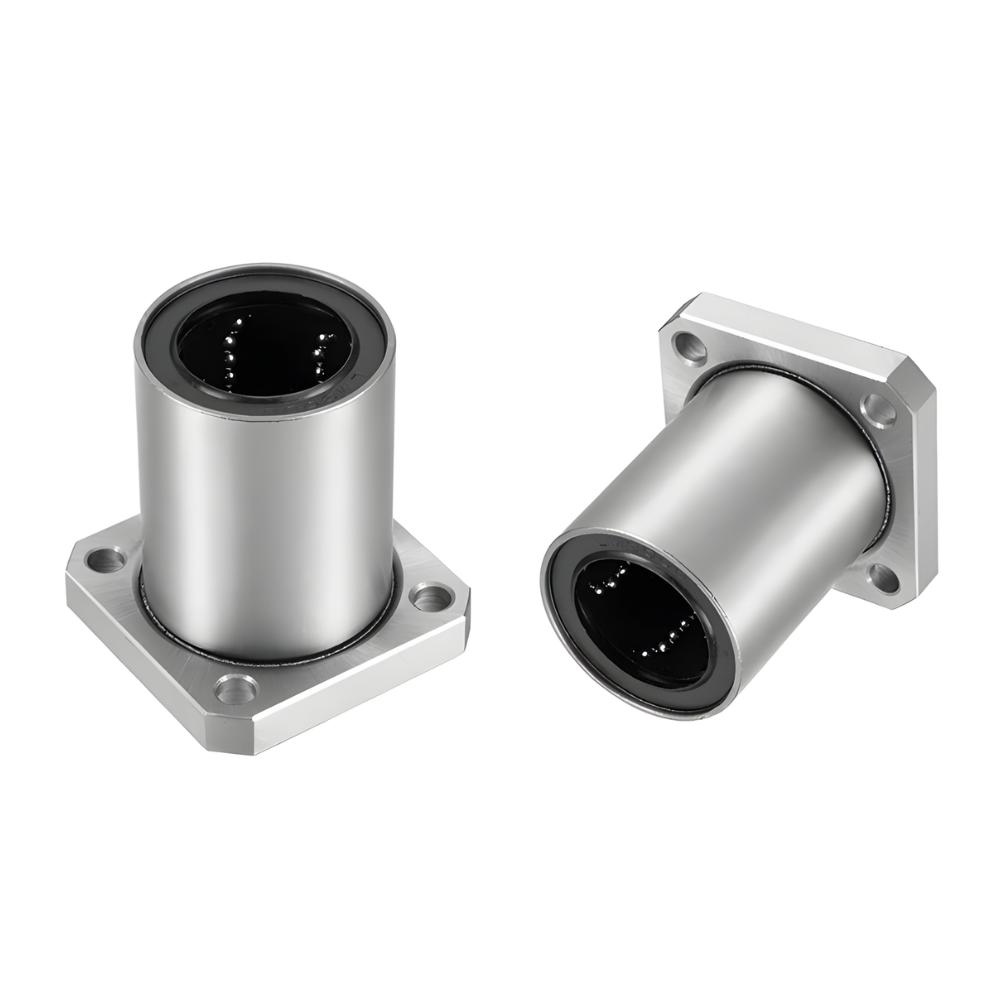

LMK25UU Square Flange Linear Ball Bearing – 1 Pc
Specifications

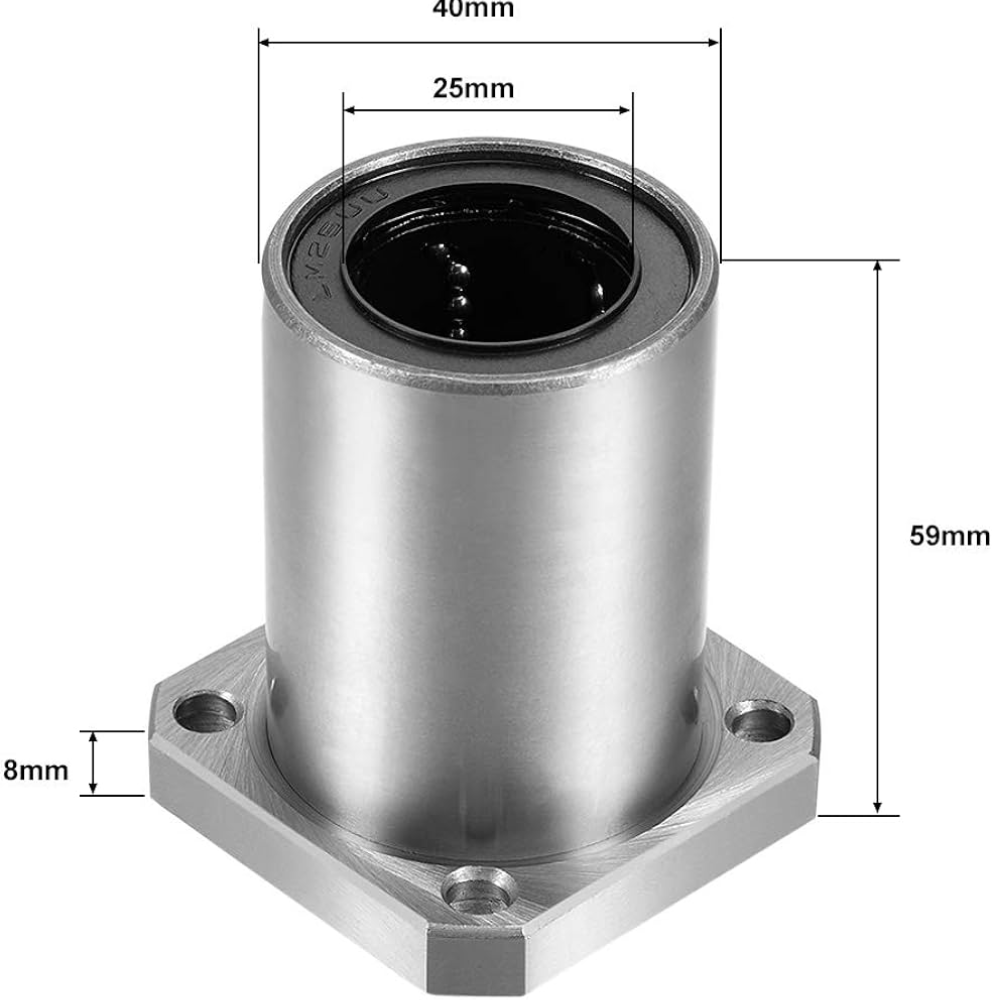

- Model: LMK25UU
- Type: Square Flange Linear Ball Bearing
- Inner Diameter (ID): 25 mm
- Outer Diameter (OD): 40 mm
- Length (L): 59 mm
- Flange Size: 50 mm × 50 mm
- Flange Thickness: 8 mm
- Mounting Hole Pitch (PCD): 51 mm
- Material: Hardened Bearing Steel
- Seal Type: Double Rubber Sealed (UU)
- Number of Ball Circuits: 6
- Dynamic Load Rating: 1570 N
- Static Load Rating: 980 N
- Suitable Shaft Diameter: 25 mm
- Applications: CNC Machines, 3D Printers, Robotics, Automation Systems
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
₹239.00 (Inc. GST)
₹202.54 (+18% GST Extra)
Only 2 left in stock
Only 2 left in stock
For bulk orders or B2B inquiries, please contact us at: [email protected]
13
People watching this product now!
-
Pick up from the RoboticsDNA Store in Pune / Dunzo
To pick up today
Free
-
Same Day Delivery in Pune
(Mon-Sat) (Please Place Order Before 1:30 PM)
Rs. 99
-
via Delhivery.com (Express Mode)
Our courier will deliver to the specified address
3-5 Days
Rs. 149
-
via Delhivery.com (Surface Mode)
Our courier will deliver to the specified address
4-7 Days
Rs. 69
Payment Methods:
Description
The LMK25UU is a square flange linear ball bearing designed for smooth and accurate linear motion along a 25 mm shaft. Its square flange makes it easy to mount securely on flat surfaces, ensuring perfect alignment and reducing unwanted rotation during operation.

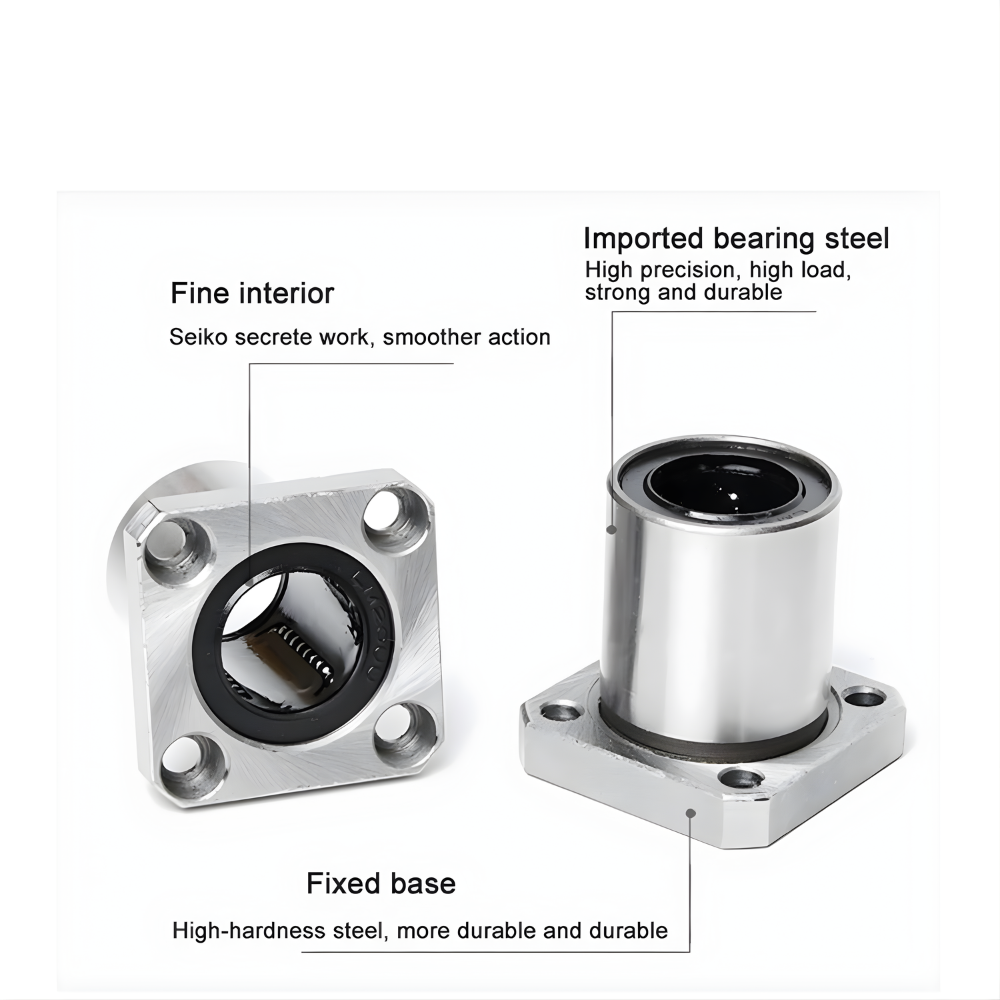

Inside the bearing, multiple rows of hardened steel balls roll between precision-ground surfaces, minimizing friction and wear while allowing for free linear movement. The “UU” indicates double rubber seals that protect the internal components from dust and retain lubrication for longer bearing life.
This bearing is widely used in CNC machines, 3D printers, robotics, and linear motion systems. It offers high precision, durability, and stability, making it ideal for industrial automation and guiding applications where reliable linear performance is required.
Package includes:
1 x LMK25UU Square Flange Linear Ball Bearing
