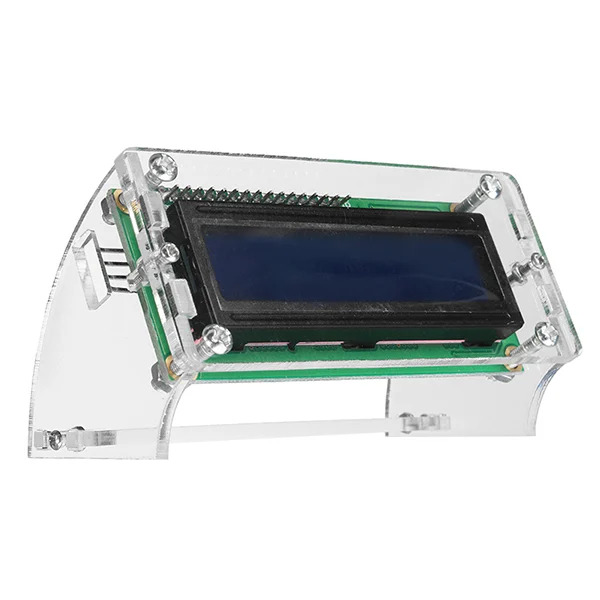

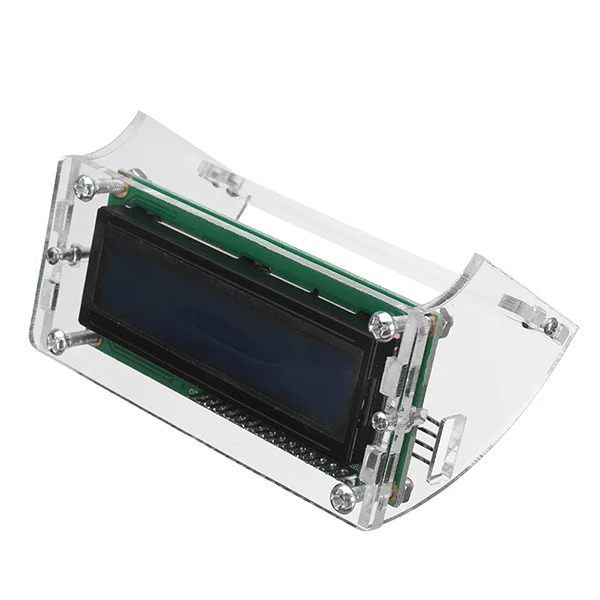

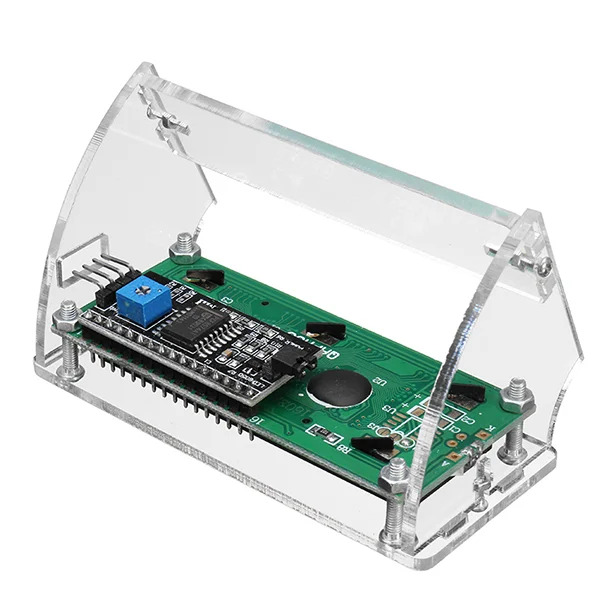

LCD Display 16×2 LCD1602 Holder Acrylic Case Stand Module

Specifications

1. Color of display : Green
2. Color of character : Yellow
3. Size : 20 x 2 (20 character x 2 rows)
4. Input voltage : +5V
5. Supply current : 1.5mA
6. Board dimensions  :  116mm x 38mm (LxB)
7. Display dimensions   :   83mm x 19mm (LxB)

Specifications:

1. Operating Voltage is 2.7V to 3.3V
2. Current consumption is 6mA
3. Consists of 84 rows and 84 columns (84×48) monochrome pixels
4. Works using SPI interface
5. Consists of Philips PCD8544 interface chip for easy interfacing
6. Can be easily interfaced with Arduino
7. Supports decent graphics of bitmap images

Features

1. 16 characters wide, 1 rows
2. White text on the Blue background
3. Single LED backlight included can be dimmed easily with a resistor or PWM.
4. Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)

Specifications:

1. Operating Voltage: 5V
2. Viewing angle: 6 ‘o’ clock
3. MCU I/F: Serial or 8-bit parallel
4. Display Color: Blue
5. Low power consumption
6. Automatic power-on Reset
7. Graphic and Character mix modes display
8. Display Construction: 128*64 dots
9. Display Mode: STN
10. Type: Chip On Board (COB)
11. Interface: 6800 8-bit Parallel
12. Display Type: Positive Transflective
13. Backlight: LED Blue/ 5.0V
