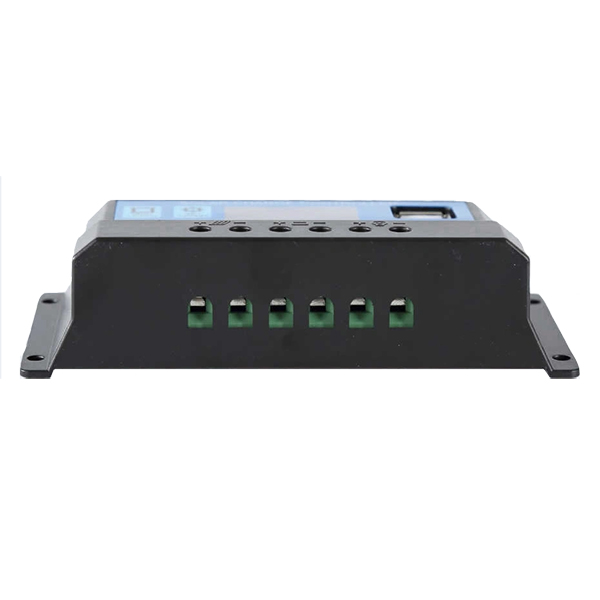

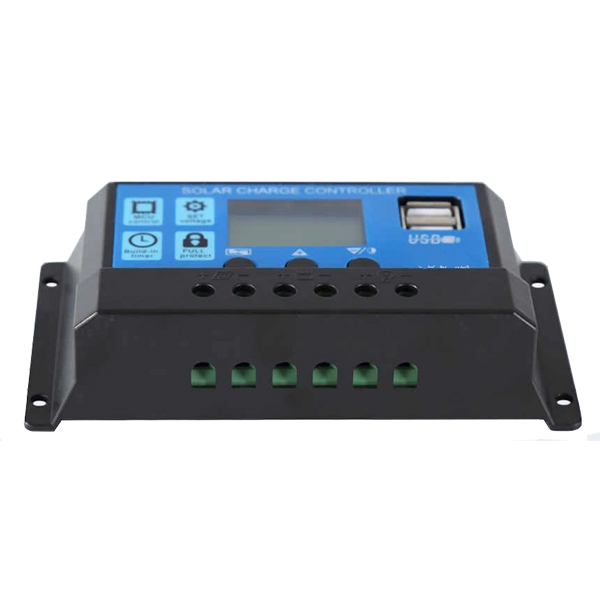

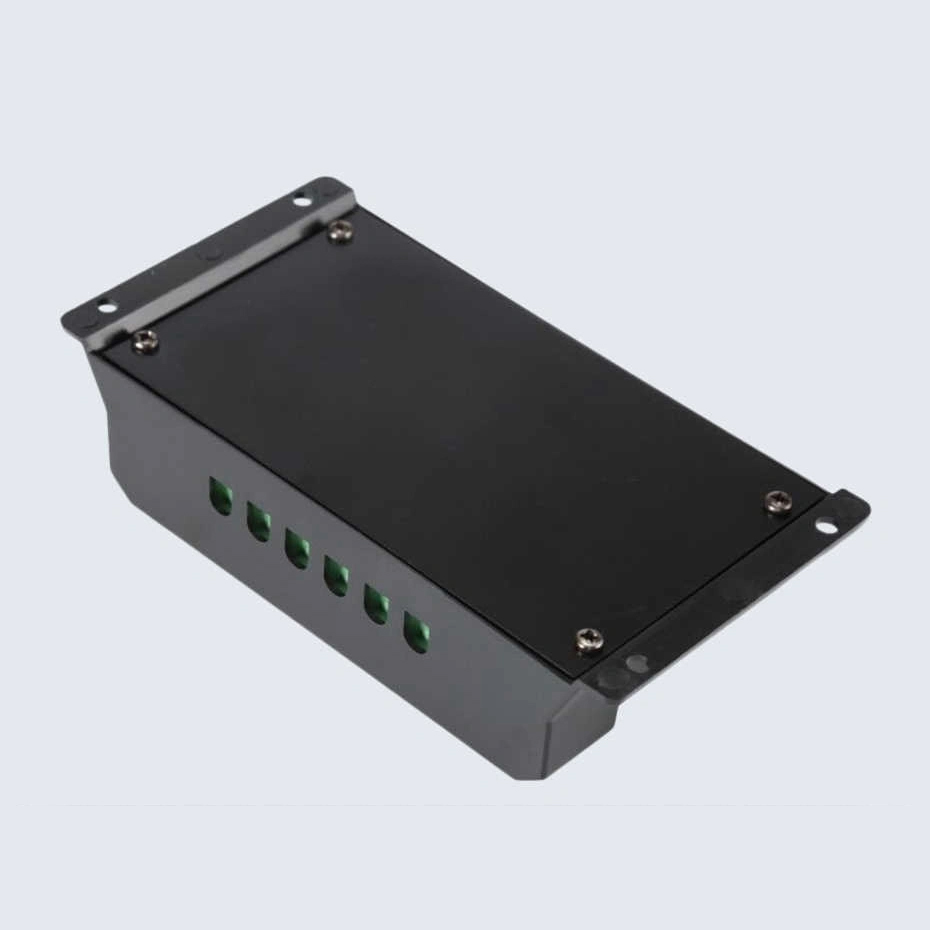

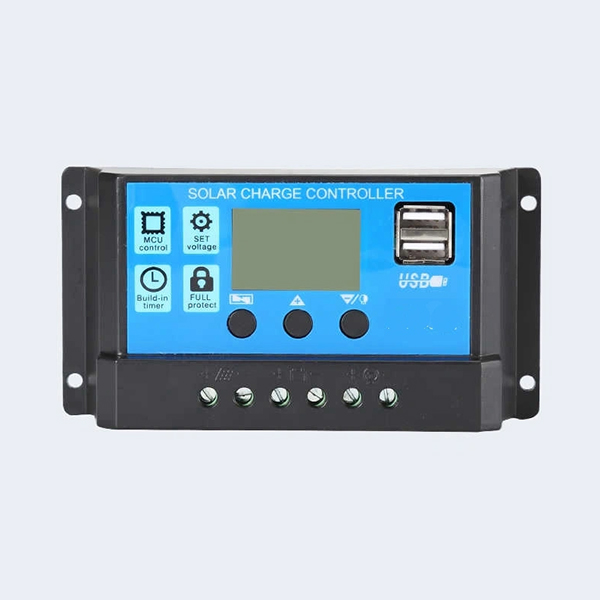

Intelligent Solar Charge Controller 40A

Specifications:

Battery Input:-12-24V Auto
Charging Current (A) :-40
Discharge Current (A):-40
Max. Solar Input (V):-<50
Shipment Weight:-0.16 kg
Shipment Dimensions:-15 × 8 × 4 cm

SKU: RDNA-T51

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,003.00 (Inc. GST)
₹850.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

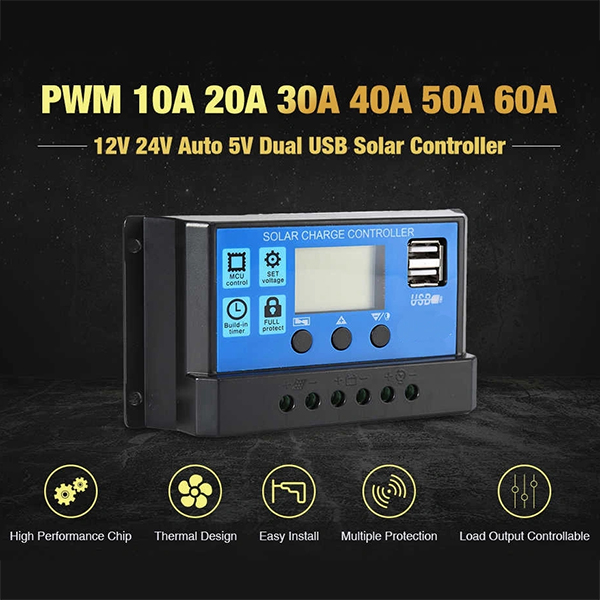

MODEL	PWM 10A	PWM 20A	PWM 30A	PWM 40A	PWM 50A	PWM 60A
Battery Voltage	12V 24V Auto
Charging Current	10A	20A	30A	40A	50A	60A
Discharging Current	10A	10A	10A	20A	30A	30A
Max Solar input	50V(for 24V battery) 25V(for 12V battery)
Equalization	14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge	13.7V(default, adjustable)
Discharge stop	10.7V(default, adjustable)
Discharge reconnect	12.6V(default, adjustable)
Charge reconnect	13V
Voltage of open light	Solar Panel 8V(Light lights delay)
Voltage of close light	Solar Panel 8V(Light off delay)
USB output	5V/3A
Self-consume	<10mA

Multiple Protection Functions: Solar controller has short-circuit protection, open-circuit protection, reverse protection, over-load protection. Fully 3-stage PWM charge management, improve system efficiency and prolong the life span of the battery.

Battery Type: The charge regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL, it is not suited for nickel hydride, lithium, Li-ions, or other batteries. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically.

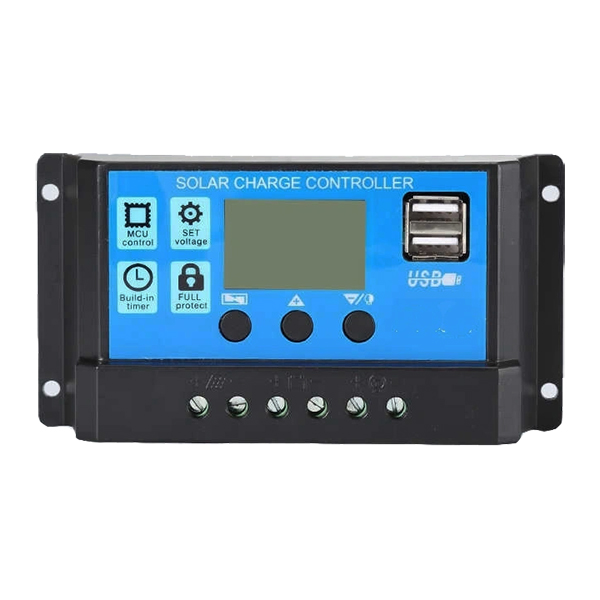

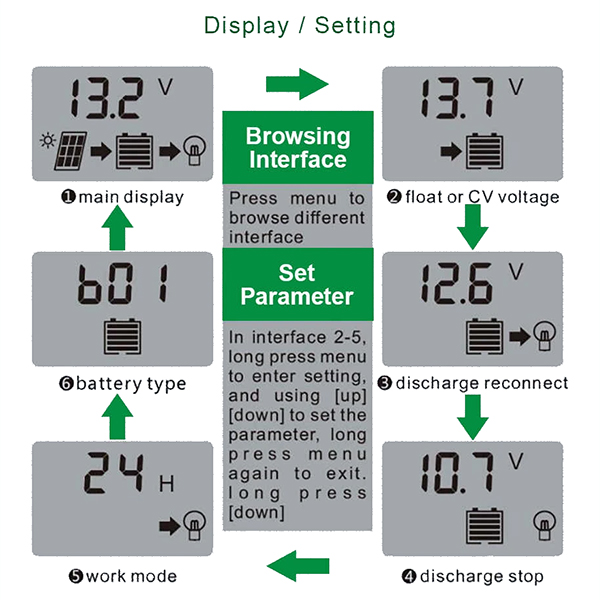

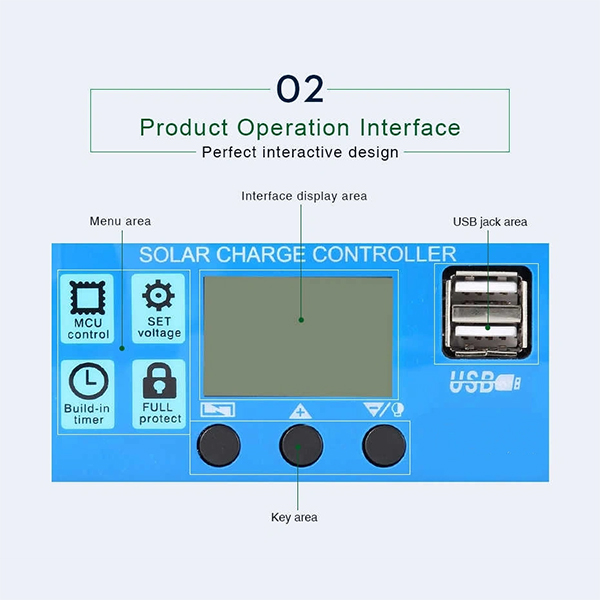

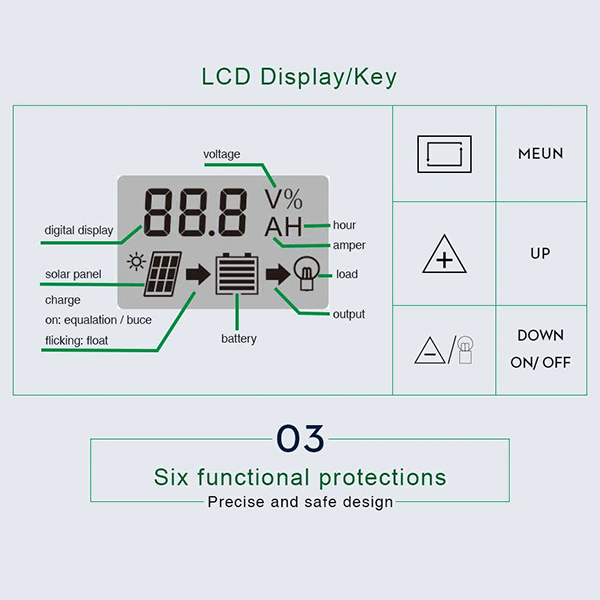

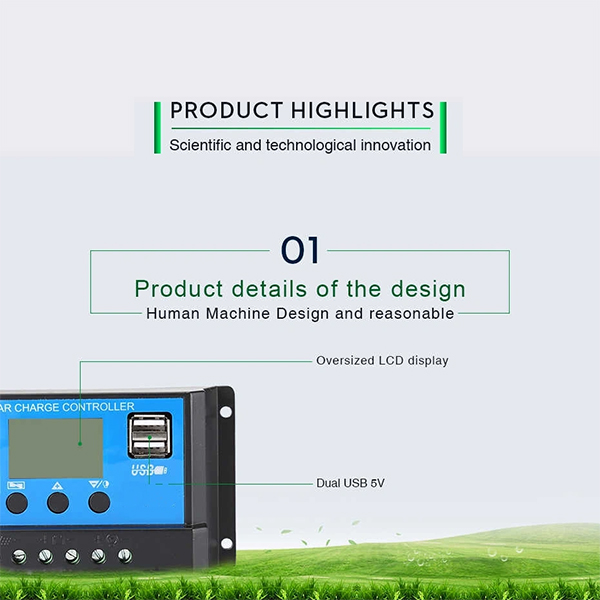

LCD Display: Comes with a display that can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc.

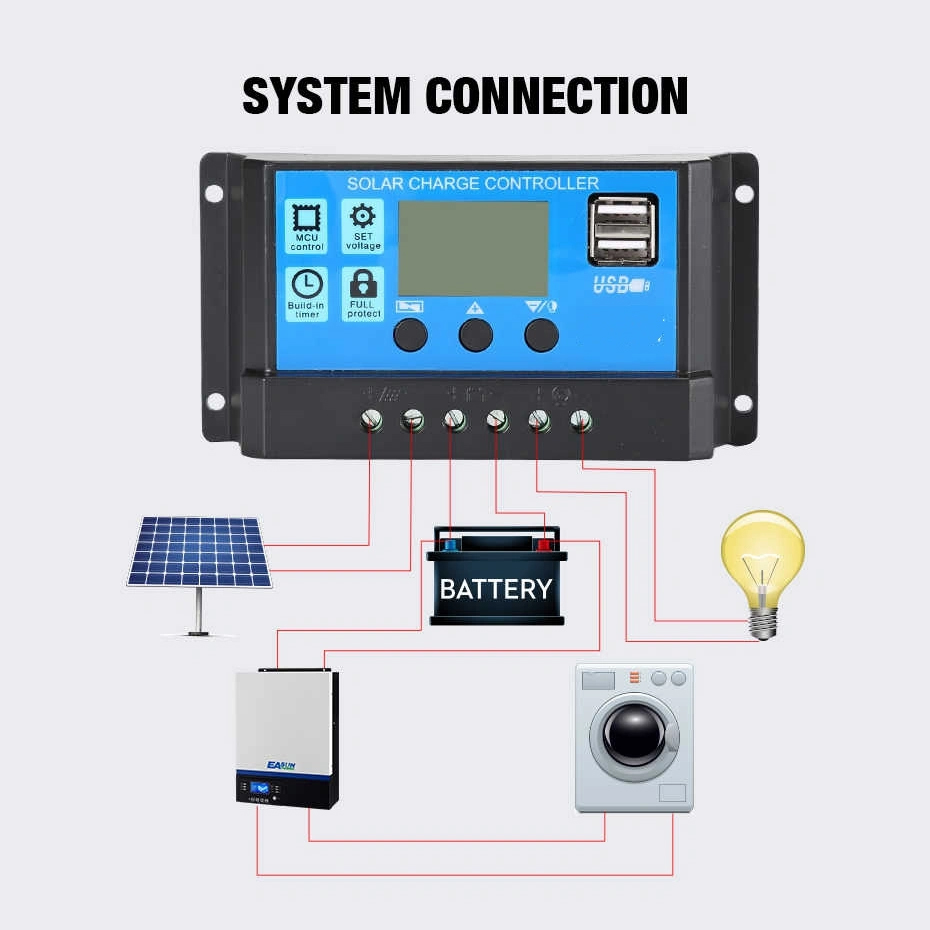

Easy to Install and Operate: The charge controller should connect the battery first, then the solar panel, and finally the load. The disassembly sequence is contrary to the wiring order. Dual mosfet Reverse current protection, low heat production.

Note: The charge controller will heat up when it is running. Please be careful to install the charger controller on a flat, well-ventilated place.

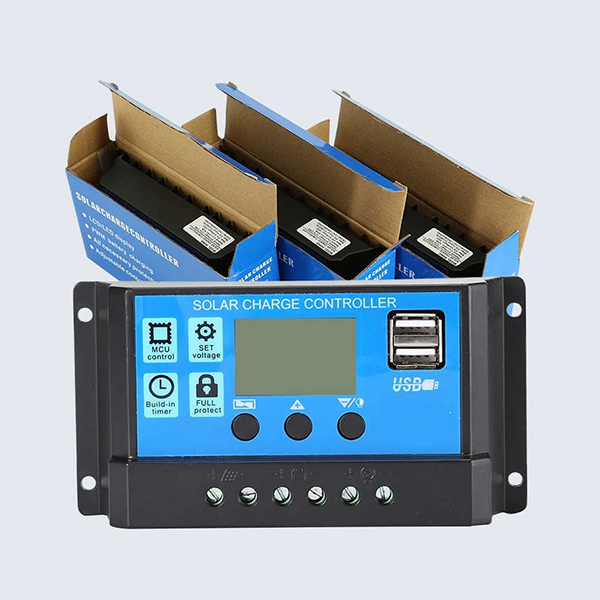

Package Include:

1 x Intelligent Solar Charge Controller 40A
