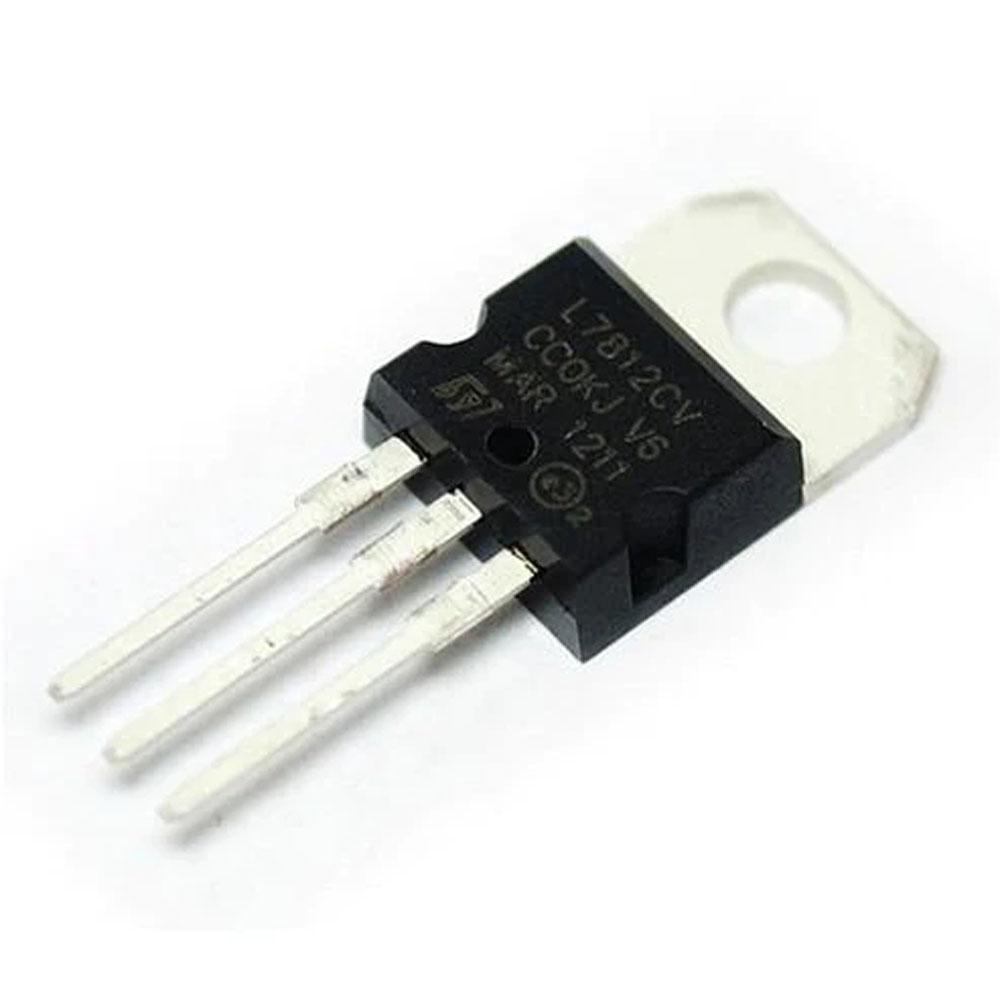

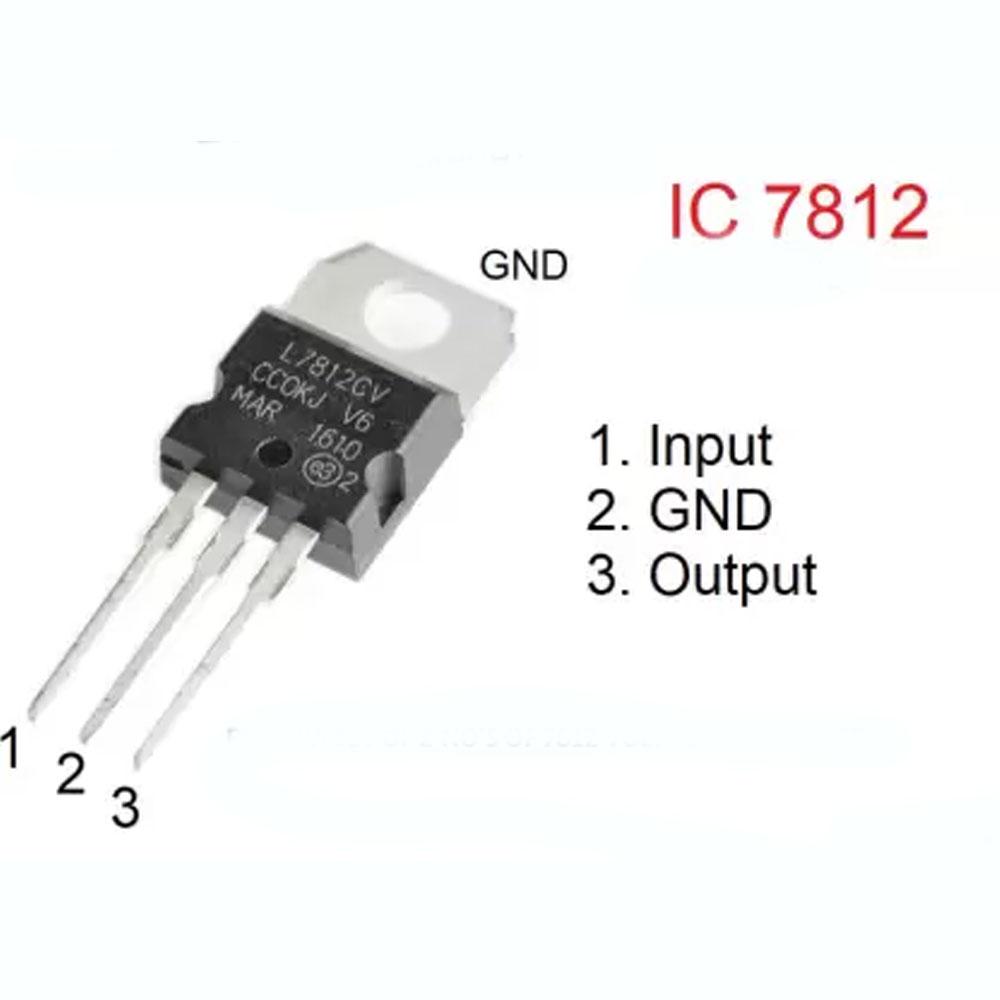

IC NCP 7812 TG Voltage Regulators

Specifications:

Maximum Operating Temperature:+125 °C
Accuracy: 4%
Line Regulation: 240 mV
Number of Outputs:1
Package Type:TO-220
Minimum Input Voltage:7 V
Load Regulation:240 mV
Mounting Type:Through Hole
Quiescent Current:8mA
Minimum Operating Temperature:0 °C
Output Type:Fixed
Pin Count:3
Dimensions:10.28 x 4.82 x 15.75mm
Maximum Input Voltage:35 V
Output Voltage:12 V
Maximum Output Current:1A

SKU: RDNA-121.7

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹21.24 (Inc. GST)
₹18.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

12 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

NCP7812 positive voltage regulator is a fixed output regulator that is applied in various applications in electronic productions such as power supplies, on board post-regulation, it can also be used in Industrial and consumer applications. The robust linear voltage IC comes complete with thermal shutdown and internal current limiting as well as safe area compensation. The voltage regulator can achieve 1A current outputs with a suitable heat sink and these devices offer enhanced ESD protection.

Refer to the Datasheet below for more detail.

Datasheet available here.

Package Include:

1 x IC NCP 7812 TG Voltage Regulators
