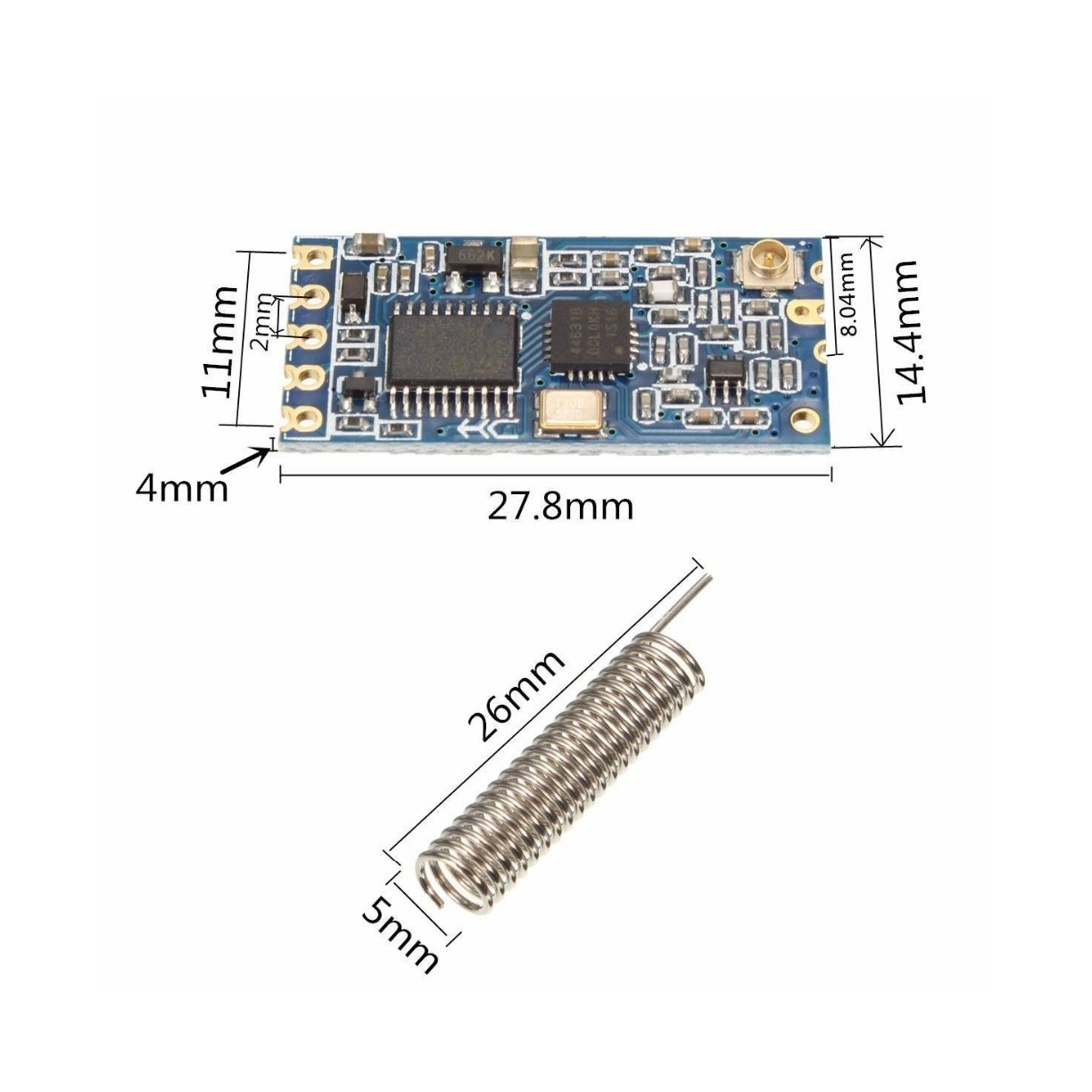

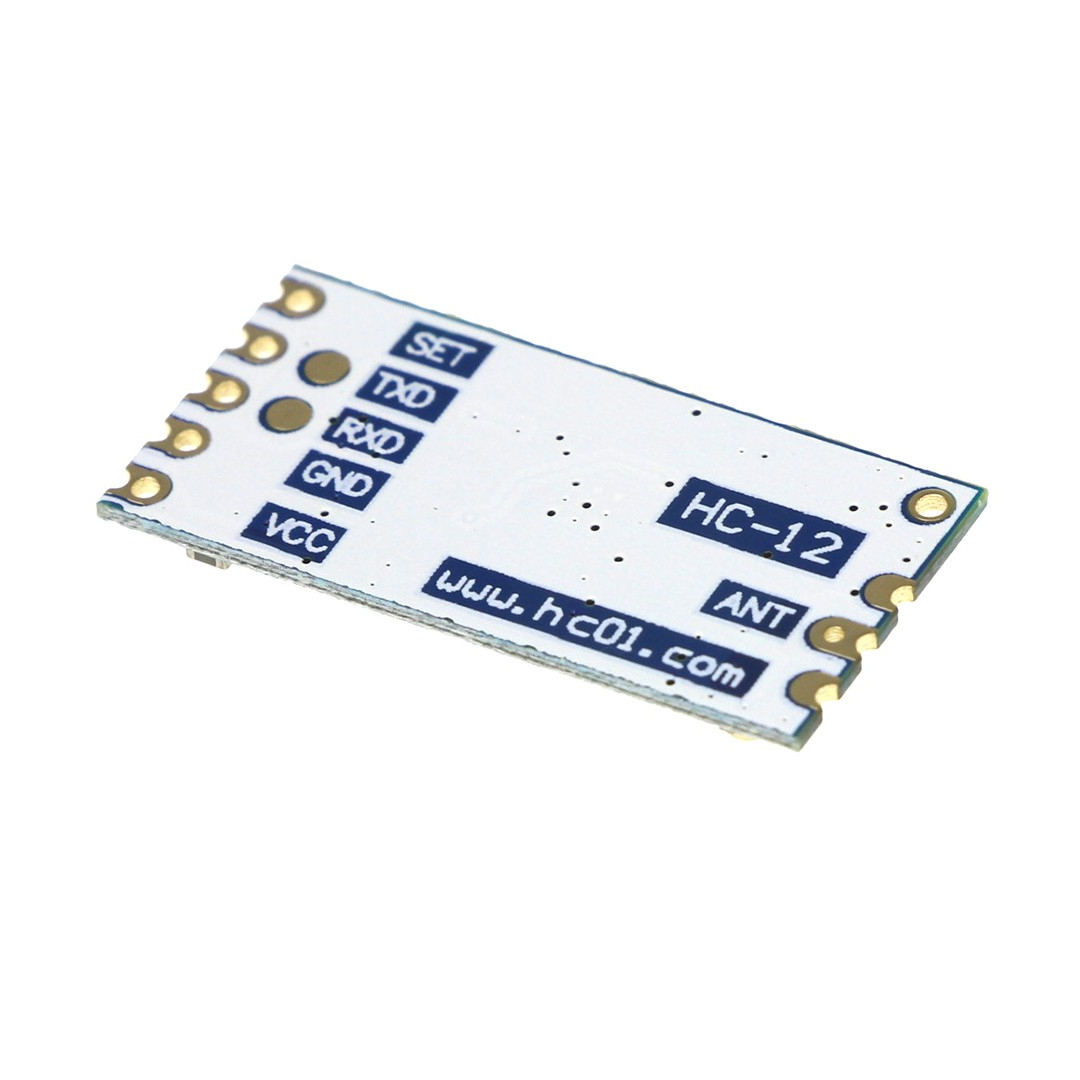

HC-12 SI4463 Wireless Serial Module

Specifications:

Frequency range : 119–1050 MHz
Receive sensitivity : –126 dBm
Serial TTL (RX, TX, GND) interface
Modulation (G)FSK, 4(G)FSK, (G)MSK, OOK
Max output power : +20 dBm
Low active power consumption: 10/13 mA RX, 18 mA TX at +10 dBm
Ultra low current powerdown modes: 30 nA shutdown, 50 nA standby
Data rate: 100 bps to 1 Mbps
Fast wake and hop times
Highly configurable packet handler
TX and RX 64 byte FIFOs
Auto frequency control (AFC)
Automatic gain control (AGC)
Low BOM
Low battery detector
FCC Part 90 Mask D, FCC part 15.247, 15,231, 15,249, ARIB T-108, T-96, T-67, RCR STD-30, China regulatory
ETSI Class-I Operation with SAW

SKU: RDNA-23.6

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹678.50 (Inc. GST)
₹575.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

HC-12 wireless RF UART communication module is a new generation of multi-channel embedded wireless data transmission module. The Radio frequency of 433.4 – 473.0MHz, can be setting a communication channel, step is 400kHz, a total of 100 channels. The module maximum transmit power is 100mW (20dBm), and -116dBm receiver sensitivity air of the 5000bps baud rate, communication distance about 500 meters.

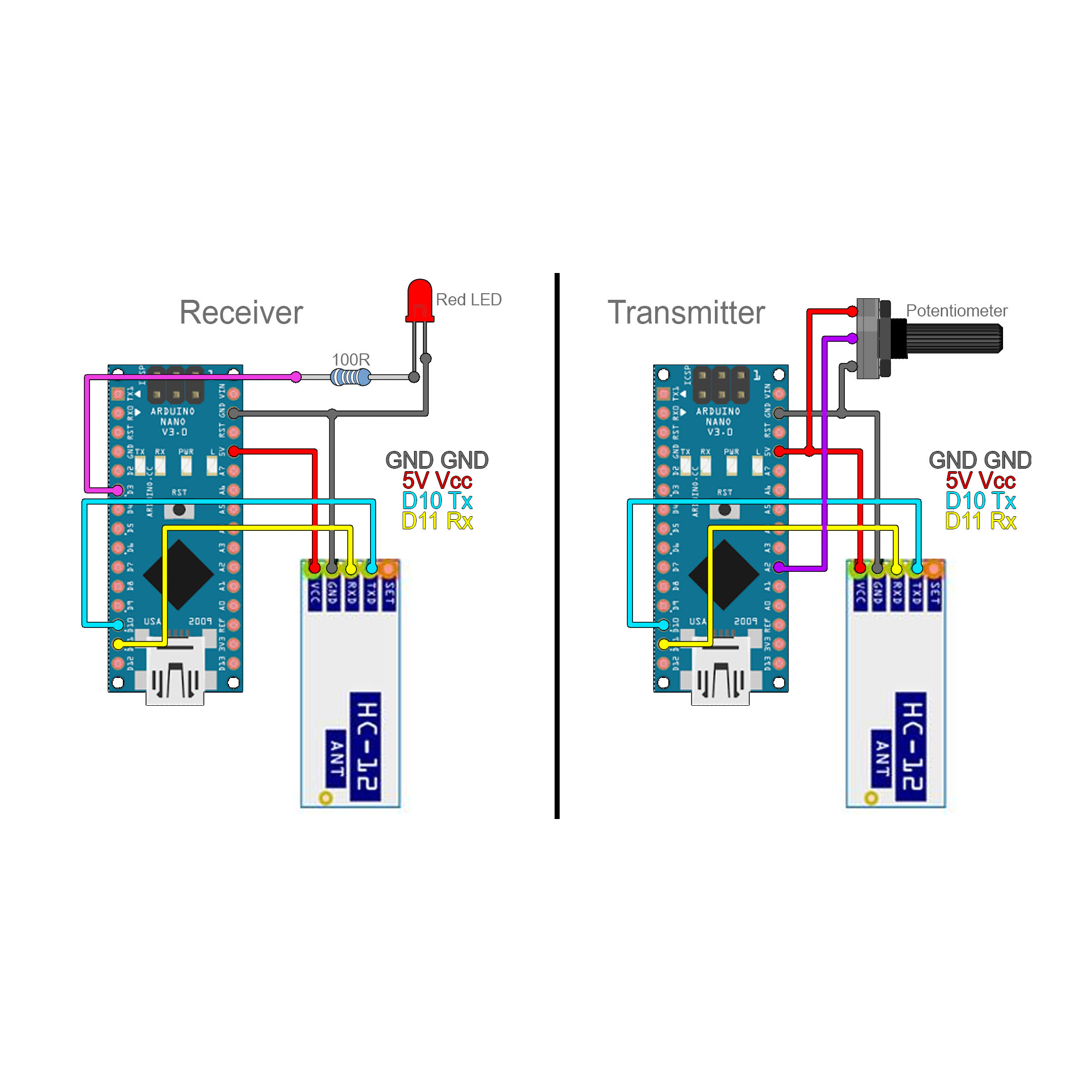

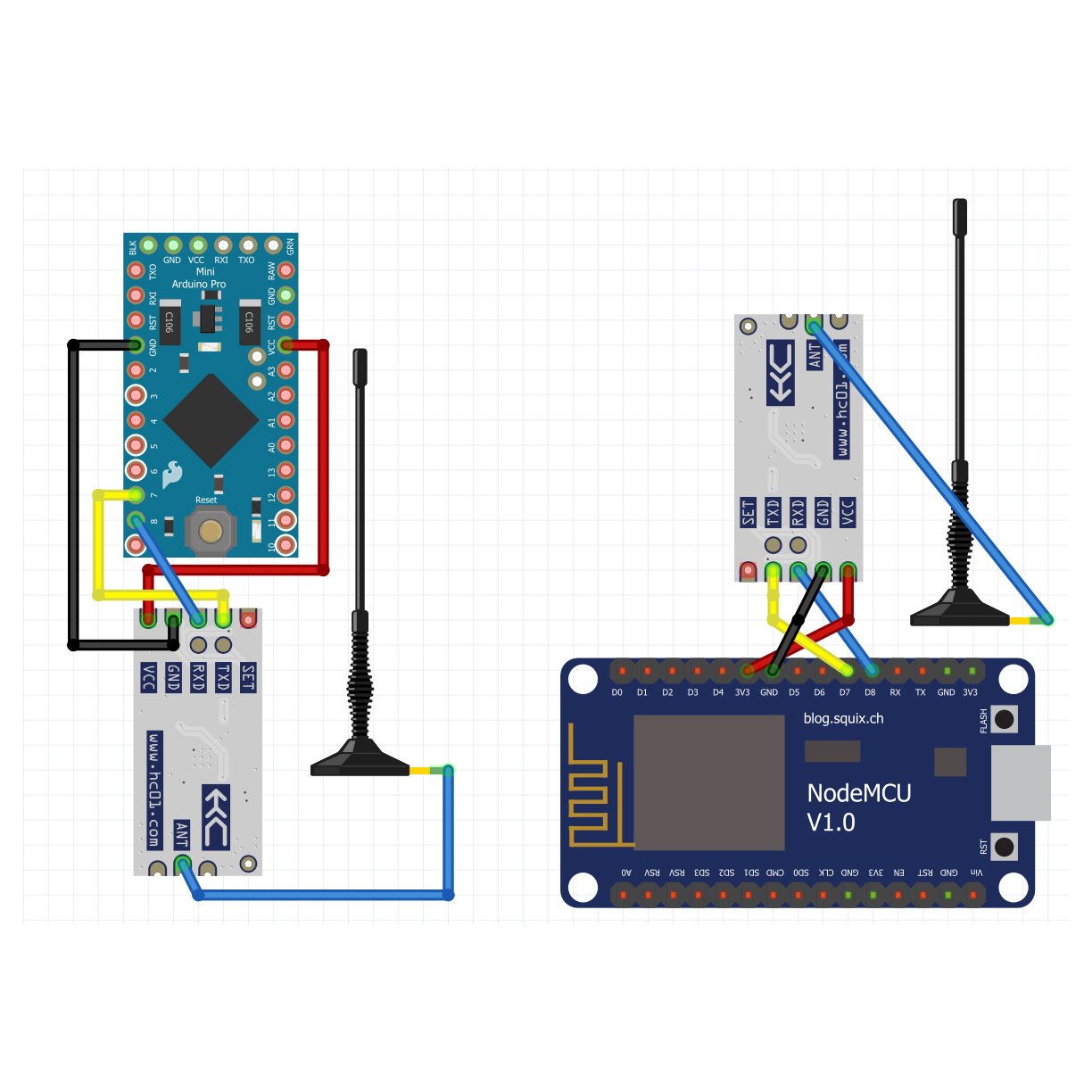

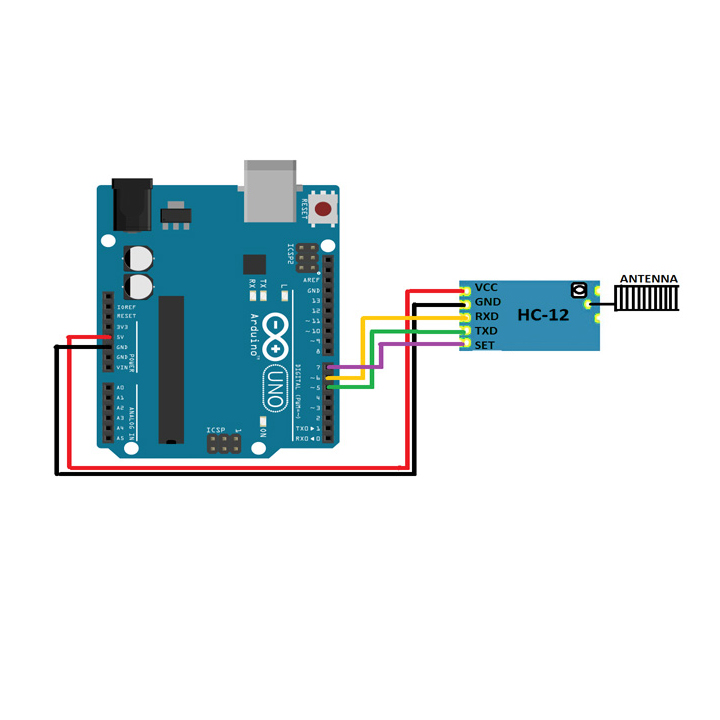

This module has an onboard STM8S003F3P6 MCU which is communicating with the SI4463 so that the user can communicate with the HC12 module using a simple TTL 2 wire serial interface (RX, TX, GND).

Download Datasheet
