HanTek 6022BE – DUAL CHANNEL PC BASED USB OSCILLOSCOPE 20 MHZ BANDWIDTH

This oscilloscope is small, lightweight, no external power required, portable oscilloscopes! The oscilloscopes is ideal for production test, research and design and all of the applications involving analog circuits test and troubleshooting, as well as education and training.

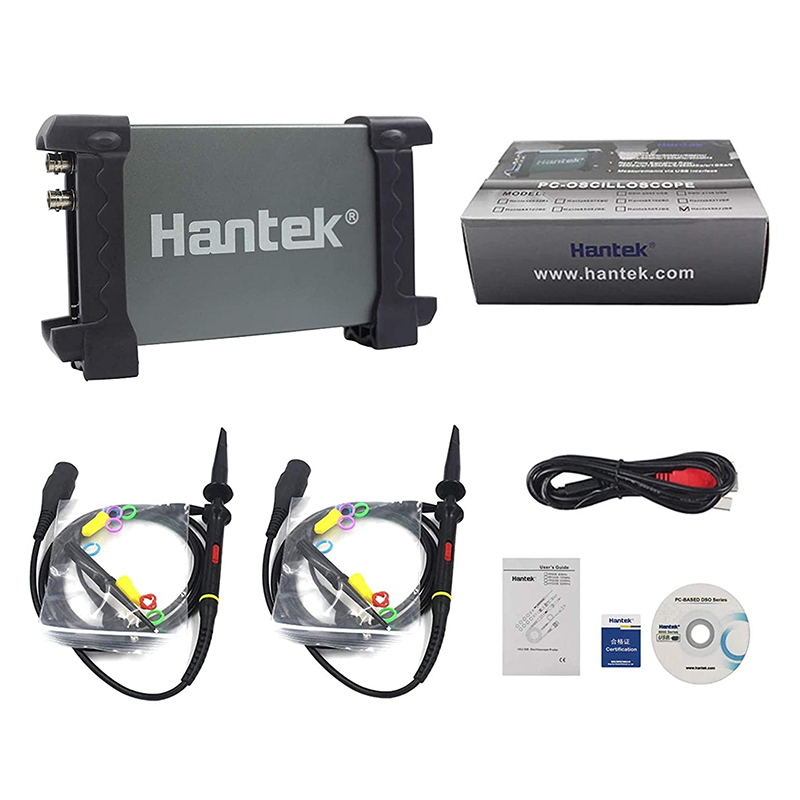

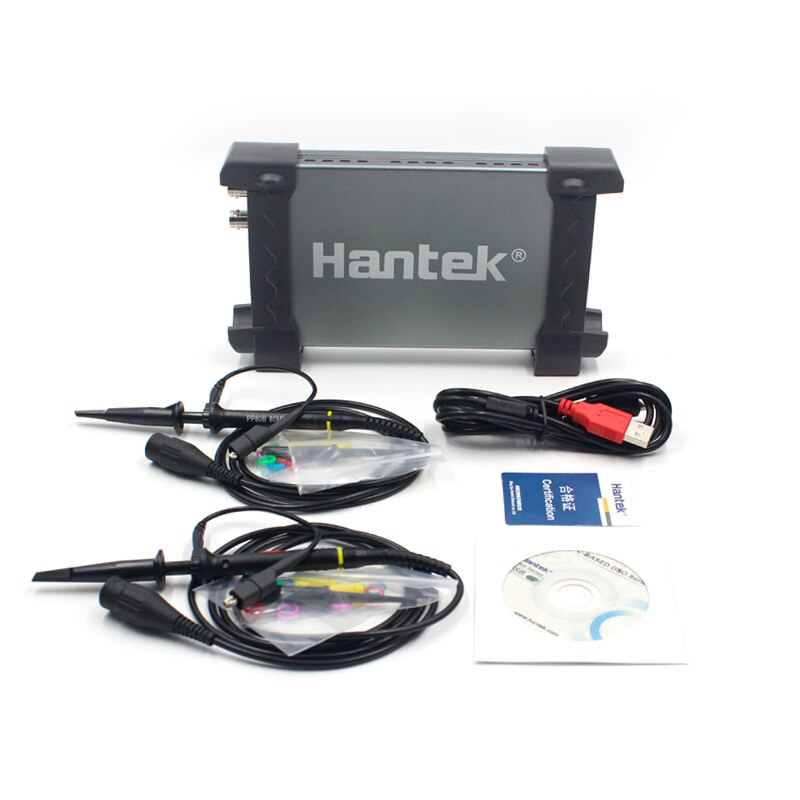

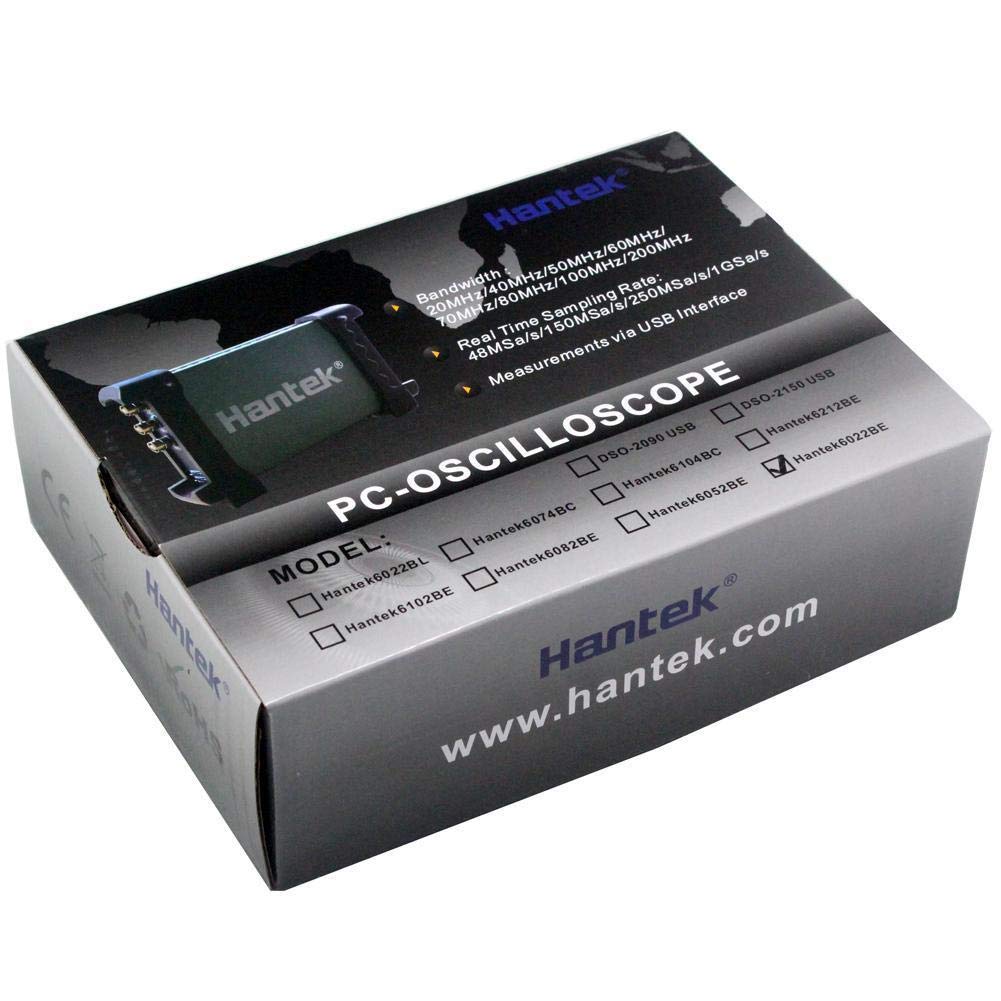

Packing of HanTek Oscilloscope:

Specifications:

• Channels: 2
• Bandwidth: 20MHz
• Input Impendence: 1MΩ 25pF
• Max. Sample rate:48MS/s
• Vertical resolution: 8Bit
• Gain range: 20mV-5V, 8Steps
• DC accuracy: ±3%
• Timebase range: 1ns-5000s, 39 Steps
• Vertical adjustable: Yes
• X-Y: Yes
• Trigger Mode: Auto, Normal and Single
• Trigger Slope: +/-
• Trigger level adjustable: Yes
• Trigger Type: Rising edge, falling edge
• Trigger Source: CH1, CH2
• Sampling selection: Yes
• Waveform Display: port/line, waveform average, persistence, intensity
• Dimensions: 205mm (L) x120mm (W) x35mm (H)
• Accessories: Software CD, probes, manual, USB cord
• Operating systems supported: Windows 7, Windows 8,Windows 10,Windows XP, Vista

Official Website For more details and Software Downloads.
