Hailong 36V Battery Case With 52 Cell Holders for Electric Bike Bicycle ( No Battery Inside)

Specifications:

36v Ebike Battery Case
High Quality

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹3,417.00 (Inc. GST)
₹2,895.76 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

11 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

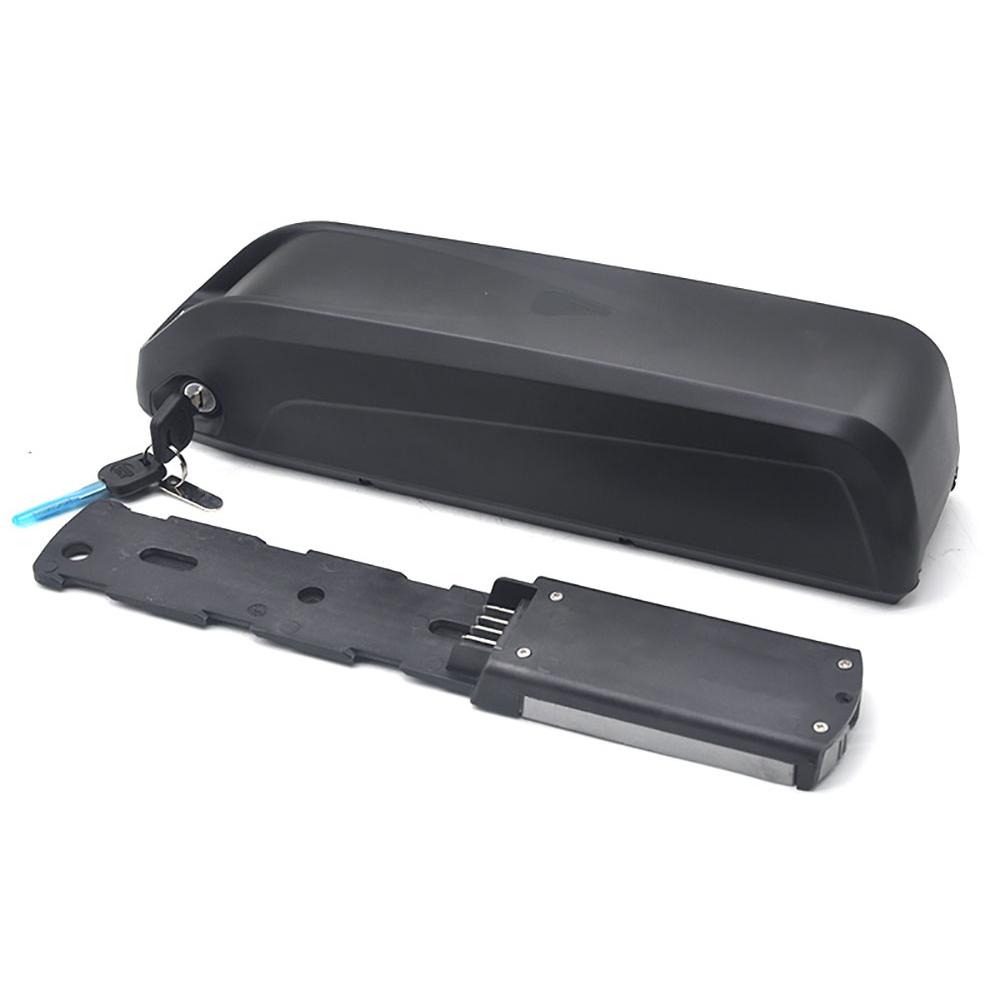

This is protection battery case only. Battery pack need to make separately. It has charging port separately. It has led power indicator and also key locking system for safety.

Model	HL1-36V8Ah	HL1-36V10AH	HL1-36V11.6AH	HL1-36V14AH	HL1-36V13AH	HL1-36V14.5AH	HL1-36V17.5AH
Configuration	10S4P				10S5P
Nominal voltage	36V	36V	36V		36V	36V	36V
Nominal capacity	8AH	10AH	11.6AH	14AH	13AH	14.5AH	17.5AH
Charge voltage	42V	42V	42V	42V	42V	42V	42V
Standard charge current	≤3（A）	≤3（A）	≤3（A）	≤3（A）	≤3（A）	≤3（A）	≤3（A）
Continuous discharge current	≤20A	≤20A	≤20A	≤20A	≤20A	≤20A	≤20A
Discharge cut off voltage	28V	28V	28V	28V	28V	28V	28V
Net weight	3.0kg				3.5kg

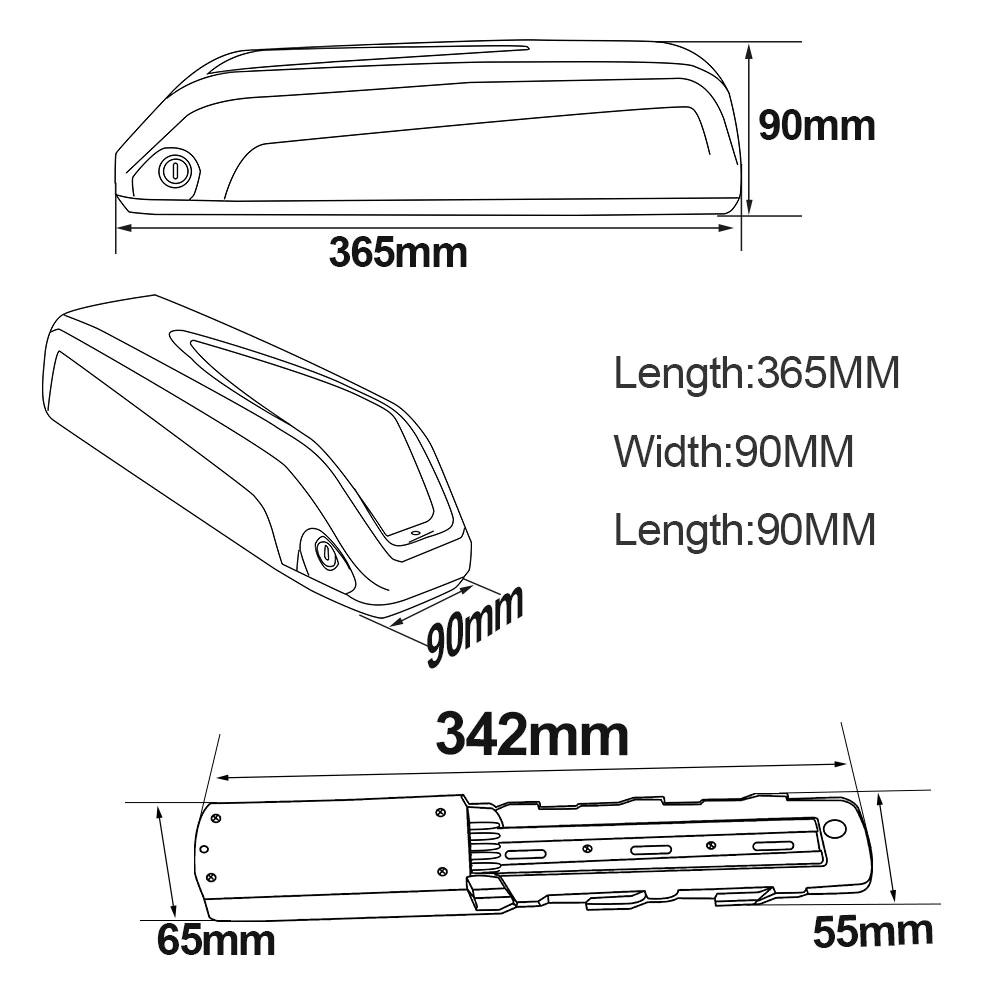

Case dimension	3709090（mm）
Cycle life	800 times
Warranty	1 year
BMS function	over-charge, over-discharge, over-current, short circuit
Fit motors	250-500W
Charge temperature	0 ~ 45°C
Discharge temperature	-20 ~ 60°C
Available colors	Black
Charge method	CC/CV
Charge port	DC
