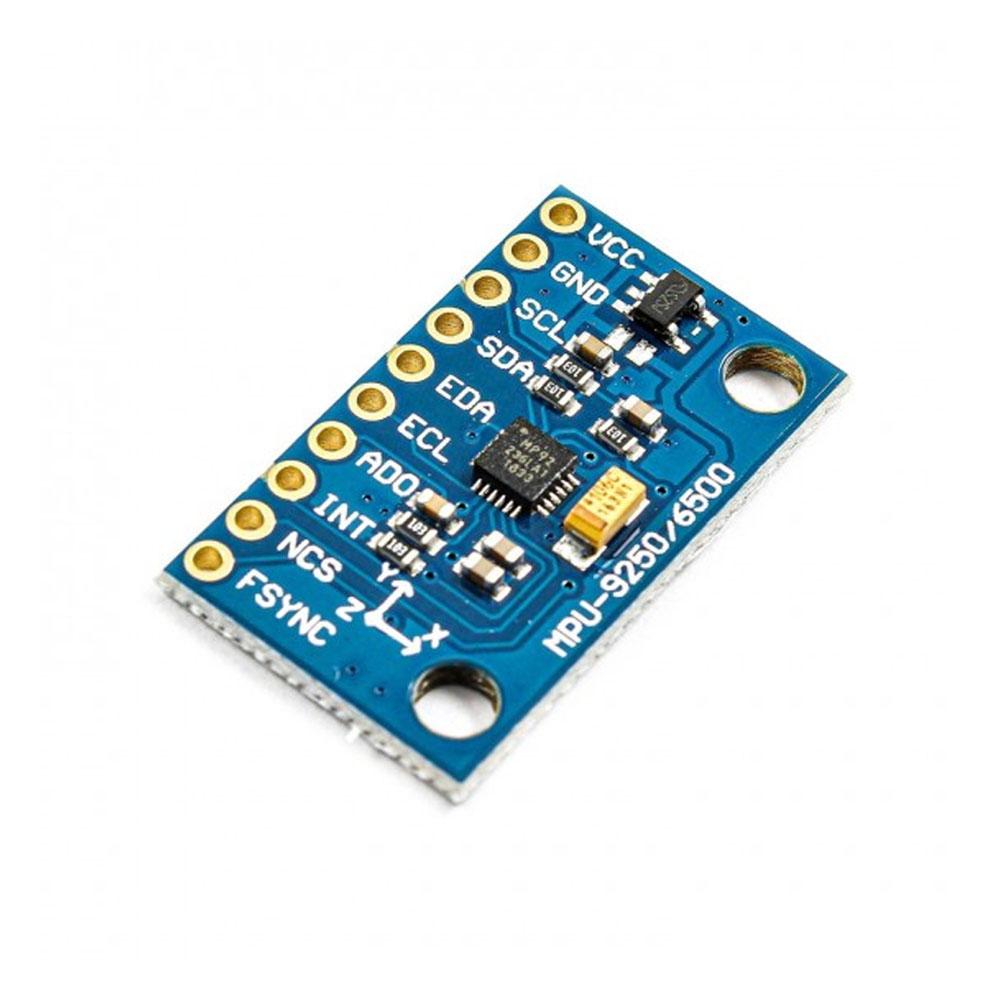

MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module ( Original Chip)

Specifications:

  1. Acceleration, Gyroscope, and Magnetometer
  2. Power Supply: DC3.3V-5V
  3. Chip: MPU9250
  4. Size: 22 mm x 17 mm.
  5. Gyro range : ± 250 500 1000 2000 ° / s
  6. Acceleration range: ± 2 ± 4 ± 8 ± 16g
  7. Magnetic field range: ± 4800uT
  8. 9 DOF modules
SKU: RDNA-13.11

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1,178.82 (Inc. GST)
999.00 (+18% GST Extra)

In stock

In stock

18 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

MPU9250 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module features the MPU-9250, which is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis accelerometer and gyroscope. The other die houses the AK8963 3-Axis magnetometer. Hence, the MPU-9250 is a 9-axis Motion Tracking device that combines a 3-axis accelerometer, gyroscope and magnetometer, and a Digital Motion Processor (DMP). It is based on I2C Address, Address: 0x68 by default, 0x69 if AD0 is pulled high.

The MPU-9250 also features an embedded temperature sensor. This module includes pull-up resistors on the SDA, SCL, and nCS lines, pull-down resistors on the FSYNC and AD0 lines, and an onboard 3.3V voltage regulator allowing you to power the module from 5V sources such as an Arduino. If you desire to power the module from 3.3V you can bridge the solder jumper next to the voltage regulator to bypass the regulator.

Specification

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Battery

General
