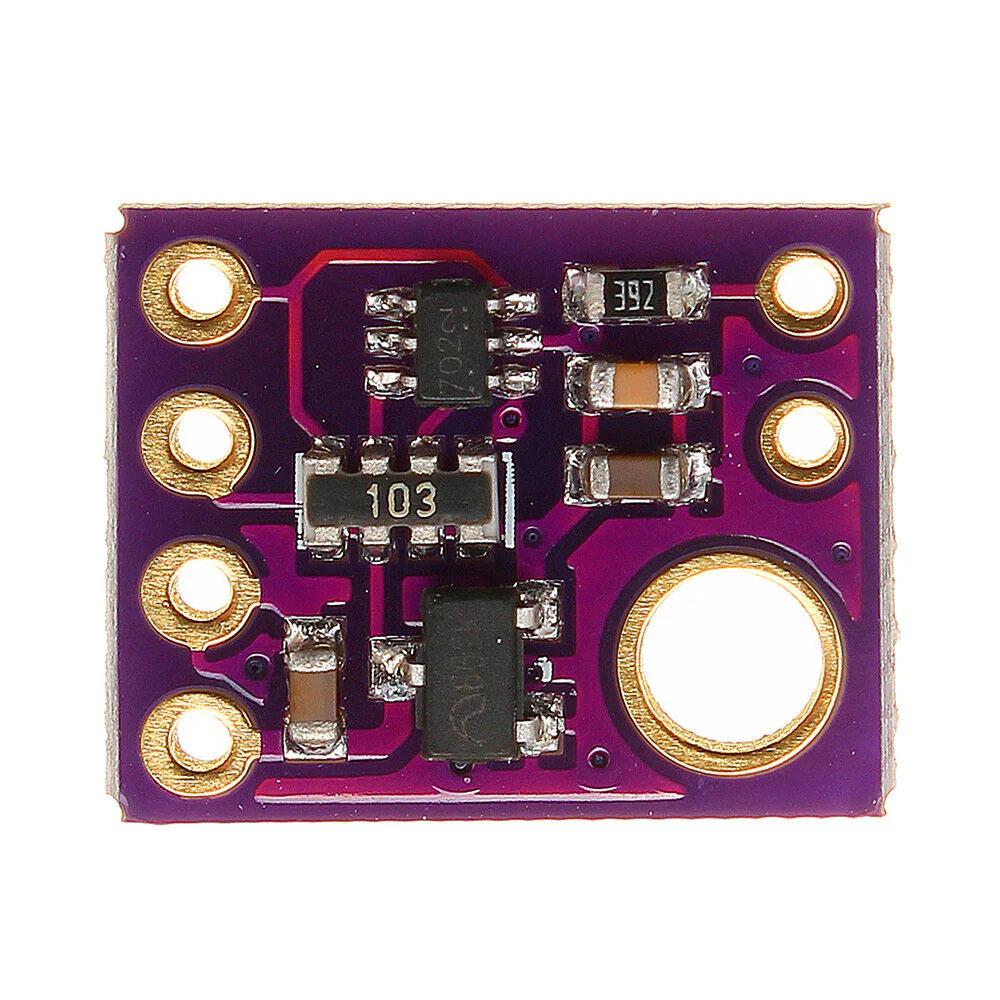

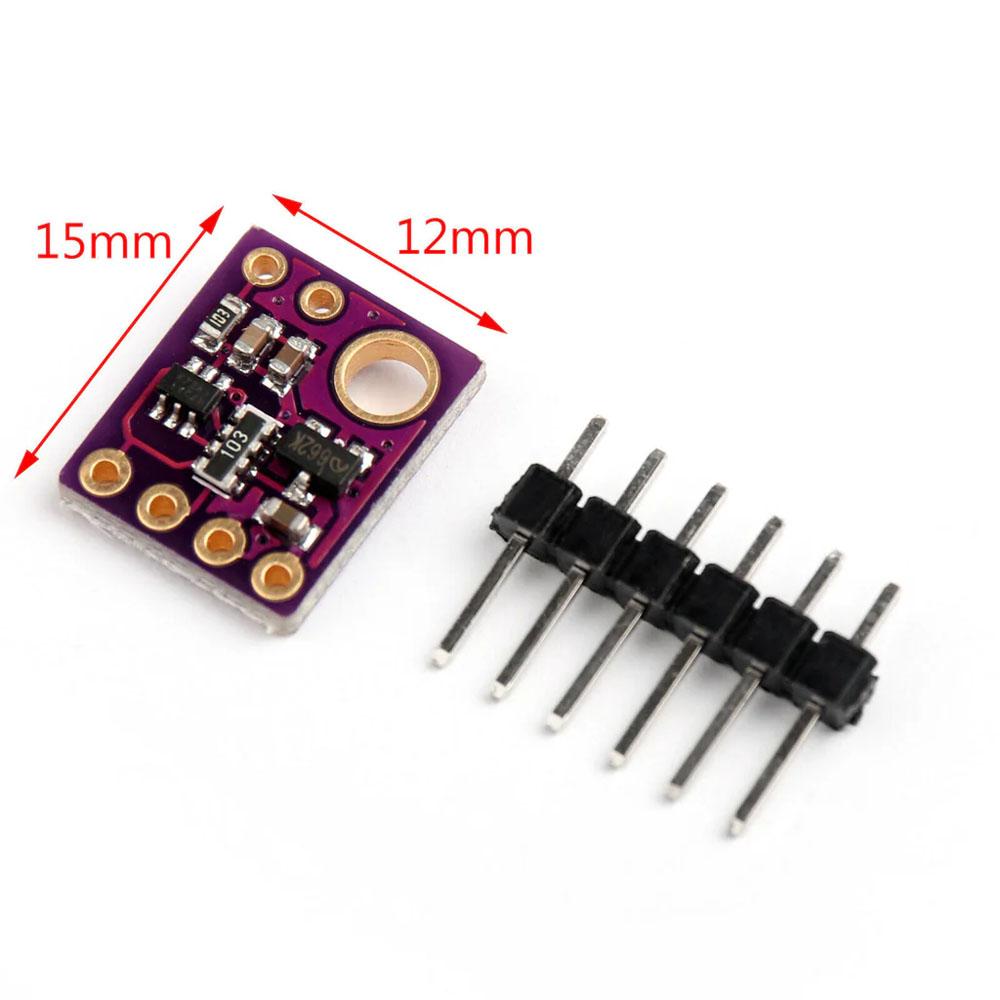

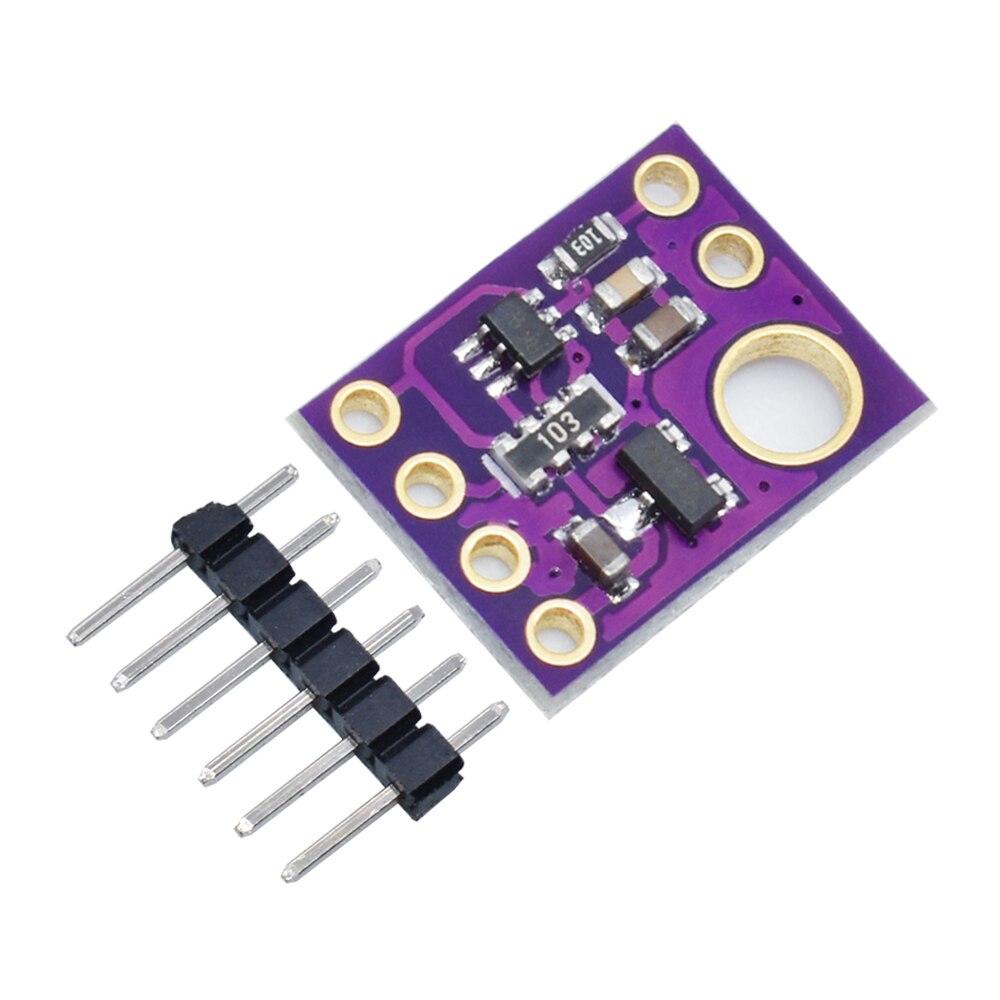

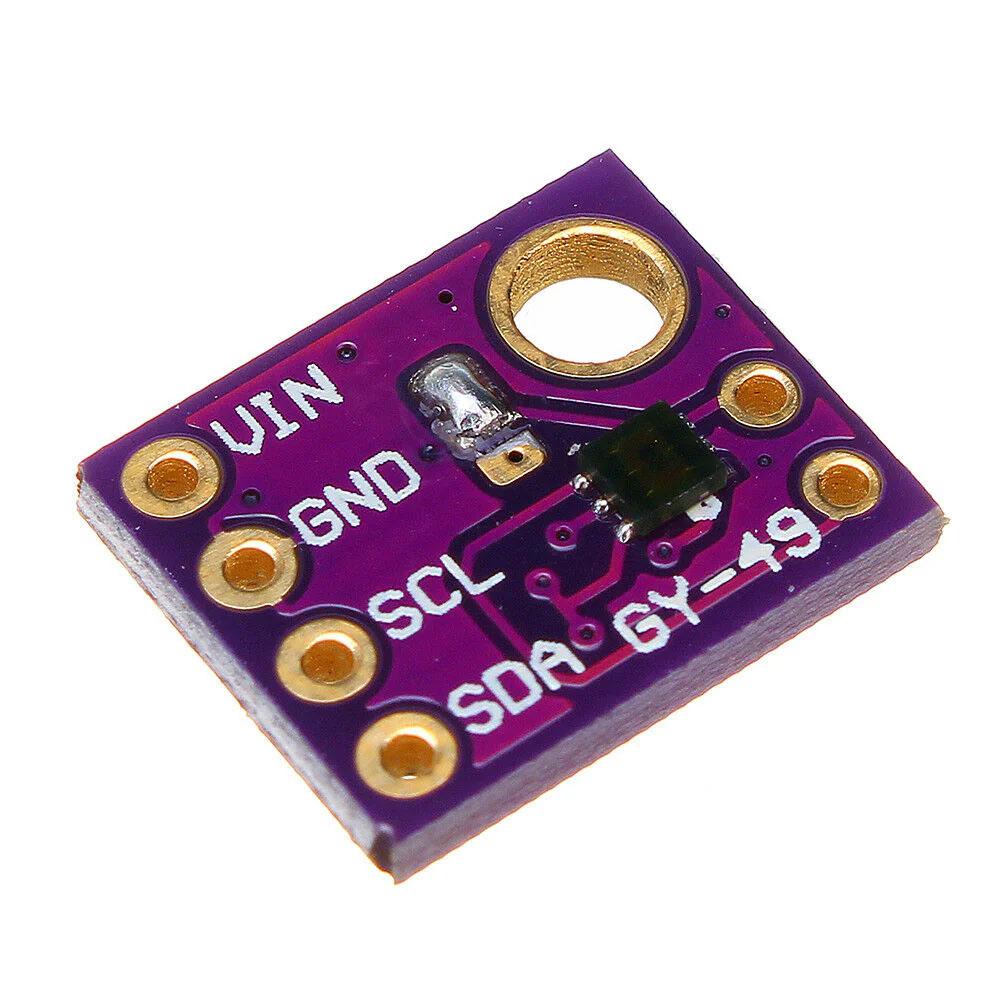

GY-49 MAX44009 Ambient Light Sensor(ALS) Module I2C Interface

The MAX44009 ambient light sensor features an I2C digital output that is ideal for a number of portable applications such as smartphones, notebooks, and industrial sensors. At less than 1μA operating current, it is the lowest power ambient light sensor in the industry and features an ultra-wide 22-bit dynamic range from 0.045 lux to 188,000 lux. Low-light operation allows easy operation in dark-glass applications.

The on-chip photodiode’s spectral response is optimized to mimic the human eye’s perception of ambient light and incorporates IR and UV blocking capability. The adaptive gain block automatically selects the correct lux range to optimize the counts/lux. The IC is designed to operate from a 1.7V to 3.6V supply voltage range and consumes only 0.65μA in full operation.

Applications/Uses:

• mobile phones/smartphones
• Digital lighting management
• Wearable Devices
• security systems
• tablet PCs/notebook computers
• TVs/Projectors/Displays

Tutorials for  GY-49 MAX44009 Ambient Light Sensor(ALS) Module I2C Interface

You may also like :

Arduino Uno

Packing List:

1 x GY-49 MAX44009 Ambient Light Sensor(ALS) Module I2C Interface
