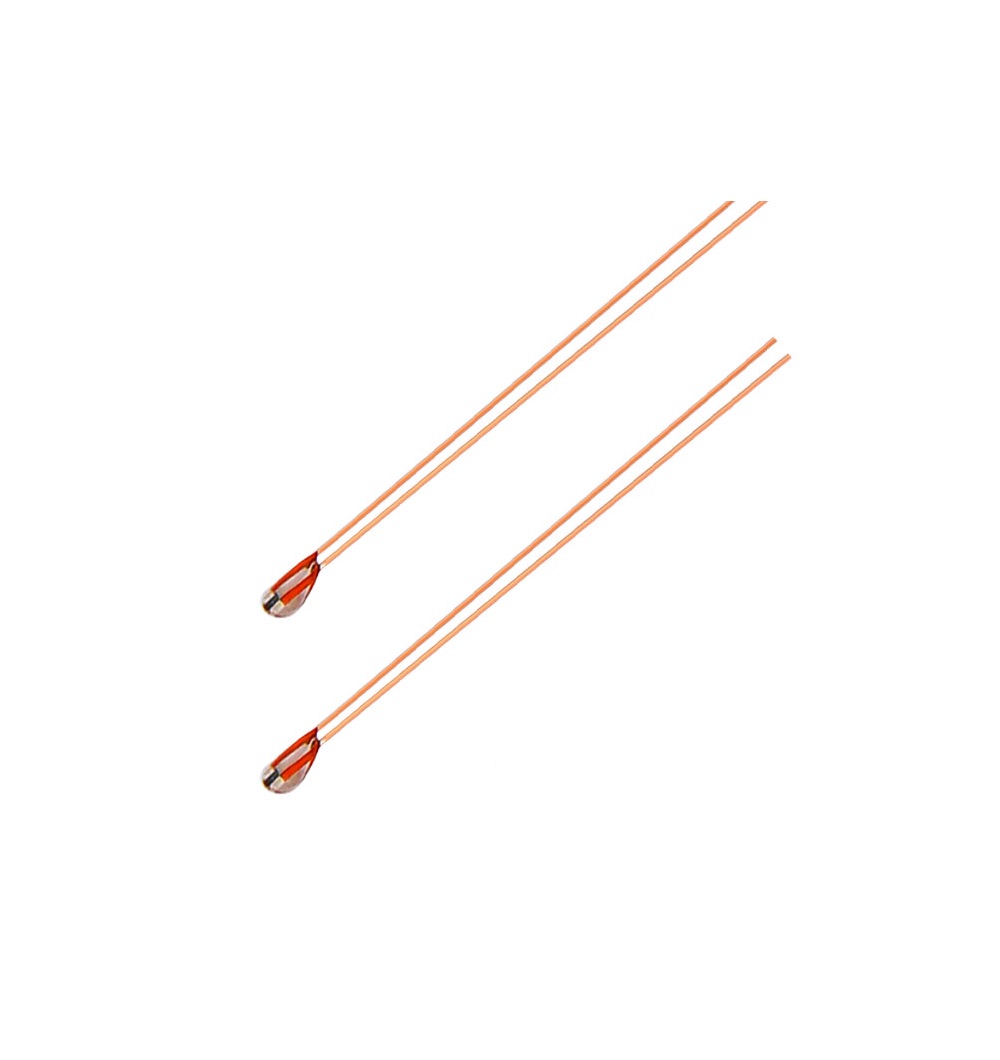

Glass-sealed 100K ohm NTC 3950 Thermistors 1%

Specification:

Temperature range of use: −40°C to 270°C.
Dissipation power factor: ≥5 mW/℃ (static in the air).
100k Ohm NTC Thermistor.
NTC Thin Film Thermistor Cable.
Max power rating: 45 mW
The hot time constant: ≤7 s(in the air)

SKU: RDNA-18.7

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹14.00 (Inc. GST)
₹11.86 (+18% GST Extra)

In stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is Thermistor 100k NTC with 1 Meter Cable Temperature Sensor for 3D Printer Reprap. The thermistor is a thermally sensitive resistor known for exhibiting a large change in resistance with only a small change in temperature.

It is important to note that a thermistor’s change in resistance is non-linear. It follows a pre-defined curve which is provided by the thermistor manufacturer.

Positive thermal coefficient (PTC) will increase in resistance with an increase in temperature, negative ones (NTC) will decrease. But the formula in practice is not linear, so sometimes an accurate table of measurements is better than the linear formula. These measurements can usually be found in the datasheet that accompanies the thermistor.
