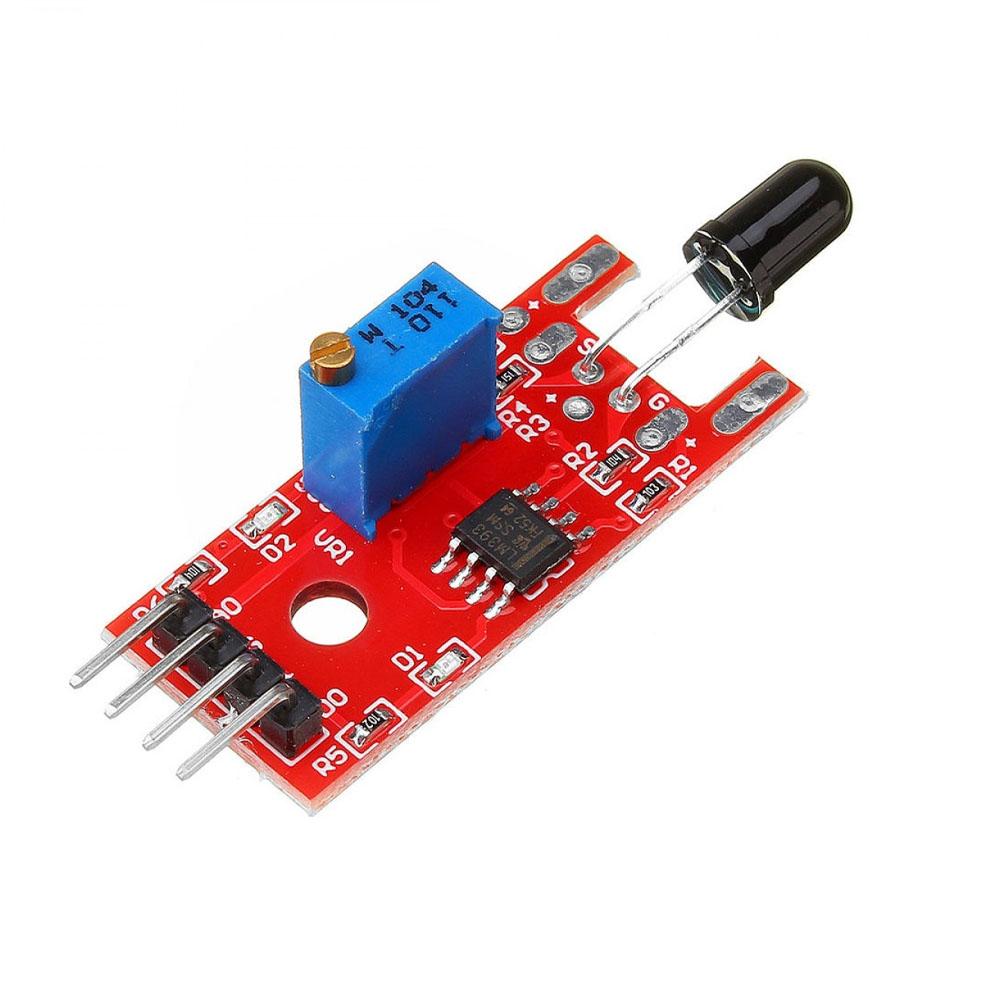

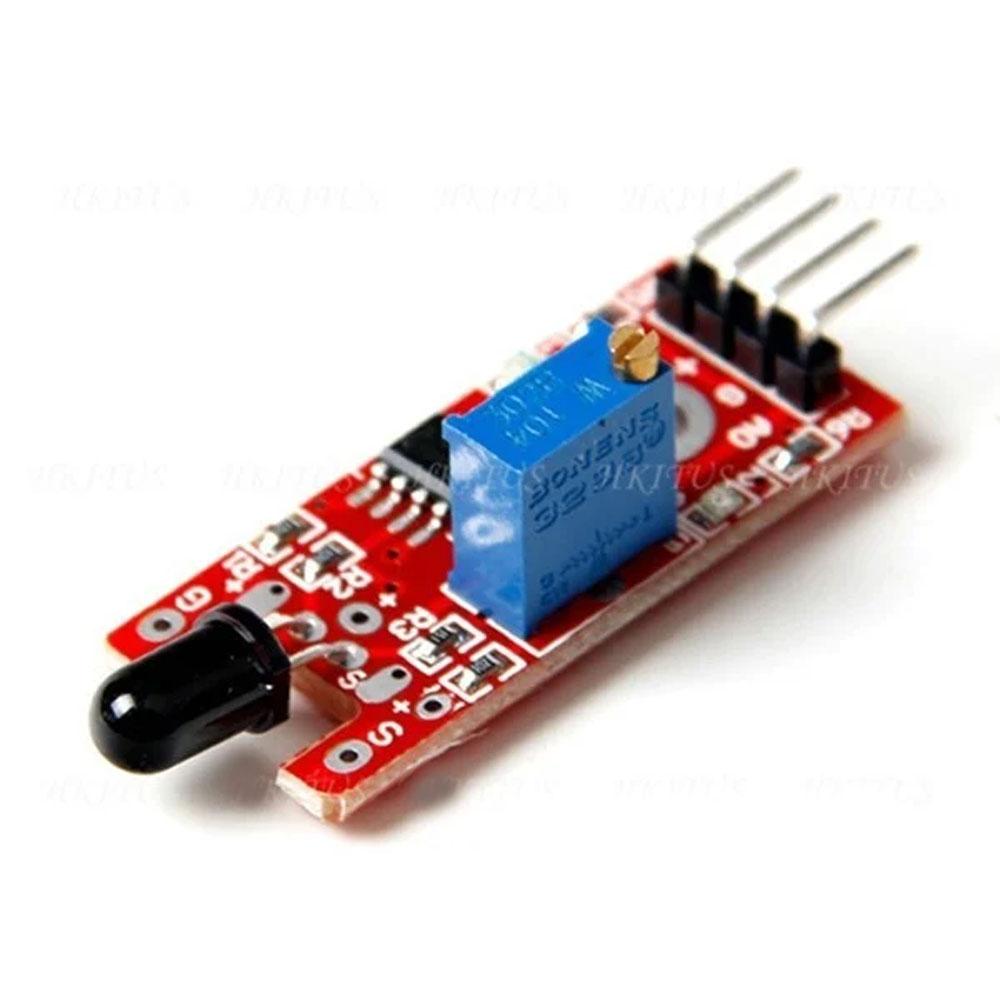

Flame Sensor Module

76.70 (Including GST)

65.00 ( + 11.70 GST)

Specifications:

  • Detects a flame or a light source of a wavelength in the range of
    760nm-1100 nm
  • Detection distance: 20cm (4.8V) ~ 100cm (1V)
  • Detection angle about 60 degrees, it is sensitive to the flame spectrum.
  • Comparator chip LM393 makes module readings stable.
  •  Adjustable detection range.
  • Operating voltage 3.3V-5V
  • Digital and Analog Output
  • DO digital switch outputs (0 and 1)
  • AO analog voltage output
  •  Power indicator and digital switch output indicator

In stock

Purchase this product now and earn 1 Point!

Compare
SKU: RDNA-R3.27 Categories: , Tags: ,

Share this product

Description

This module is sensitive to the flame and radiation. It also can detect ordinary light source in the range of of a wavelength 760nm-1100 nm. The detection distance is up to 100 cm.
The Flame sensor can output digital or analog signal. It can be used as a
flame alarm or in fire fighting robots.

Datasheet available here.
