ESP8266 Wi-Fi Robot Kit with Programming Code For Kids

Specifications:

Communication : ESP8266 D1 Development Board
Input voltage of logic part: 6 ~ 7V
Maximum output current : 2A
Maximum power consumption : 25W (T=75°C)
Programming language: CC++
Car Structure: Acrylic
Motor voltage range: 1-6V
Motor shaft length: 10mm
Speed: 6.0V 100rpm/min
Drive mode: motor control is driven by L298N
Control mode: programming control
Assembly status: Kit disassembled
Instructions Manual: Yes
Package: Robot Kit for Arduino
Support APP control: Android and iOS
Model Number: ZYC0057
Brand name : TSCINBUNY
Code: Yes
Tutorial: Yes
Professional After-sales Support
Starter/Beginner: Yes

SKU: RDNA-F145.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹3,098.99.Current price is: ₹2,634.15. (Inc. GST)
₹2,232.33 (+18% GST Extra)

Only 2 left in stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

14 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This product is an intelligent car developed based on ESP8266 D1, with Wi-Fi remote control function and ultrasonic obstacle avoidance function. There are mainly 3 modules, respectively: the main control module, motor drive module, ultrasonic sensor module. Through the ultrasonic sensor ranging, encountered obstacles, automatic planning of driving route.

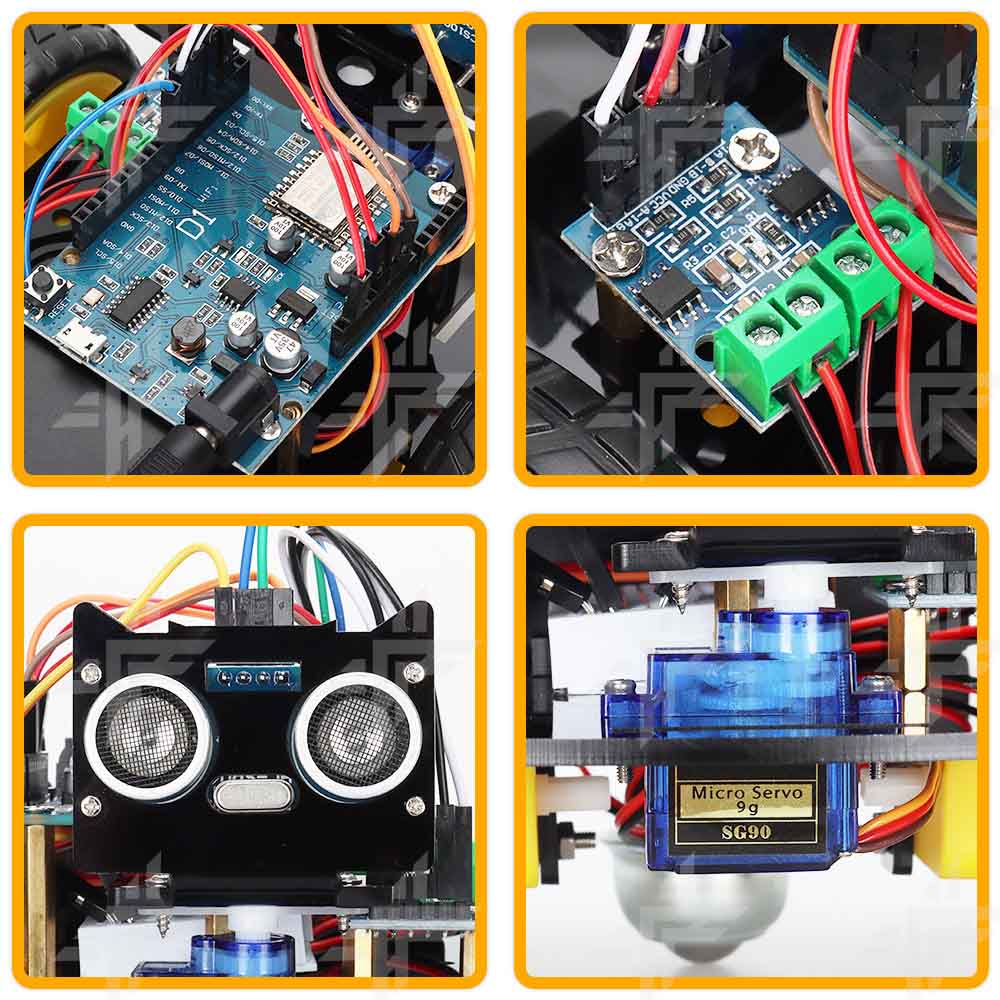

The main control board adopts ESP8266 D1 development board.
Motor drive module uses L9110S module to drive DC motor.
ESP8266 Wi-Fl wireless module, connect to the Wi-Fl signal through the mobile APP, send control instructions, and realize the motion control of the smart car.
The ultrasonic sensor module is HC-SR04 module, using ultrasonic, The wave-ranging sensor measures the distance between the car and the obstacle, and changes the direction when it is less than the set obstacle avoidance value to realize the obstacle avoidance function.
The use of acrylic plate as the car chassis, light and thin and not easy to deformation.

Product Features:

Multi-function Ultrasonic obstacle avoidance control functions.
Simple assembly: no need to solder the circuit, easy to complete the assembly.
High strength: strong material, high-quality trolley wheels.
High extension: Rich interfaces to expand other sensors and modules.
Basic programming: Code based on C language; and mind + graphical programming.
The main control board adopts atemga328P as the core.

The infrared function code is programmed into the product at the factory, which is convenient for customers to use directly.

Advantage:

1. A wide range of functions, three-way tracking, intelligent obstacle avoidance and so on

2. Easy to assemble, No circuit soldering required

3. High-quality materials and wide range of interfaces

4. Uses basic code of C language

5.RP2040 is used as the core of the main control board

6.The trolley chassis is designed with a load impulse protection circuit; no need to remove the battery to charge.

Improve your digital skills:

Computational Thinking Skills-Embedded System Skills (Electronic Hardware and Software)-Programming Skills-Mechanical Skills-Robotics Skills

By having this kit, you will learn the following:

1) What is Embedded System and Robotics.

2) What is open source programming and its components.

3) How to control outputs with open source programming.

4) How to read inputs with open source programming.

5) How to make a robot to avoid obstacles.

6) How to make a line following robot, and many more!

What will students and children learn?

The basics of electronic circuit The machine interface method Solving and debugging programming problems Software architecture practical robotics using IED Programming creativity Programming practices Programming collaboration Step-by-step tutorials, user manuals and instructions

For Downloading Program’s And Manual

NOTE: This robot is without batteries, and the battery is sold separately, and the Battery type is 18650 3.7v, with no capacity limit, there is a link for downloading instructions, if you can’t find it, please do not hesitate to contact us.

* Product Images are shown for illustrative purposes only and may differ from the actual product.

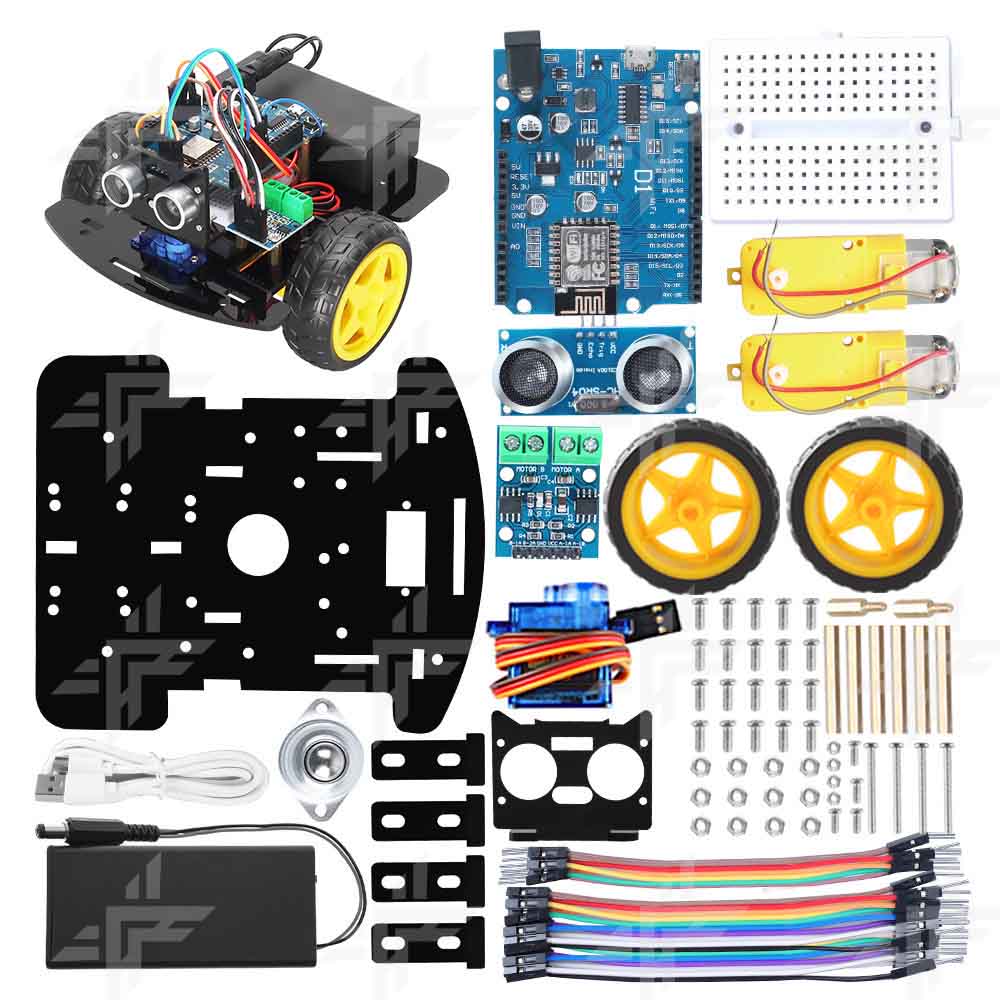

Packing Include :
