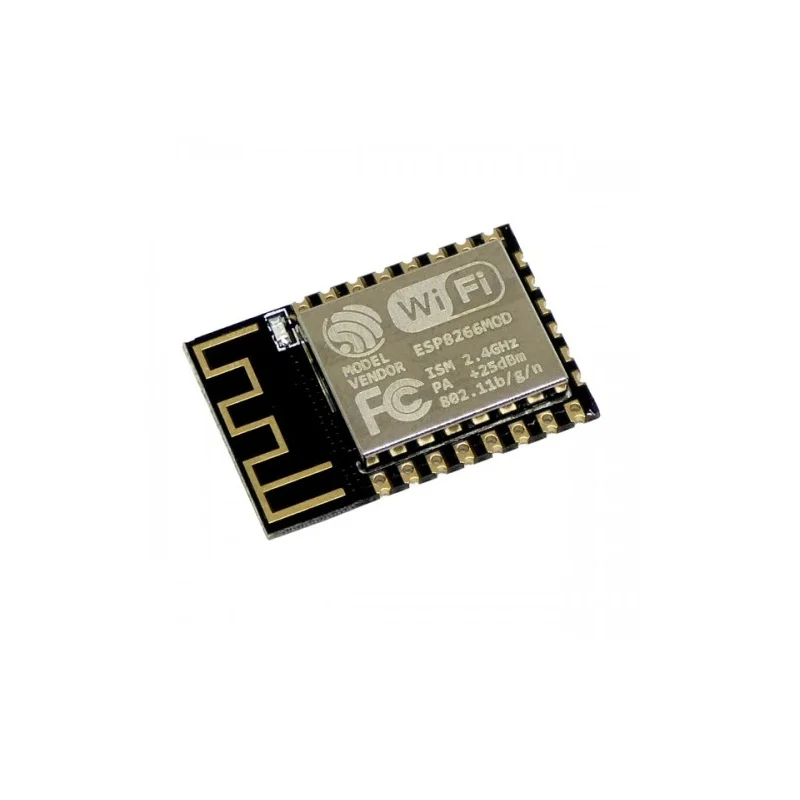

ESP-12F ESP8266 Wifi Wireless IoT Board Module

139.00 (Inc. GST)117.80 (+18% GST Extra)

  1. Communication interface voltage: 3.3V
  2. Working current: 240mA(MAX)
  3. Serial port baud rate: 115200 (default), can be modified to other values by AT command
  4. Serial communication format: 8N1
  5. Wireless Network Mode: station / softAP / SoftAP + station
  6. Wireless criteria: 802.11 b / g / n
  7. WIFI @ 2.4 GHz, support for WPA / WPA2 security mode
  8. +19.5dBm output power

Out of stock

Notify Me when back in stock

Compare
Category:

Share this product

Description

The Latest ESP-12F ESP8266 Wifi Module AP & Station Remote Serial Wireless IoT Board is an integrated chip designed for the needs of a new connected world. It can handle all the necessary overhead for communicating with your network, such as TCP/IP stack and communicating with your 802.11 networks.

It is completely addressable over SPI and UART protocols allowing you to connect your sensors or project directly to it through its GPIO’s. ESP8266 is a low-cost Wi-Fi chip with full TCP/IP stack and MCU (Micro Controller Unit) capability.

ESP8266 Serial Wifi Wireless Transceiver Module is a self-contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. ESP8266 Serial Wifi Wireless Transceiver Module is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor.

Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The ESP8266 module is an extremely cost-effective board with a huge, and ever-growing, community.

ESP8266 Serial Wifi Wireless Transceiver Module has a powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts.

They are collectively referred to as “ESP-xx modules”.

It improved on the Following:
  1. Peripheral circuit
  2. The four laminates plate process
  3. Enhanced impedance matching
  4. Stronger WiFi signal output
  5. Anti-jamming ability
  6. PCB antenna redesigned after professional laboratory testing
Corresponding Interface :
  1. SDIO 2.0, SPI, UART
  2. 32-pin QFN package
  3. Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
  4. Integrated RISC processor, on-chip memory, and external memory interfaces
  5. Integrated MAC/baseband processors
  6. Quality of Service management
  7. I2S interface for high fidelity audio applications
  8. On-chip low-dropout linear regulators for all internal supplies
  9. Proprietary spurious-free clock generation architecture
  10. Integrated WEP, TKIP, AES, and WAPI engines
  11. Features :

    1. Compatible with ESP-12(ESP-202)
    2. WIFI @ 2.4 GHz, support for WPA / WPA2 security mode
    3. It is very easy to develop projects with AT commands
    4. Surface Mount Package with 2mm Pitch Pads
    5. Mulitple GPIO’s for all your sensor needs
    6. Wi-Fi Direct (P2P), soft-AP
    7. Integrated TCP/IP protocol stack
    8. Integrated TR switch, balun, LNA, power amplifier and matching network
    9. Integrated PLL, regulators, DCXO and power management units
    10. +19.5dBm output power
    11. Power down leakage current of <10uA
    12. Integrated low power 32-bit CPU could be used as an application processor
    13. SDIO 1.1/2.0, SPI, UART
    14. STBC, 1×1 MIMO, 2×1 MIMO
    15. A-MPDU & A-MSDU aggregation & 0.4ms guard interval
    16. Wake up and transmit packets in < 2ms
    17. Standby power consumption of < 1.0mW (DTIM3)
    18. Both SMD and Inline package are available, and the pin pitch is 2.0mm.

    Package Includes :

    1 x Latest ESP-12F ESP8266 Wifi Module
