Click to enlarge

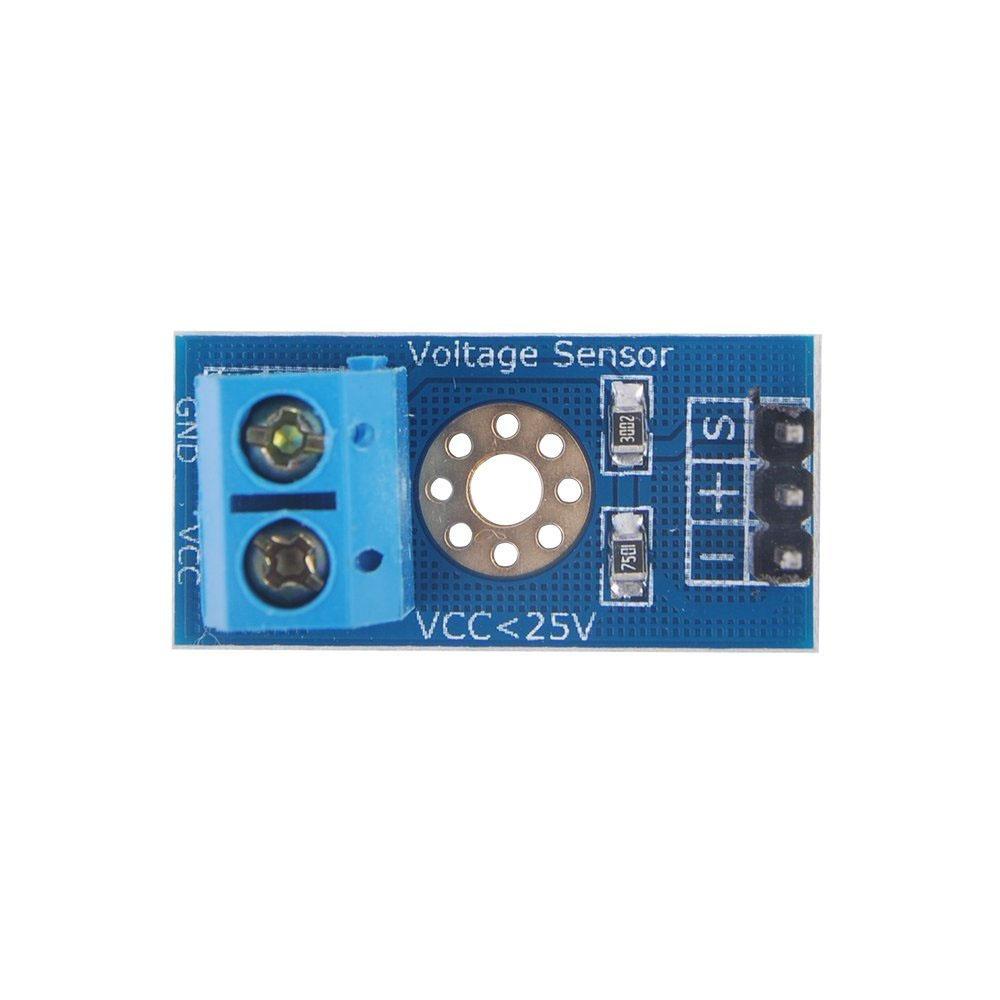

DC Voltage Sensor 0V to 25V

Specifications:

  • Input Voltage: 0 to 25V
  • Voltage Detection Range:  0.02445 to 25
  • Analog Voltage Resolution: 0.00489V
  • Needs no external components
  • Easy to use with Microcontrollers
  • Small, cheap and easily available
SKU: RDNA-266

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹100.30 (Inc. GST)
₹85.00 (+18% GST Extra)

In stock

In stock

Compare
Add to wishlist
15 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

DC Voltage Sensor works with Arduino analog input voltages up to 5 v, the voltage detection module input voltage should not exceed 5Vx5=25V (if using 3.3V systems, input voltage should not exceed 3.3Vx5=16.5V). Most AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V.

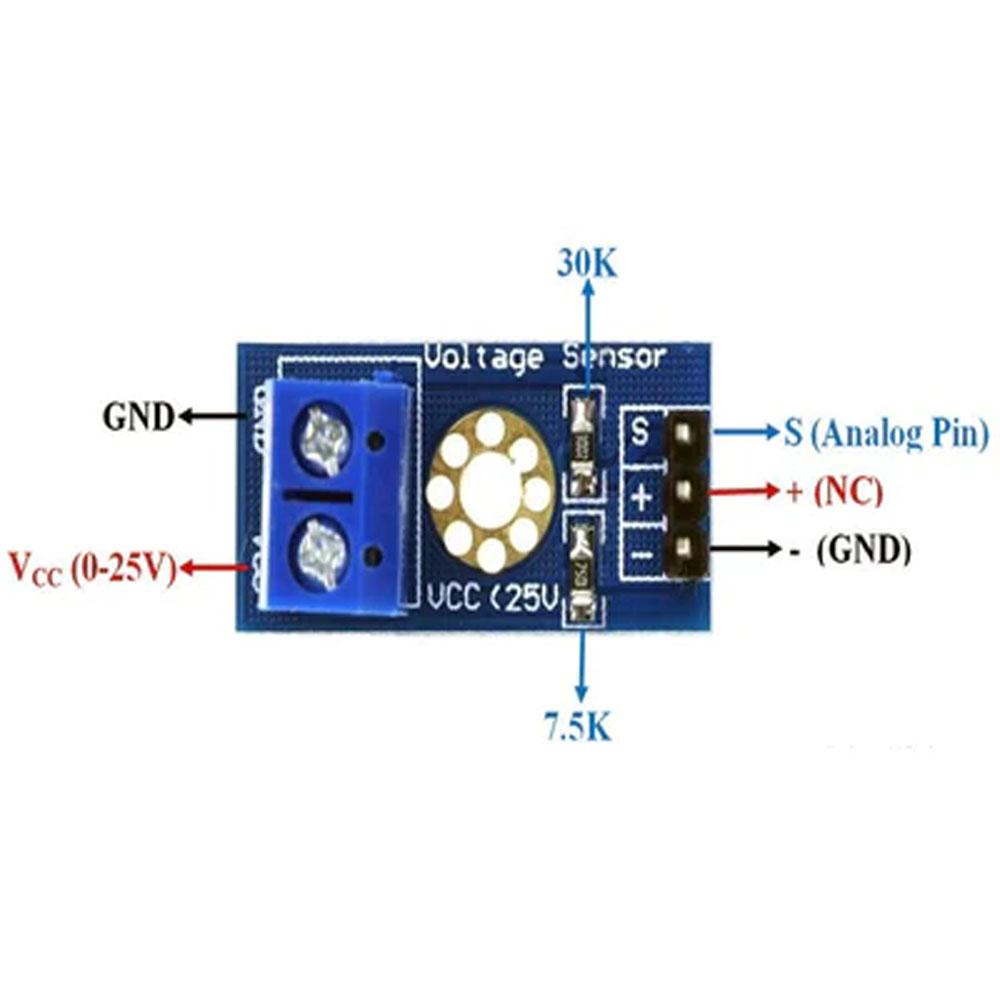

Connecting

  • Pin Vcc in the Sensor –> +5V in Arduino
  • Pin GND in the Sensor –> GND in the Arduino
  • Pin S in the Sensor –> Analog pin in Arduino such as A1

You may also look for:

for tutorial .click here.



Specification

Overview

Arduino Code

int val11;
int val2;

void setup()
{
pinMode(LED1,OUTPUT);
Serial.begin(9600);
Serial.println(“www.tdegypt.com”);
Serial.println(“Voltage: “);
Serial.print(“V”);
}

void loop()
{
float temp;
val11=analogRead(1);
temp=val11/4.092;
val11=(int)temp;
val2=((val110)/10);
Serial.println(val2);
delay(1000);
}
