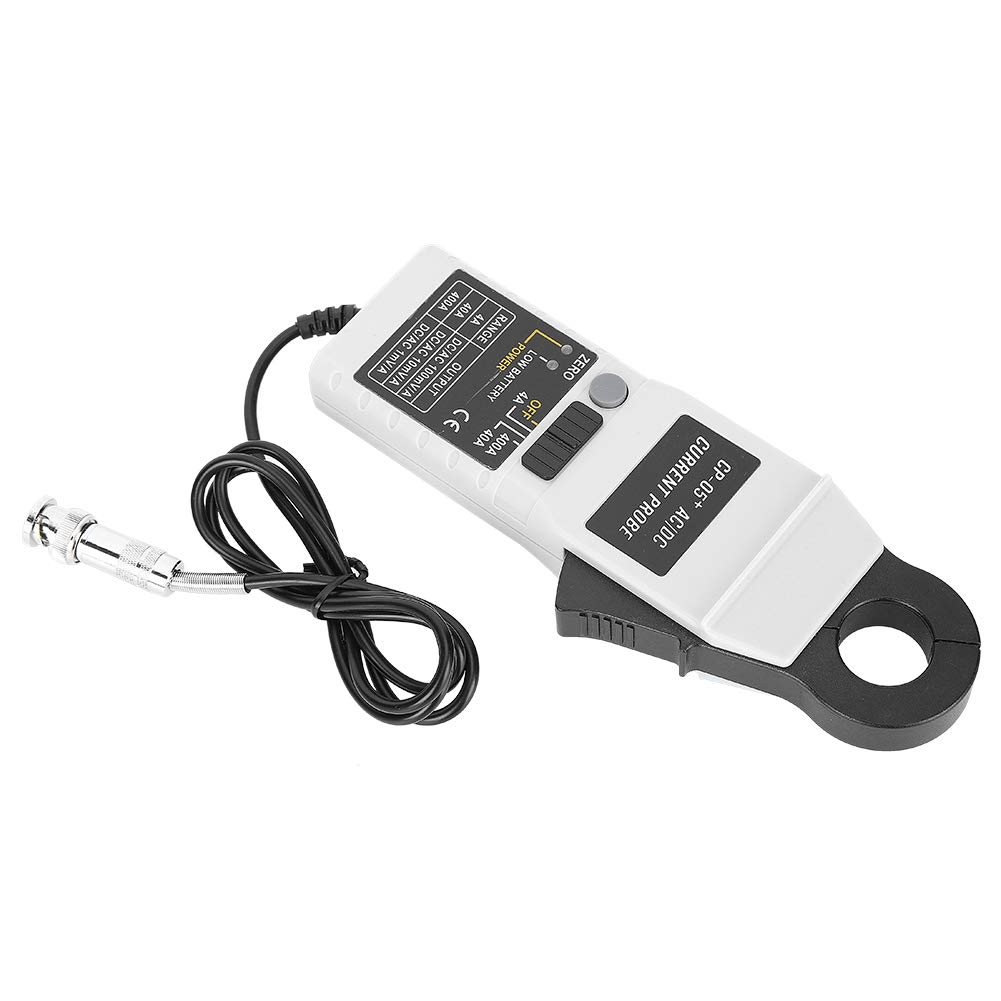

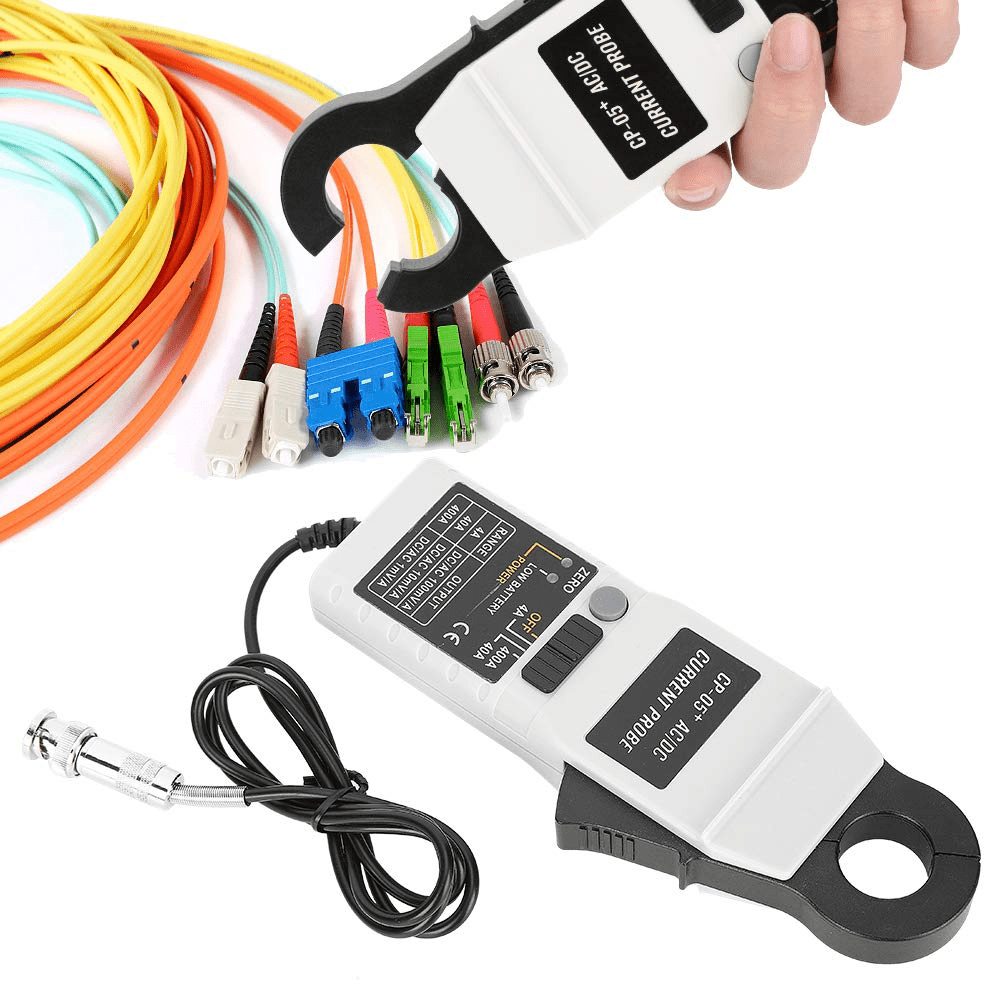

CP -05 Clamp Current Probe – High performance High Detection AC/DC Clamp Current Probe 200 KHz ,400 A

24,190.00 (Inc. GST)20,500.00 (+18% GST Extra)

Specifications:

  • Model : CP-05
  • Test Range  : 1mA – 400A
  • Jaw Size  : 23mm (max)
  • Bandwidth  :  200KHz  (±3dB)
  • Power Supply : 9V
  • Operating Temperature  : 0℃ to 50℃
  • Operating Humidity  : 15% to 70% RH
  • Dimension (W x H x D) : 180 x 30 x 44mm

Available on backorder

Notify Me when back in stock

Compare

Share this product

Description

Features:

  • Adopt of amorphous alloy core, with high performance, low loss
  • Various current test range, 4A, 40A, 200A, 200-400A test range are available
  • Band wide up to 200KHz, low battery indication
  • Auto zero at power on, relative zero correction
  • Low noise level, and high detection accuracy

Uses

Package Includes:

1 x  Clamp Current probe , CP -05 Current probe – High performance High Detection AC/DC Clamp Current Probe 200 KHz ,400 A
