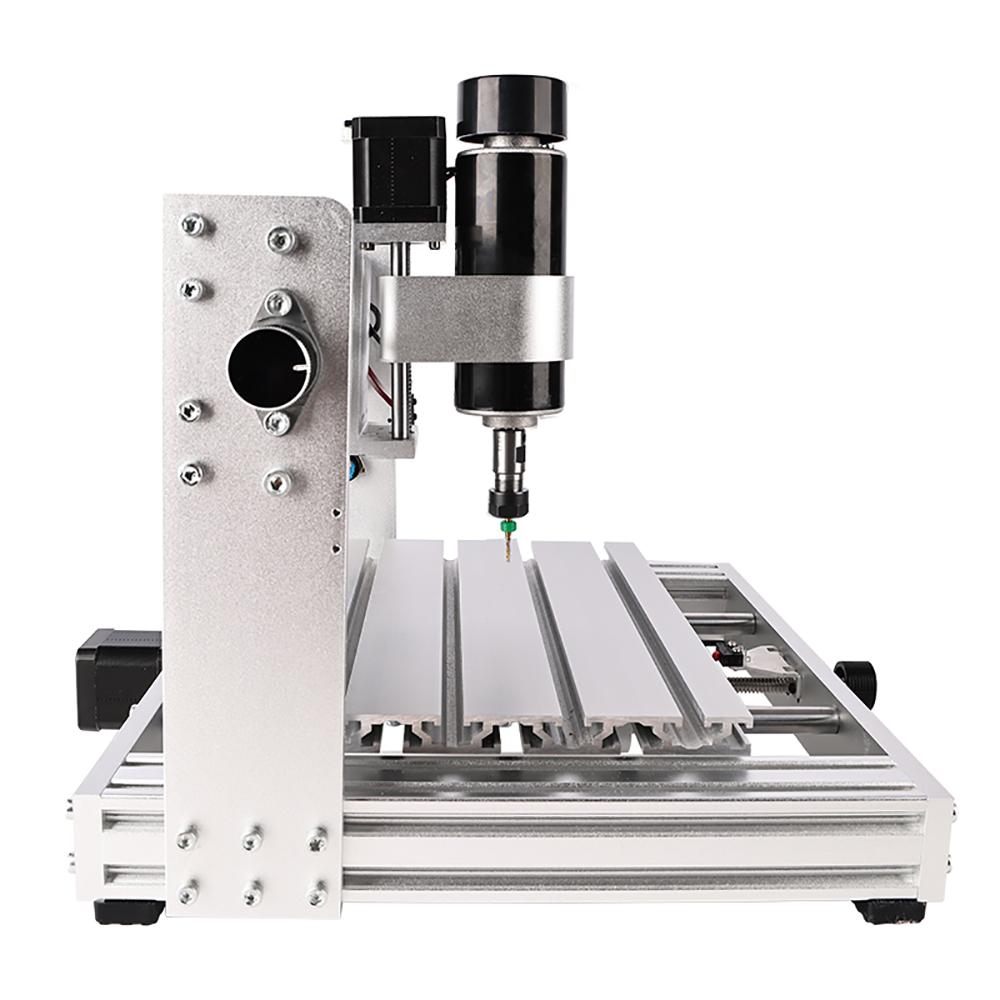

CNC 3018 PLUS 500W Spindle DIY CNC Engraving Machine for All Metal Frame for both Non-Metal and Soft Metal Carving Engraving Cutting Aluminum Copper Wood Pvc Pcb Carving

37,170.00 (Inc. GST)31,500.00 (+18% GST Extra)

Specifications:

  • Model: CNC3018
  • Material: Aluminum
  • Main Color: Silver
  • Power Supply: AC 110-240V
  • Output 48V 10A
  • Plug Type: US + EU
  • Supported OS: Windows XP / Win 7 / Win 8 / Win 10 (32/64)
  • Supported Formats: jpg / bmp / png
  • Communication Port: Micro USB
  • Engraving Area: 300 x 180 x 45mm
  • Frame Size: 400 x 330 x 240mm(Not include the motor protrusion part)
  • Table-board Size: 300 x 180mm
  • Spindle: 48V 11000 RPM 500W

Only 1 left in stock

Compare
SKU: RDNA-NP11.3 Category:

Share this product

Description

This is Upgraded from CNC 3018 PRO, All metal frame desktop CNC router, total weight 11KG compares to 3018 PRO’s 8KG. Designed for Non-Metal and Soft Metal material carving, cutting and hole Revolving with higher Power: For CNC, this Kit is equipped with 300W spindle with 52mm diameter. It NOT include laser module but recommended to be used with 5.5W, 15W or 30W with a 40 or 52 mm diameter.

CONTROL UNIT: CRONOS V4.0 Motherboard], 1.1 GRBL Support, upgraded version, Input voltage: 12-36V; Laseroutput: 12V ; 775 motor output 24V. [driver]: A4988 /Support stepper motor: 12V, maximum current of 2A ; recommended within 1.5A ; Support stepper motor 42, 57; [Master chip]: Atmel 328P (arduino nano). Laseroutput 2P/3P supports pwm TTL function

INPUT: PC through USB and OFFLINE CONTROLLER, the 1.8 Upgraded offline controller makes the operation without depending on PC, effcient and comfortable by the use of TF card reader. Supported Graphic files as PLT, BMP, JPG, PNT, TIP, PCX, TGA, ICO, DXF

OUTPUT: It features : Table size 300 x 180 x 45mm (12 x 7 x 2 inch ); Drill Bits: Diameter 3. 17 mm, Tip 0. 1mm; Length 30mm, 20 degree Screw: T8 stainless steel lead screw with diameter of 8mm; 3pc two-phase step motor 1. 3a 0. 25nm.

SOFTWARE: Grbl, standard open source software for Arduino based CNC control card, runs under Microsoft Windows, XP / Win 7 / Win 8 / Win 10 , We have it and User Manual, Video Teaching along in package, you can also easily obtain the resources as you need assistance due to Grbl’s popularity.

Package Includes:

1 x CNC 3018 PLUS 500W Spindle DIY CNC Engraving Machine for All Metal Frame for both Non-Metal and Soft Metal Carving Engraving Cutting Aluminum Copper Wood Pvc Pcb Carving
