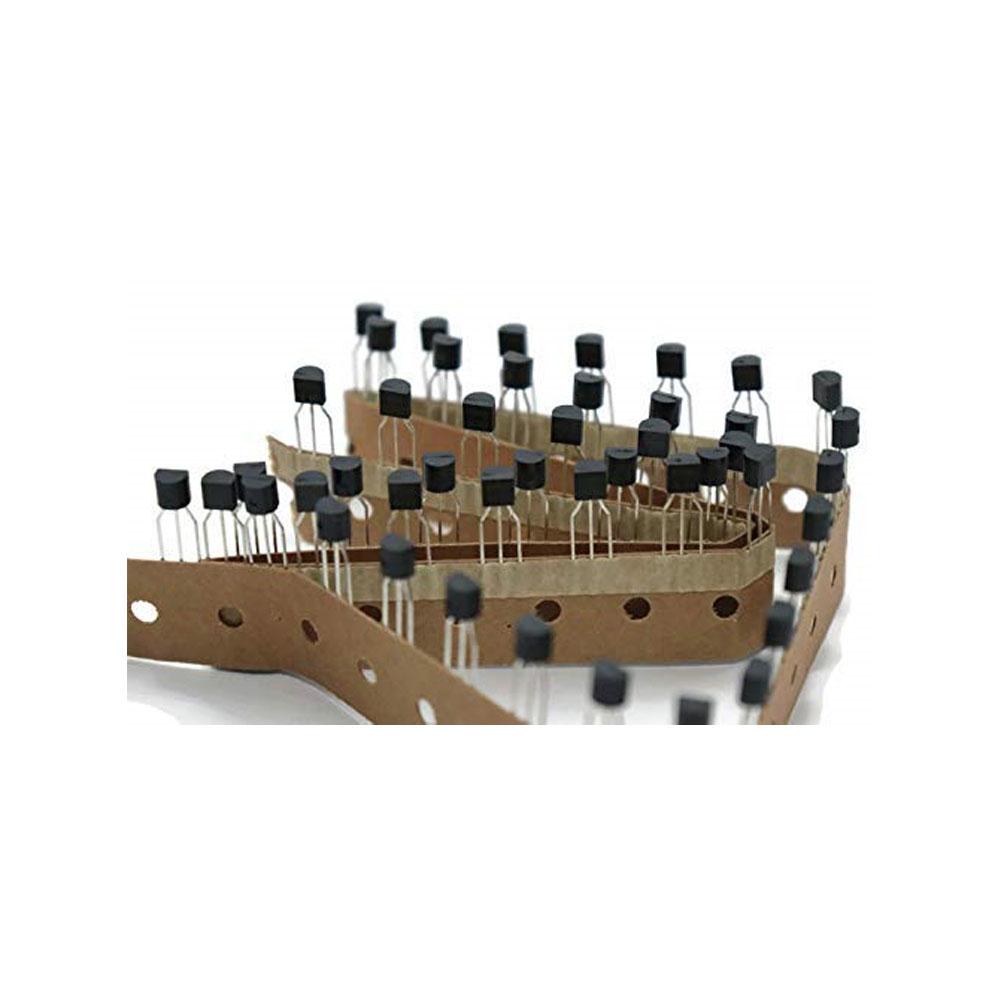

C1815 GR331 Transistor

Specifications:

Package Type: TO-92
Transistor Type: NPN
Max Collector Current(I_C): 150mA
Max Collector-Emitter Voltage (V_CE): 50V
Max Collector-Base Voltage (V_CB): 60V
Max Emitter-Base Voltage (VEBO): 5V
Max Collector Dissipation (Pc): 400 miliWatt
Max Transition Frequency (fT): 80 MHz
Minimum & Maximum DC Current Gain (h_FE): 70 – 700
Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

SKU: RDNA-122.9

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹9.44 (Inc. GST)
₹8.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

15 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

C1815 is a widely used transistor, it is used in commercial and educational projects. It is designed for audio frequency amplification and high-frequency OSC. The collector-base voltage of the transistor is 50V therefore it can be easily used in circuits using below 50V DC. The collector current of the transistor is 150mA therefore it can drive any load below the 150mA limit. The collector power dissipation and DC current gain values of the transistor are quite good due to which it is ideal to use in audio amplification and electronic signal amplification purposes. Moreover, it can also be used as a switch to drive loads under 150mA.
