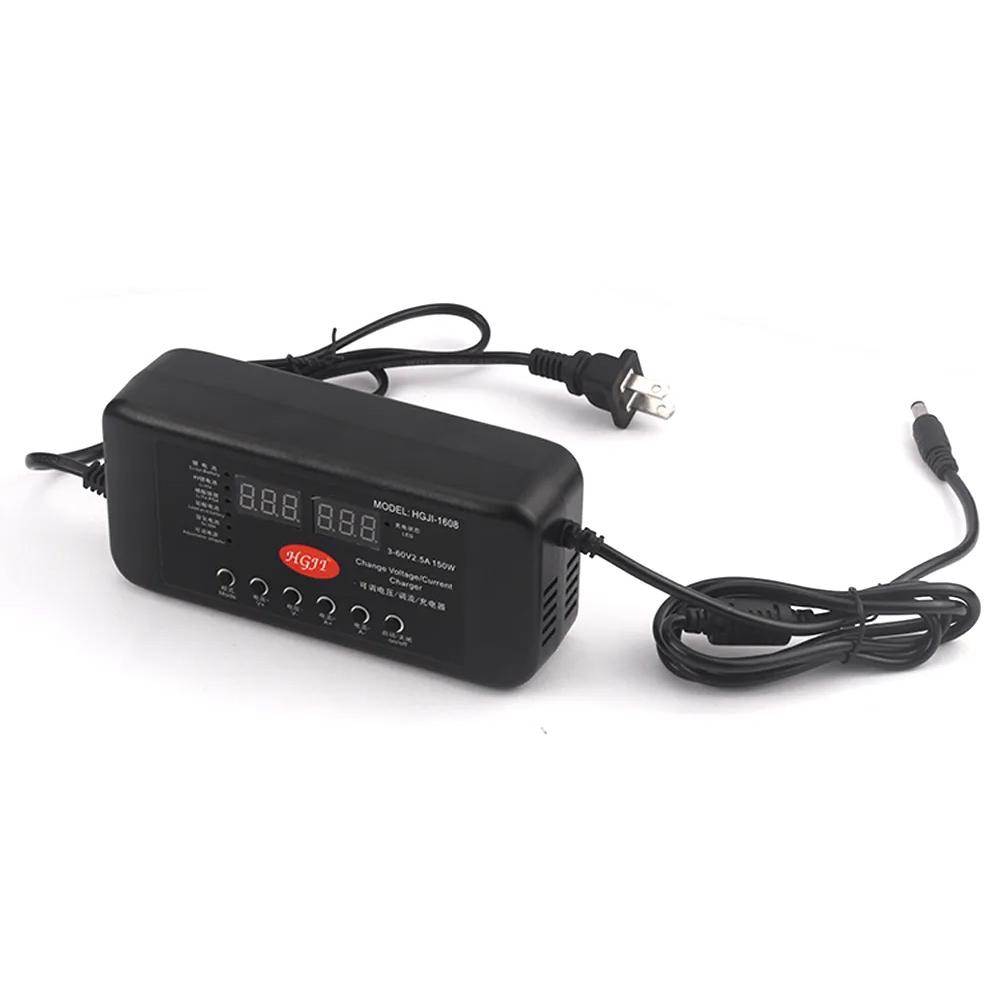

Adjustable Power Adapter Universal Charger 3V-60V 150W With Display Screen Charger 2.8V 14V 28V 36V 48V 56V 60V Battery Charger

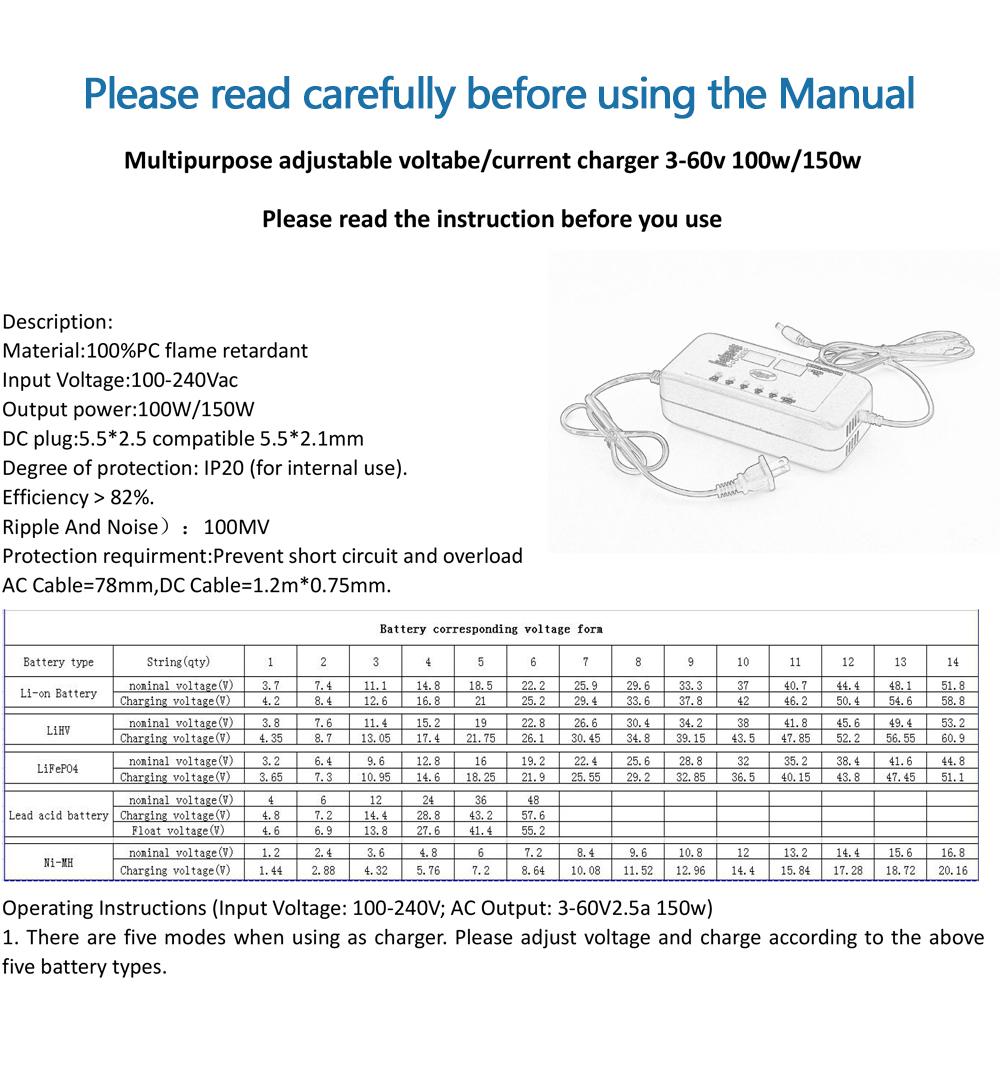

Operating Instructions (Input Voltage: 100-240V; AC Output: 3-60V2.5a 150w)

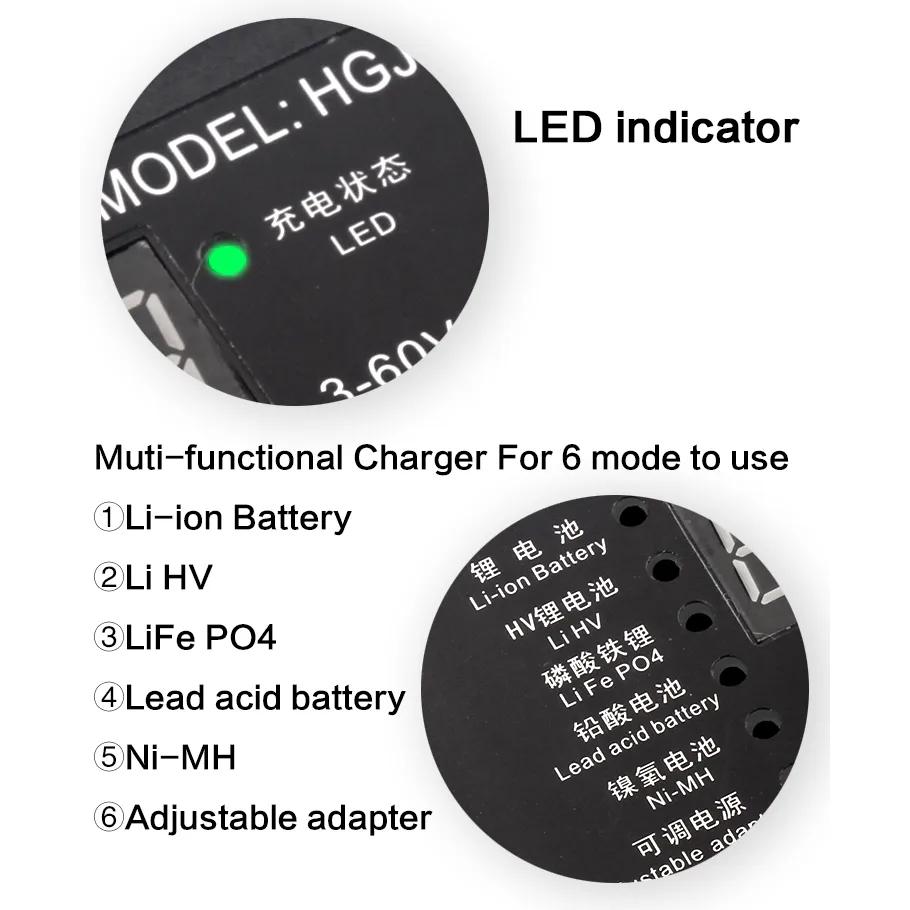

1. There are five modes when using as charger. Please adjust voltage and charge according to the above five battery types.

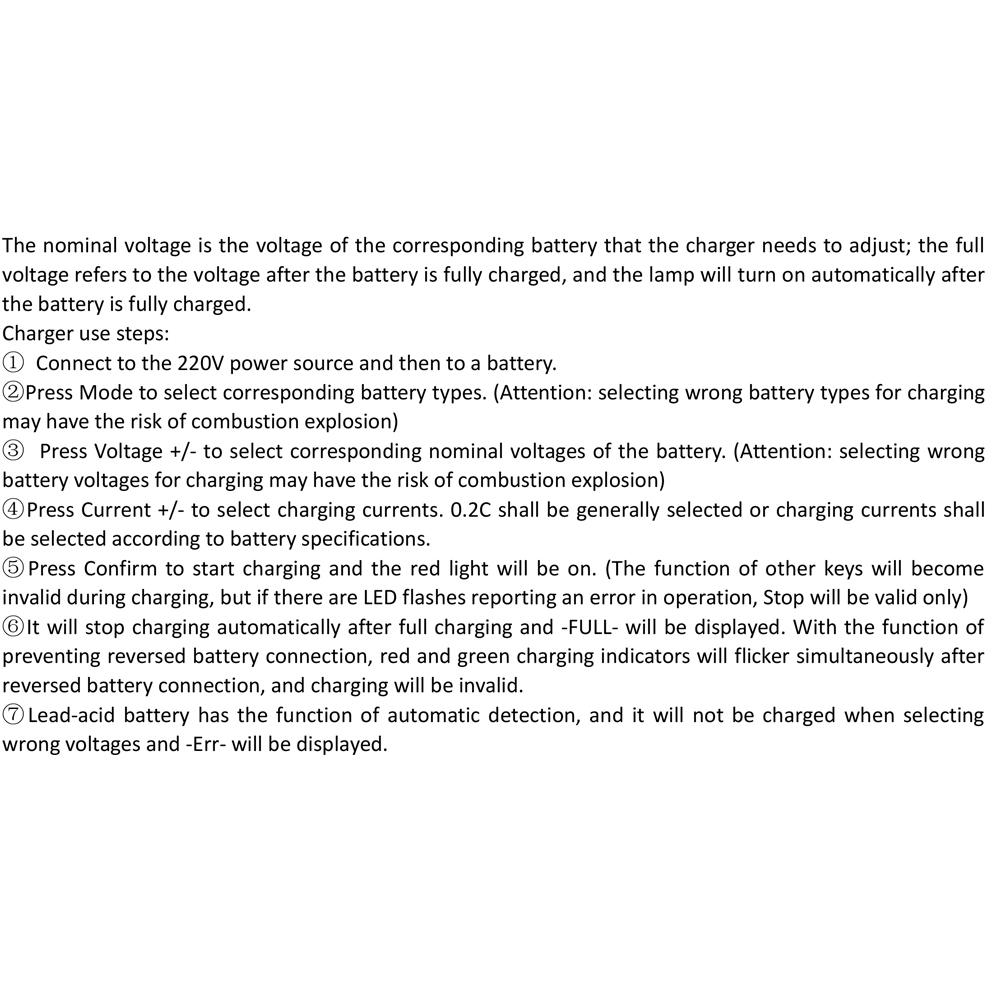

The nominal voltage is the voltage of the corresponding battery that the charger needs to adjust; the full voltage refers to the voltage after the battery is fully charged, and the lamp will turn on automatically after the battery is fully charged.

Charger use steps:

① Connect to the 220V power source and then to a battery.

②Press Mode to select corresponding battery types. (Attention: selecting wrong battery types for charging may have the risk of combustion explosion)

③ Press Voltage +/- to select corresponding nominal voltages of the battery. (Attention: selecting wrong battery voltages for charging may have the risk of combustion explosion)

④Press Current +/- to select charging currents. 0.2C shall be generally selected or charging currents shall be selected according to battery specifications.

⑤Press Confirm to start charging and the red light will be on. (The function of other keys will become invalid during charging, but if there are LED flashes reporting an error in operation, Stop will be valid only)

⑥It will stop charging automatically after full charging and -FULL- will be displayed. With the function of preventing reversed battery connection, red and green charging indicators will flicker simultaneously after reversed battery connection, and charging will be invalid.

⑦Lead-acid battery has the function of automatic detection, and it will not be charged when selecting wrong voltages and -Err- will be displayed.

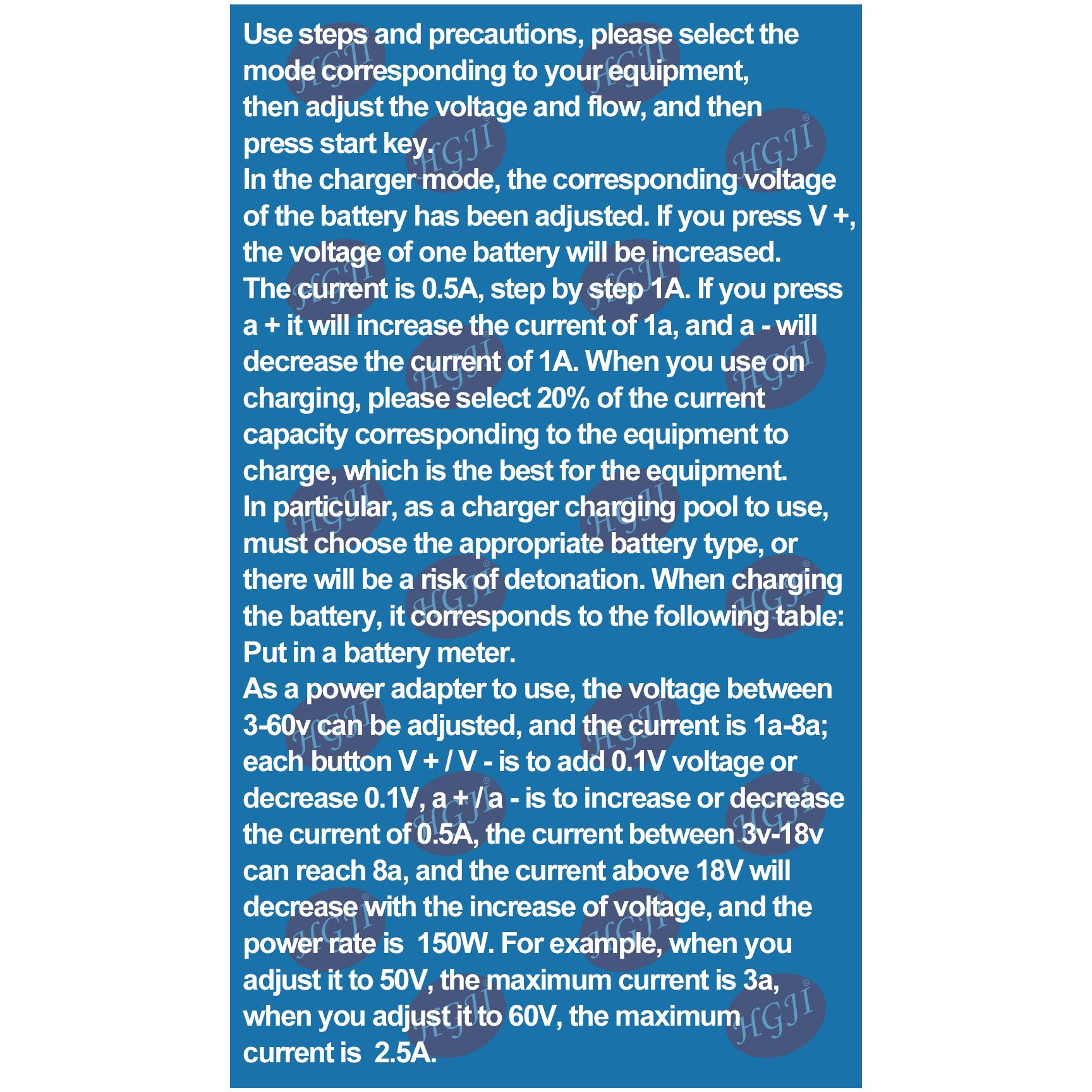

2. As a power adapter to be used. you should  turn on the power supply first,Then adjust the voltage and current before connecting to the equipment.

①Multifunction power supply for digital display: it can both adjust the voltage and the current. with the adjustable voltage of 3V-60V and the adjustable current of 0.5-8A 150W.Finally  starts output after pressing Confirm.

②As a power adapter to be used.Please load your equipment power watt should be 30% less than the power supply at least.Such as your equipment usually use 48V2.5A,

Use this adapter should be adjusted to 48v3a, and then connected to the device.

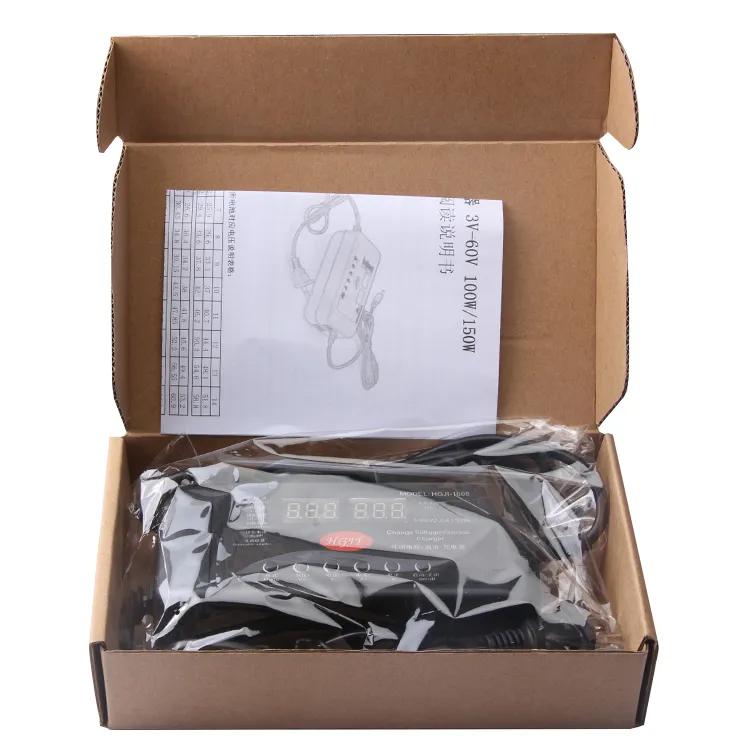

Packing List:

1 x Adjustable Power Adapter Charger 3V-60V 150W With Display Screen Charger 2.8V14V28V36V48V56V60V Li-ion battery Charger
