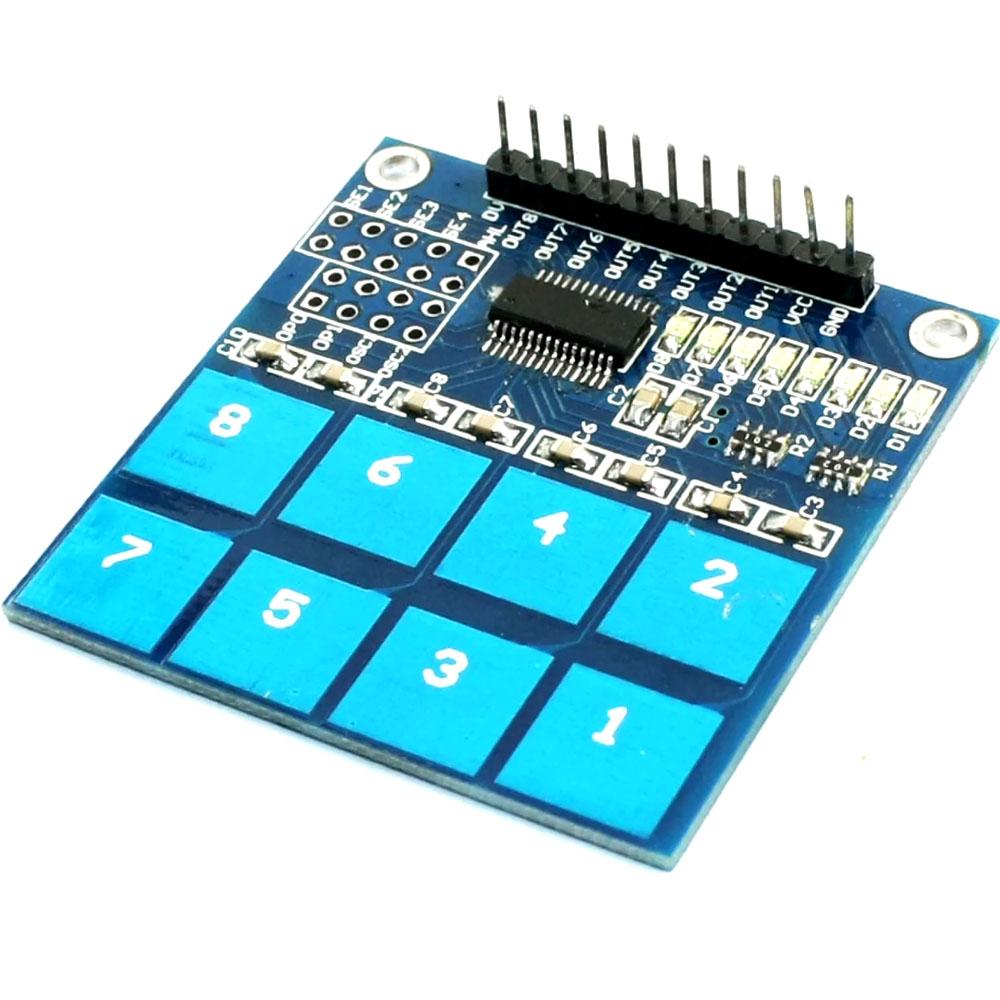

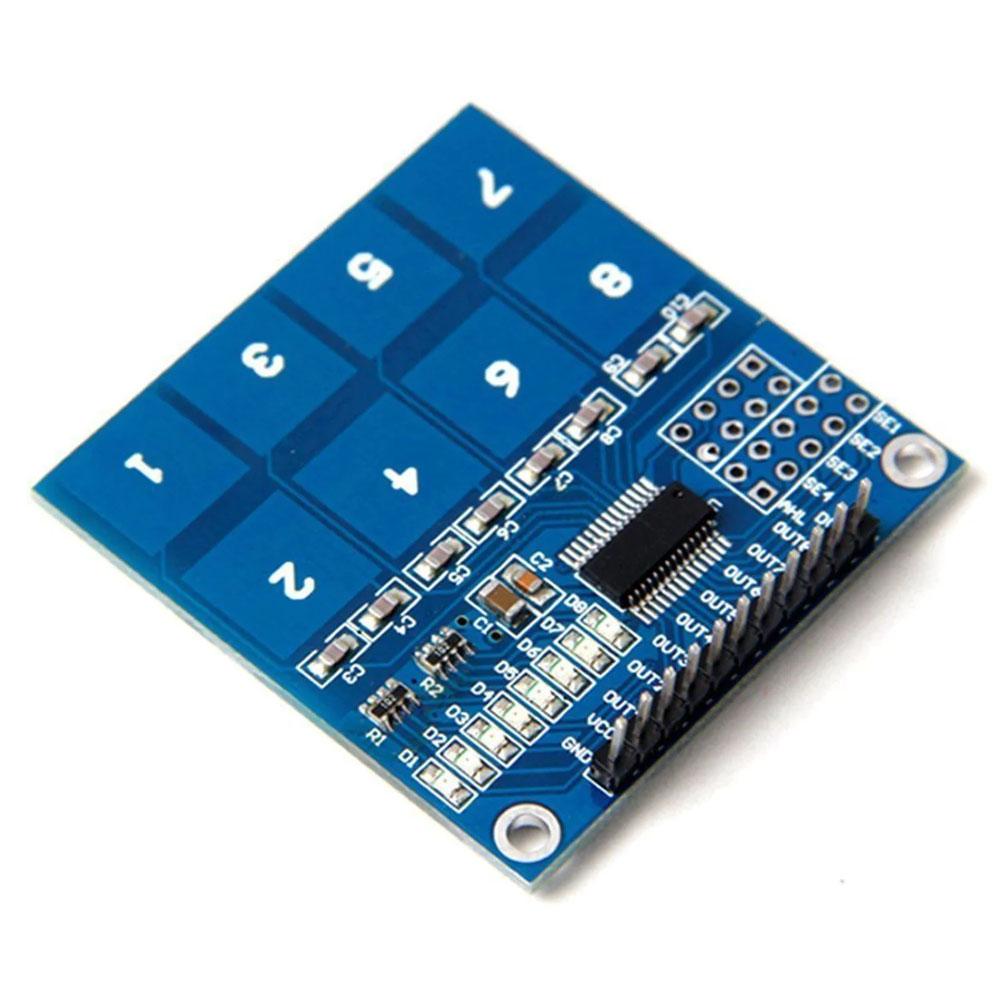

8 Way Capacitive Touch Sensor

Specifications:

Power supply for 2.4 ~ 5.5V DC
Typical high Voh = 0.8VCC
Typical Vol = 0.3VCC
Output Sink Current: 8mA
Output pin pull-up current: 4mA
Response time (Low Power mode): 220mS
Response time: 60mS

SKU: RDNA-53.8

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹188.80 (Inc. GST)
₹160.00 (+18% GST Extra)

Only 1 left in stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

8 Channel Capacitive Touch Sesnor Module uses the touch-sensing IC TTP226 to sense the touch input thus making it easy to add capacitive touch input to your project. The touching detection IC is designed for replacing traditional direct button key with diverse pad size. The module has 8 touch pads.

Eight Channel Capacitive Touch Sensor Module is easy to interface. It can be used along with a microcontroller or an arduino or even without one. When a capacitive load (such as a human hand) is in close proximity to the sense-pad, the sensor detects the change in capacitance and activates the switch. Custom sense-pads can be made from nearly any conductive material and these sensors can detect touch through thin layers of non-conductive materials such as glass, plastic, fabric or even wood.

You may also look for:

Features:

On-board TTP226 capacitive touch induction IC.
On-board 8-way level indicator.
Adjustable output mode, key output mode, longest time and fast/low power output.
Low power selection.
Fixture screw-holes for easy positioning & installation.

Package Includes:
