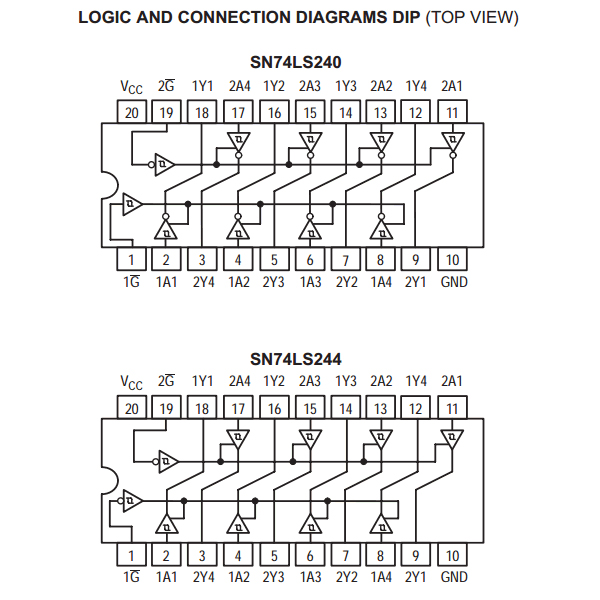

74LS244 IC – Octal Buffer/Line Driver with Tri-State Output IC (74244 IC)

Features:-

Supply Voltage: 7V
3-STATE outputs drive bus lines directly
PNP inputs reduce DC loading on bus lines
Hysteresis at data inputs improves noise margins
Typical IOL (sink current) 24 mA
Typical IOH (source current) −15 mA
Typical propagation delay times Inverting 10.5 ns Noninverting 12 ns
Typical enable/disable time 18 ns
Typical power dissipation (enabled) Inverting 130 mW Noninverting 135 mW

SKU: RDNA-74.22

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹53.10 (Inc. GST)
₹45.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The 74LS244 buffers/line drivers are designed to improve both the performance and PC board density of 3-STATE buffers/ drivers employed as memory address drivers, clock drivers, and bus-oriented transmitters/receivers. Featuring 400 mV of hysteresis at each low current PNP data line input, they provide improved noise rejection and high fan-out outputs and can be used to drive terminated lines down to 133Ω.

Download Datasheet
