CNC 3018 Engraving Carving Milling Machine DIY Kit Without Laser (Unassembled)

19,588.00 (Including GST)

16,600.00 ( + 2,988.00 GST)

Available on backorder

Purchase this product now and earn 166 Points!

Compare
Category:

Share this product

Description

This DIY CNC engraving machine is especial designed for DIY fun study and research with professional GRBL control software giving you extreme portable experience.

This 2-in-1 CNC engraving machine features the function of engraving carving milling. This carving machine can be engraved plastic wood acrylic PVC pcb wood or the like material. Drill bit can not engrave hard metal jade or other hard materials.

Features:

Small and practical no problem for using on your desk. The control system is open source (technology that controls system is provided) for some players who like DIY. Desktop DIY mini CNC engraving machine for carving and more cost-effective than normal engraving machine.

Support our professional English design software for Win 7 XP Win 8 Win 10.300 x 180 x 45mm large working area

Control Software: GRBL (include ER11 chuck).Aluminum alloy and nylon material with fine workmanship show excellence in quality. Very interesting to install and use perfect gift for engraving DIY enthusiasts.

Wide application: can be used for print hand tools and industrial processing.

NOTE:

1. The machine is DIY Kit Need To Assemble By Yourself.

2. Materials can be engraved: wood bamboo paper plastics leather rubber horn sponge sheet or other flammable plastic (such as phone case mouse pencil namecard wallet plastic comb).

3. Materials cant be engraved: metals glass stone ceramics jewelry silver reflective material translucent transparent material.

Specifications:

  • Model: CNC3018Material: Aluminum + Nylon
  • Main Color: Silver
  • Power Supply: AC 110-240V
  • Output 24V 5.6A
  • Plug Type: US + EU
  • Supported OS: Windows XP / Win 7 / Win 8 / Win 10 (32/64)
  • Supported Formats: jpg / bmp / png
  • Communication Port: Micro USB

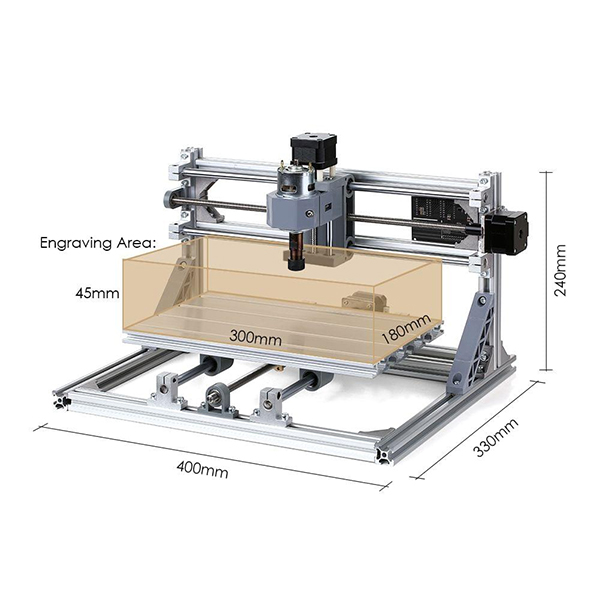

  • Engraving Area: 300 x 180 x 45mm
  • Frame Size: 400 x 330 x 240mm(Not include the motor protrusion part)
  • Table-board Size: 300 x 180mm
  • Spindle: 775 Spindle Motor 24V: 8000r/min
  • Spindle Chuck: ER11 Step Motor: Fuselage length 34mm Current 1.33A 12v.
  • Torque 0.25N/M
  • Drill Bits: Tip 0.1mm 20 degree diameter 3.175mm (Contains 10 pcs)
  • Software: GRBL Control
  • Engrave Mode: Image Engraving Text Carving Scanning Carving Contour Carving Pixel Carving
  • Can Not Carve Objects: All metals glass stone ceramics jewelry silver reflective material translucent transparent material.
  • Can Carve Objects: All wood bamboo paper plastics leather rubber horn sponge sheet etc.
  • Package Size: 45 * 23 * 17cm / 17.7 * 9.1 * 6.7i
  • Package Weight: 7283g / 16.1lb
  • Package List: (DIY Kit Need To Assemble By Yourself.)

1 * DIY CNC Engraving Machine Kit10 * Drill Bits1 * ER11 Spindle Chuck

Download user manual Here.

*Manual is designed for 1610 cnc but process remain same*
