Reed Switch 12mm 25.96 (Inc. GST)
22.00 (+18% GST Extra)

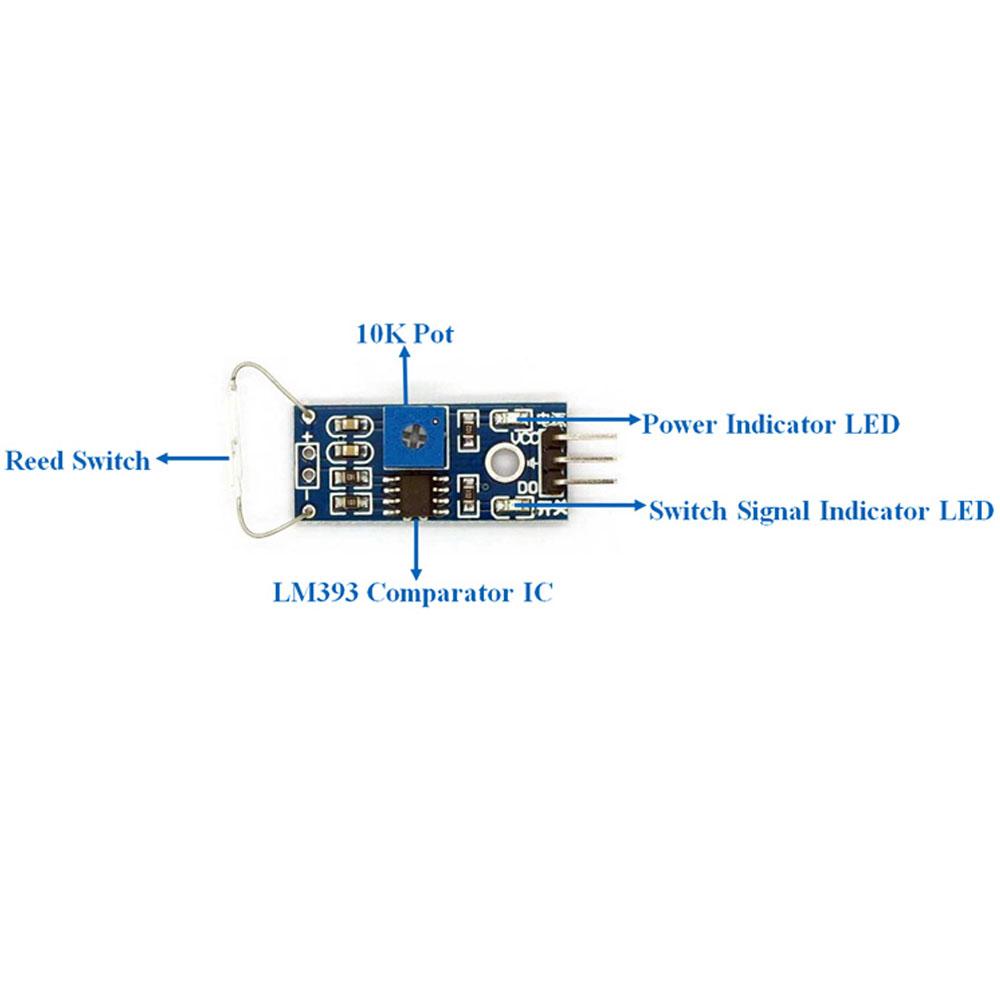

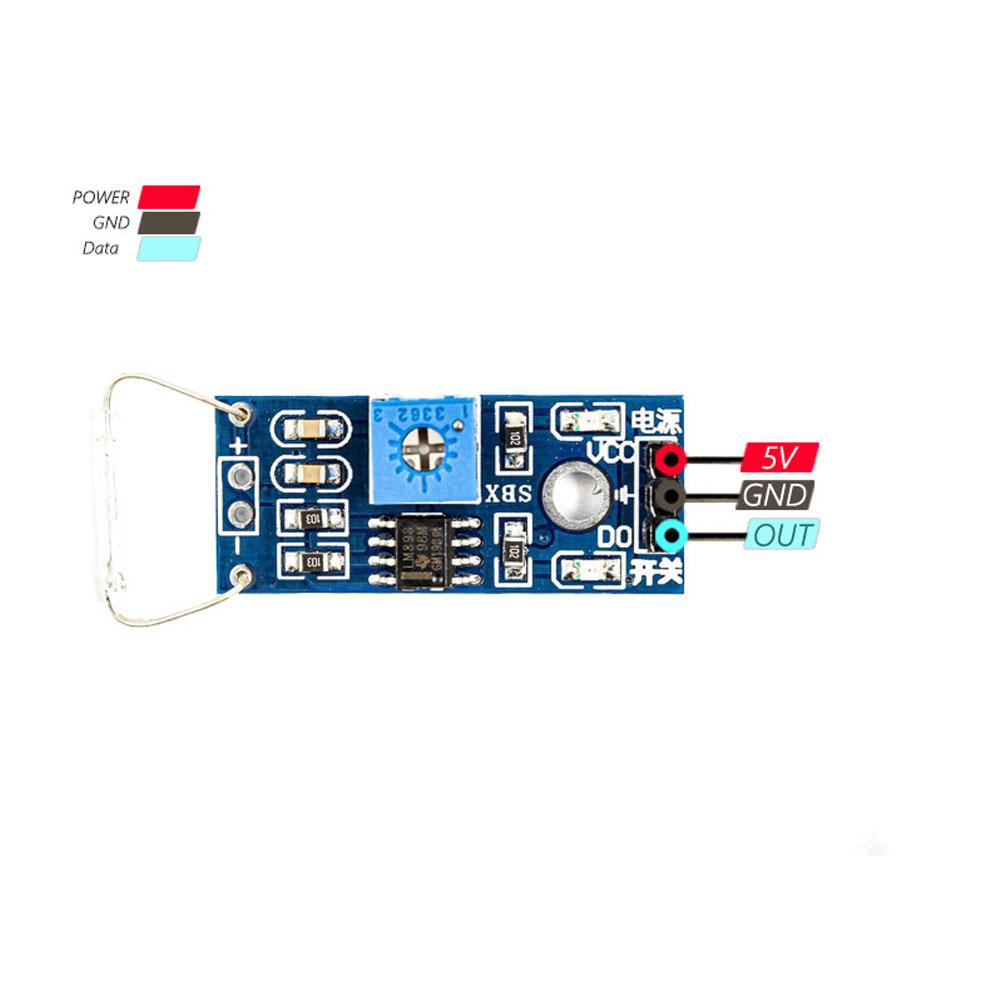

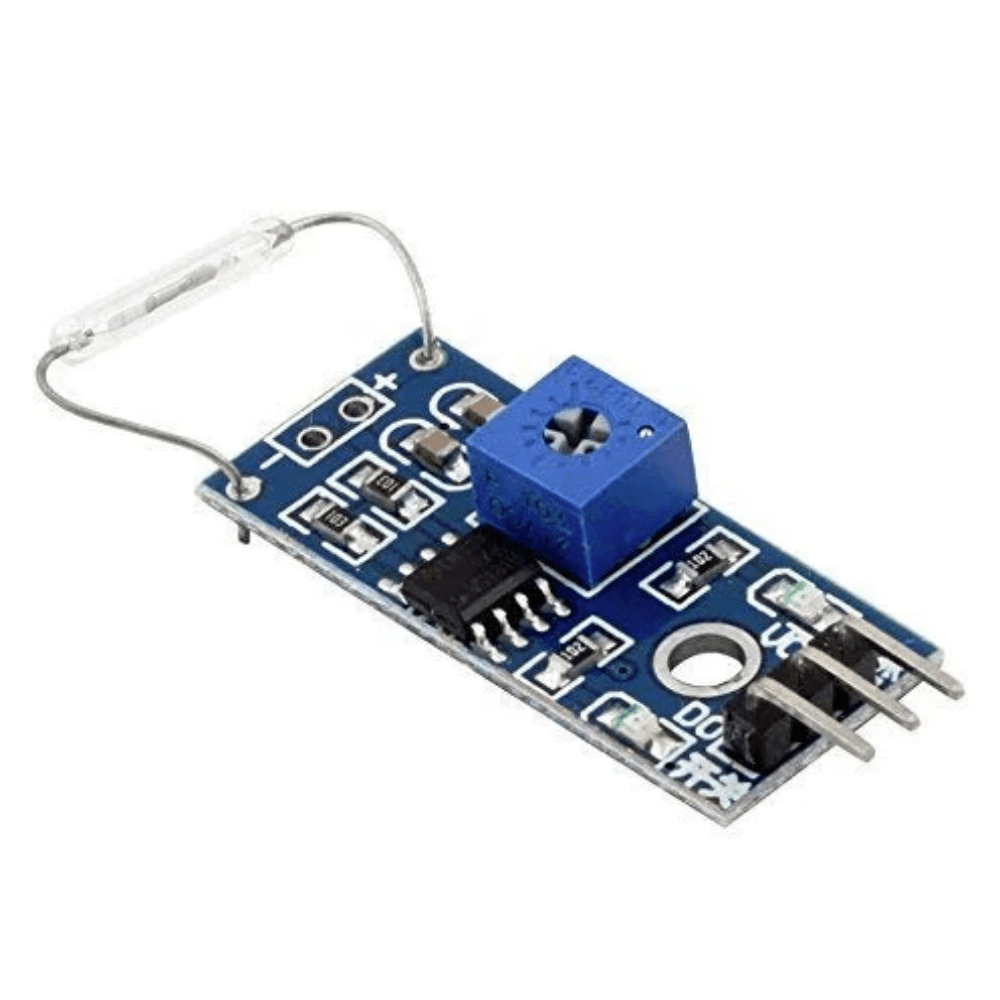

Magnetic Reed Switch Sensor

Specifications:

  • Max. Switching Voltage: 300 VDC
  • Min. Breakdown Voltage: 150 VDC
  • Max. Contact Rating:  10W
  • Max. Switching Current: 0.55 A
  • Max. Operate time:  0.45 ms
  • Operating Voltage: 3.3V to 5V DC
  • Output format: Digital switching output ( 0 and 1 )
  • LEDs indicating output and power
SKU: RDNA-453.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

57.82 (Inc. GST)
49.00 (+18% GST Extra)

In stock

In stock

20 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is Reed Switch 2 x 14 mm Magnetic Control Switch with Normally Open Contact. When the device is exposed to a magnetic field, the two ferrous pins inside the switch pull together and the switch closes. When the magnetic field is removed, The Reed Switch separates and the switch opens. This makes for a great non-contact switch. This switch can carry up to 1.2A. This small and easy-to-use module can be used in a variety of environmental conditions, it operates very reliably in the -50°C to +140°C temperature range.

You may also look for :

  1. Arduino Boards.
  2. Jumper Wire.
  3. Sensor Kits.
  4. BreadBoards.

Features:

    1. Small Module.
    2. Very easy to use.
    3. Direct connection in the circuit.
    4. Small Module.
    5. Very easy to use.
    6. Glass Length:  14mm
    7. Glass Diameter:  2mm
    8. Total Length:  45mm

Refer to the below Datasheet for more details.

Datasheet available here.

Package includes:

1 x Magnetic Reed Switch Sensor
