0 to 10 KPa Digital IIC XGZP6819D – CF SENSOR ORIGINAL

Specifications:

  • Ranges: 0 kPa – 10 kPa
  • 1.8V~5.5V power supply for IIC interface
  • Current consumption : <5uA(one time measurement)
  • Static Current: <100nA (25°C)
  • Temp. Compensated: 0°C~60℃
  • Temperature Accuracy: ±0.5°C@25℃
  • Gage Type
  • For Non-corrosive gas or air
SKU: RDNA-110.6

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

767.00 (Inc. GST)
650.00 (+18% GST Extra)

Only 2 left in stock

Only 2 left in stock

20 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

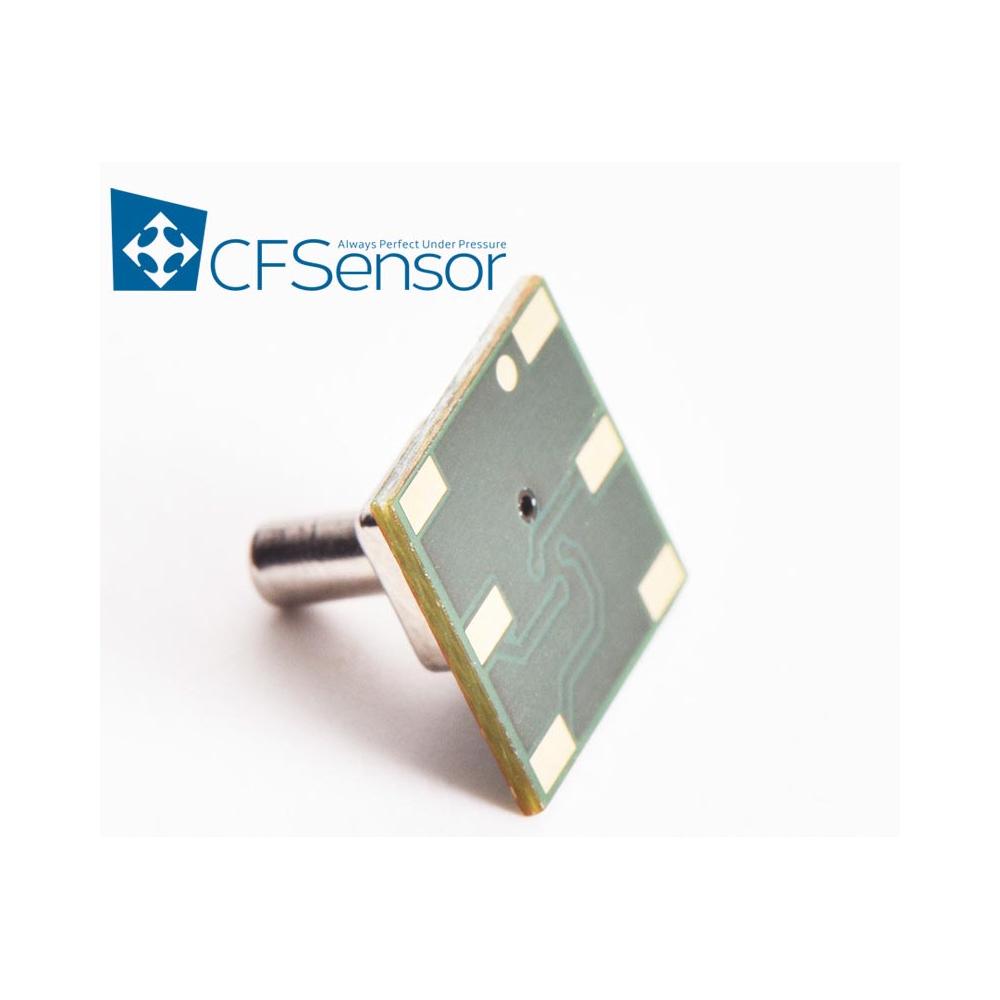

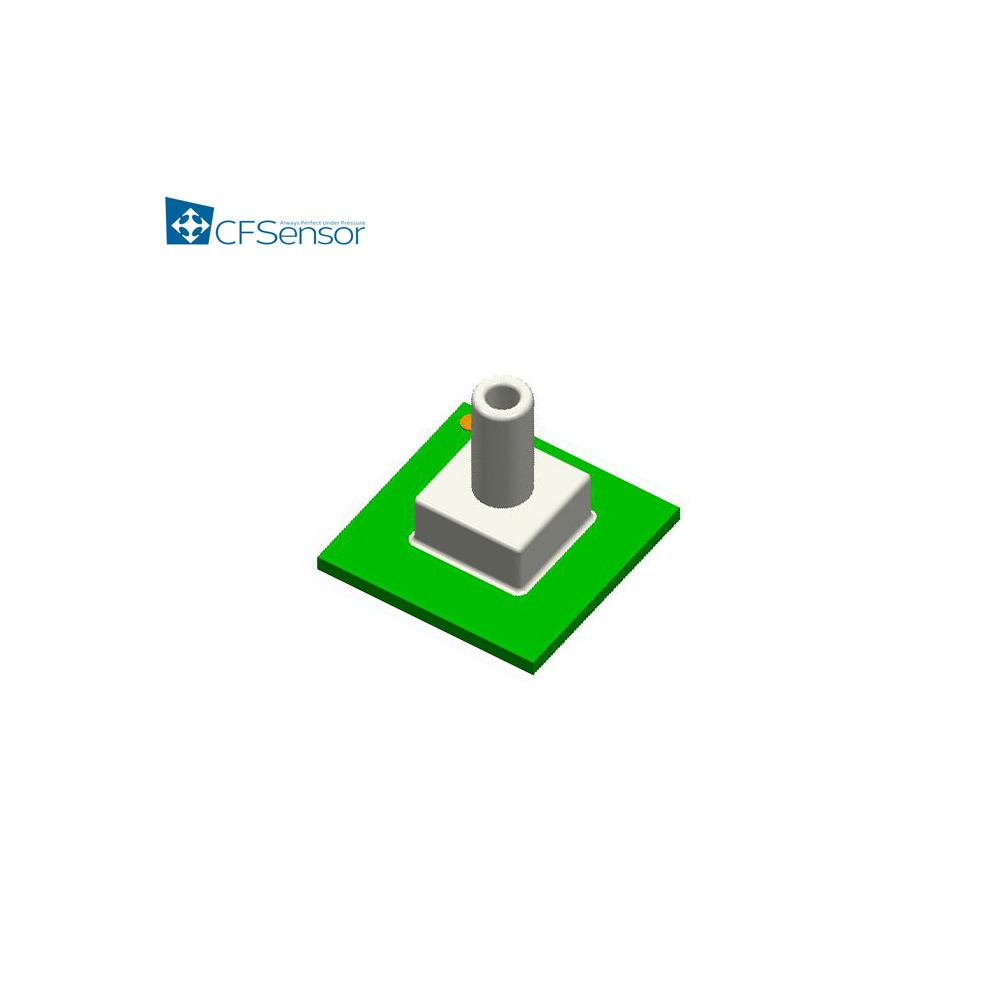

XGZP6819D is a perfect silicon pressure sensor offering a digital I2C interface for reading pressure over the specified full scale pressure span, as well as ambient temperature measurement. The XGZP6819D incorporates a silicon piezo resistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a small COB package.

The XGZP6819D is fully calibrated and temperature compensated for offset, sensitivity, temperature and non-linearity, so XGZP6819D pressure sensor satisfy the prefect repeatability, linearity, stability and sensibility, which can be applied directly in medical care & health, home appliances, consumer electronic, industry, automotive and other pneumatic devices etc.

XGZP6819D pressure sensor is for high volume application at an affordable cost but perfect performance.

Datasheet 0 to 10 KPa Digital IIC XGZP6819D – CF SENSOR ORIGINAL

Applications:

  • For Home appliance field, such as Dust collector, Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee Machine, Cleaner, Robotic, Vacuum Sealer, Sport Equipment etc.
  • For Medical and healthy equipment field, such as Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device etc.
  • For Other fields, such as watch, wearable device, air pump, HVAC and pneumatic device, automotive application and pressure meter etc.

   Package Includes:

     1 x 0 to 10 KPa Digital IIC XGZP6819D – CF SENSOR ORIGINAL
