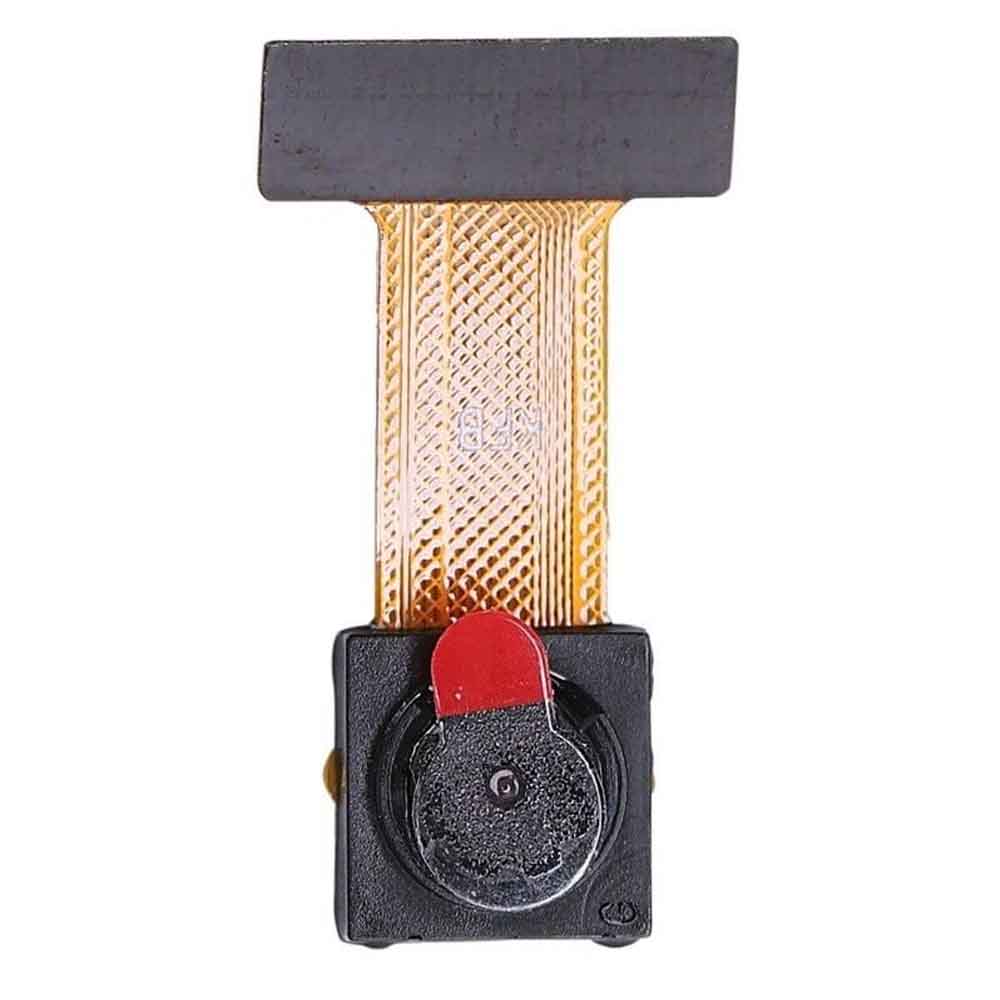

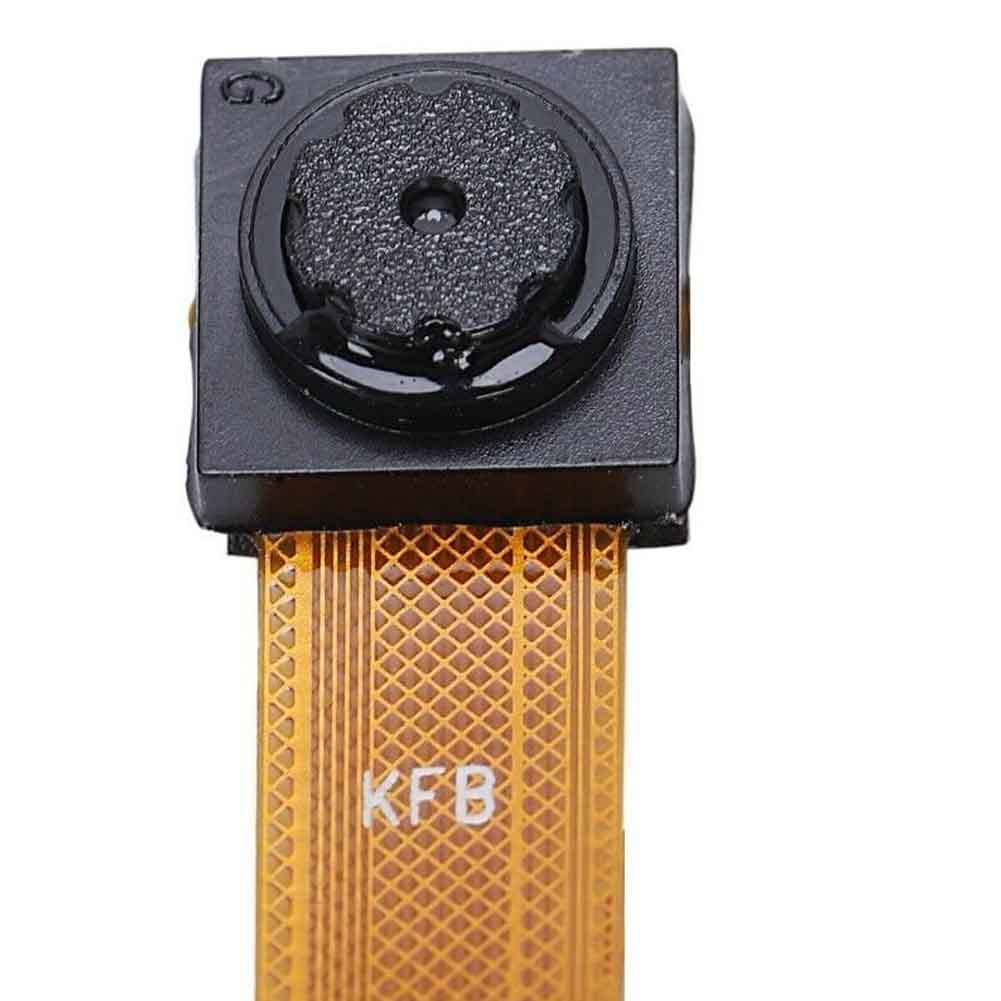

0.3MP OV7670 Camera Module with High Quality SCCB Connector

Specifications:

  • Operating voltage: 2.5 to 3.0V
  • Optical Size: 1.6 inch
  • Pixel Resolution: 0.3 MP
  • Angel of view: 67 degrees
  • Image Area: 2.36 x 1.76 mm
  • Active power: 60mW/15fps VGA
SKU: RDNA-12.8

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

398.84 (Inc. GST)
338.00 (+18% GST Extra)

Only 1 left in stock

Only 1 left in stock

19 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)‚Äč

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The 0.3MP OV7670 Camera Module with High-Quality SCCB Connector is a low voltage CMOS image sensor; that provides the full functionality of a single-chip VGA(Video Graphics Array) camera and image processor in a small footprint package.

The OV7670/OV7171 provides full-frame, sub-sampled or windowed 8-bit images in a wide range of formats; controlled through the Serial Camera Control Bus (SCCB) interface.This 0.3MP OV7670 Camera Module has an image array capable of operating at up to 30 frames per second (fps) in VGA with complete user control over image quality, formatting and output data transfer.

Features:

  • Automatic image control functions includes : Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC).
  • ISP includes noise reduction and defect correction.
  • High sensitivity for low-light operation.
  • Low operating voltage for embedded portable apps.
  • Supports scaling.
  • The standard SCCB interface is compatible with the I2C interface.

Package Includes:

1x 0.3MP OV7670 Camera Module with High Quality SCCB Connector

Datasheet available here.
