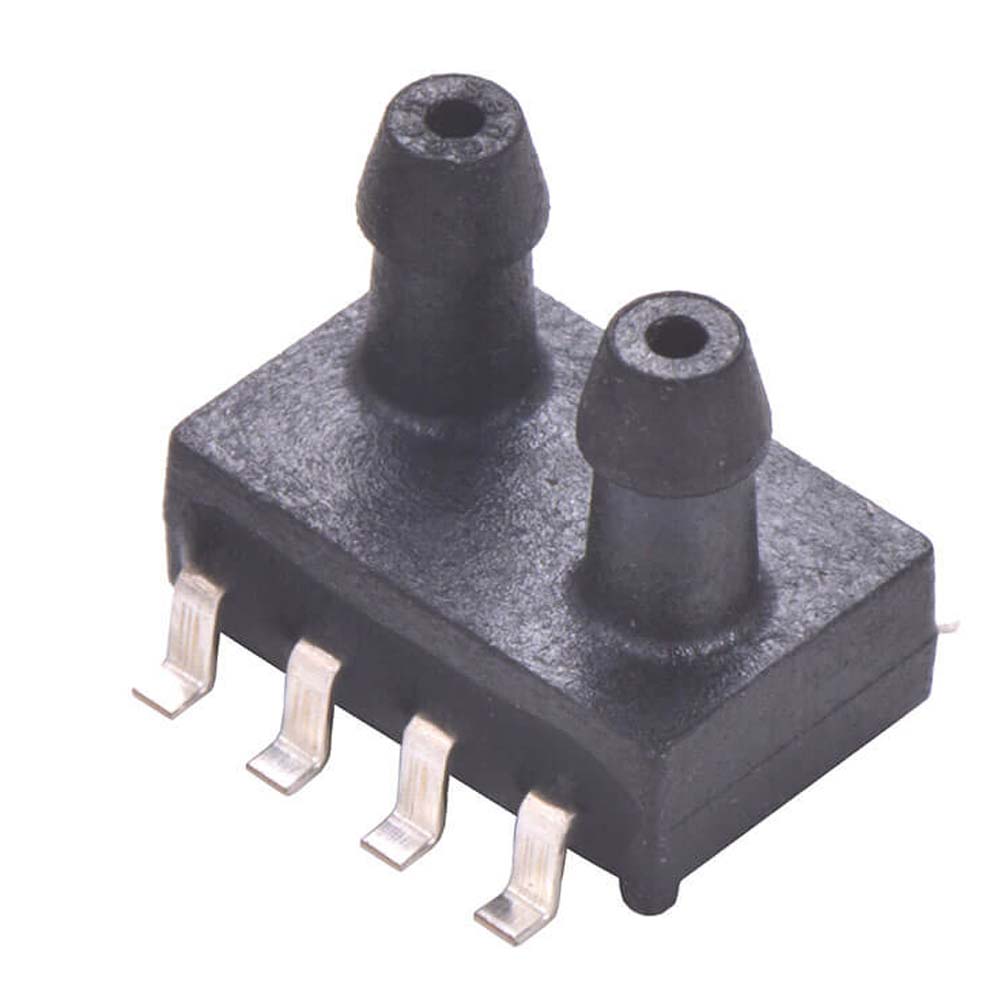

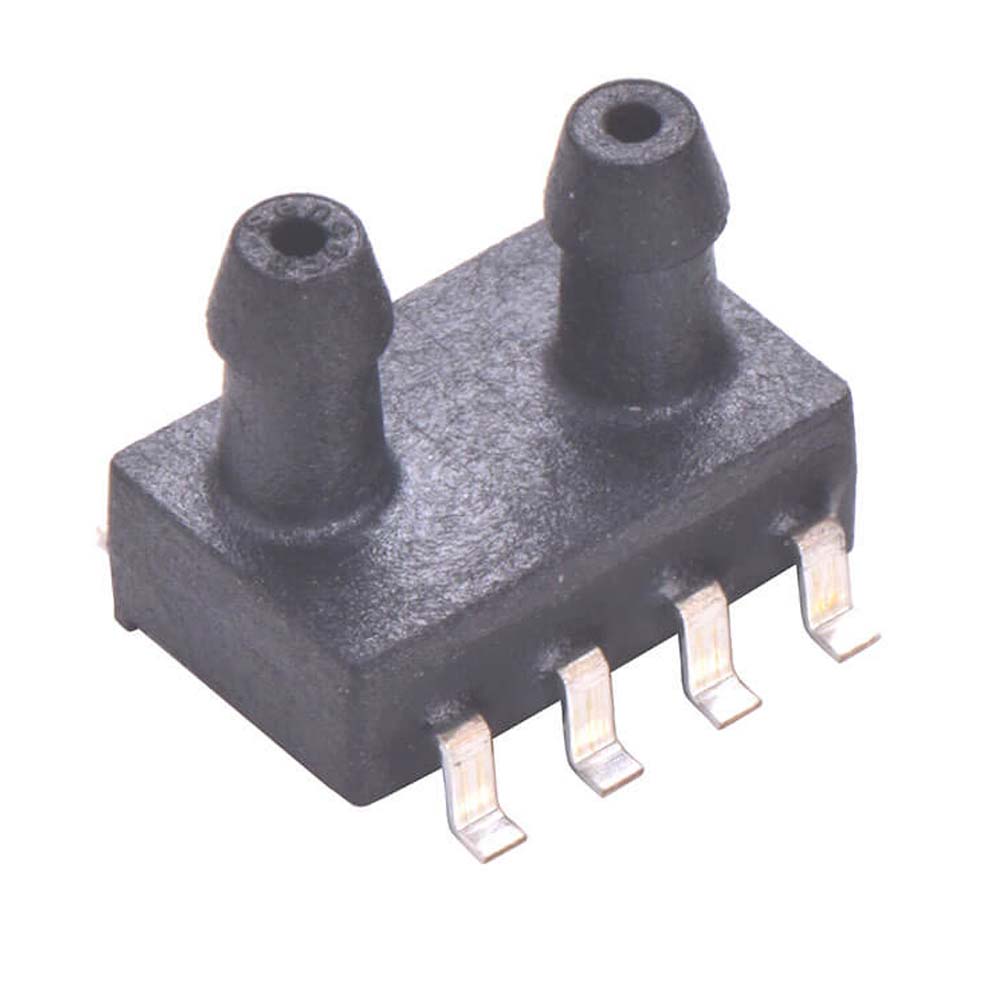

0-100 Analog Dual Nozzle XGZP6897A Pressure Sensor Module

1,367.62 (Including GST)

1,159.00 ( + 208.62 GST)

Specifications:

  • Ranges:-0-100
  • Analog Type
  • Optional 5V or 3.3V or 3V power supply
  • Differential or Gage Pressure Type
  • Calibrated Amplified Analog signal
  • Temp. Compensated:0℃~+60℃(32℉~+140℉)

In stock

Purchase this product now and earn 12 Points!

Compare
SKU: RDNA-363.10 Category: Tags: ,

Share this product

Description

XGZP6897A is a prefect silicon pressure sensor module offering a ratiometric analog interface for reading differential pressure over the specified full scale pressure span and temp.range.It incorporates a silicon piezoresistive pressure sensor chip and an interior signal-conditional Application Specific Integrated Circuit(ASIC) in a SOP8 package with two air vents, which can be mounted directly on a standard PCB.

The XGZP6897A is fully calibrated and temperature compensated for offset, sensitivity, temperature and non-linearity,so XGZP6897A pressure sensor module satisfy the prefect repeatability, linearity, stability and sensibility, which can be applied directly in medical equipment, fitness machine,home electronics,and other pneumatic devices etc.

XGZP6897A pressure sensor module is for high volume application at an affordable cost and perfect performance. Customized calibrations(working voltage,output voltage,and pressure range) are available.

Datasheet
